Power Transistor

Disconnect power transistor harness connector. Using ohmmeter, check power transistor continuity. See Fig 1 . Replace power transistor if results are not as specified.

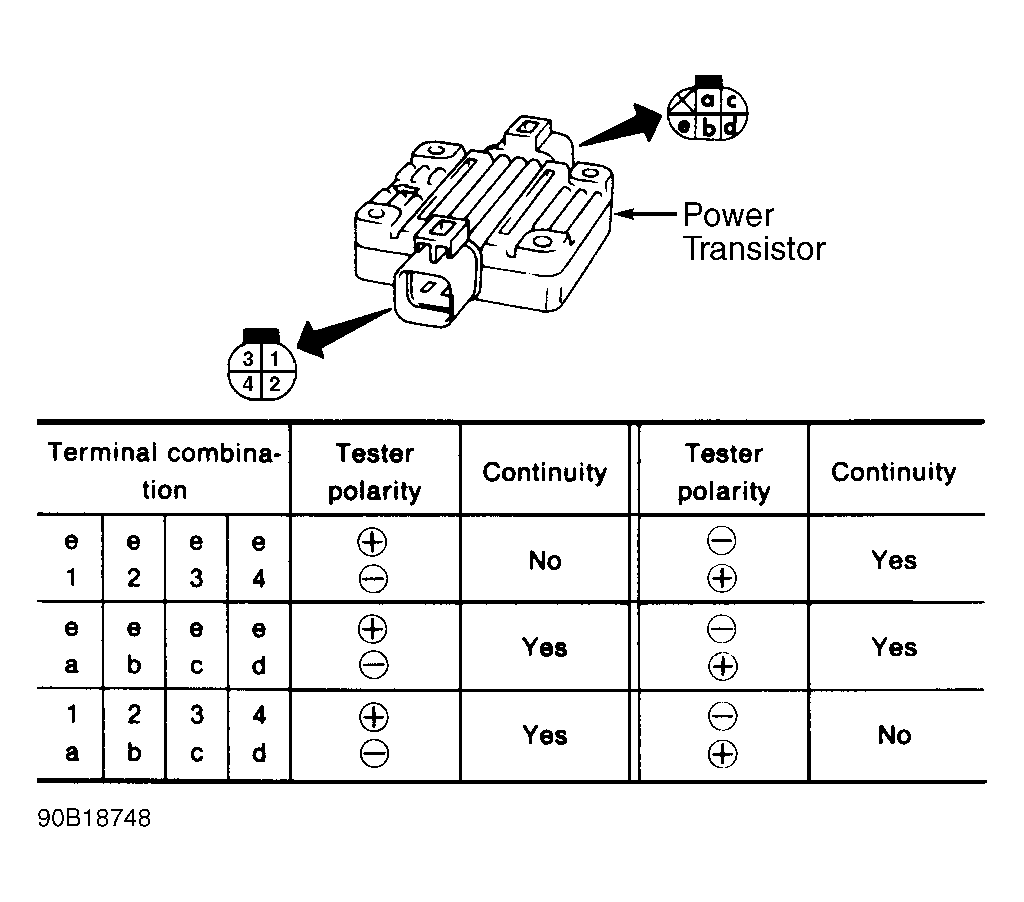

Fig 1: Checking Q45 Power Transistor Circuit

Courtesy of NISSAN MOTOR CORP., U.S.A.
