Component Locations

When attempting to locate components, refer to the following diagrams. See Fig 1 and Fig 2 .

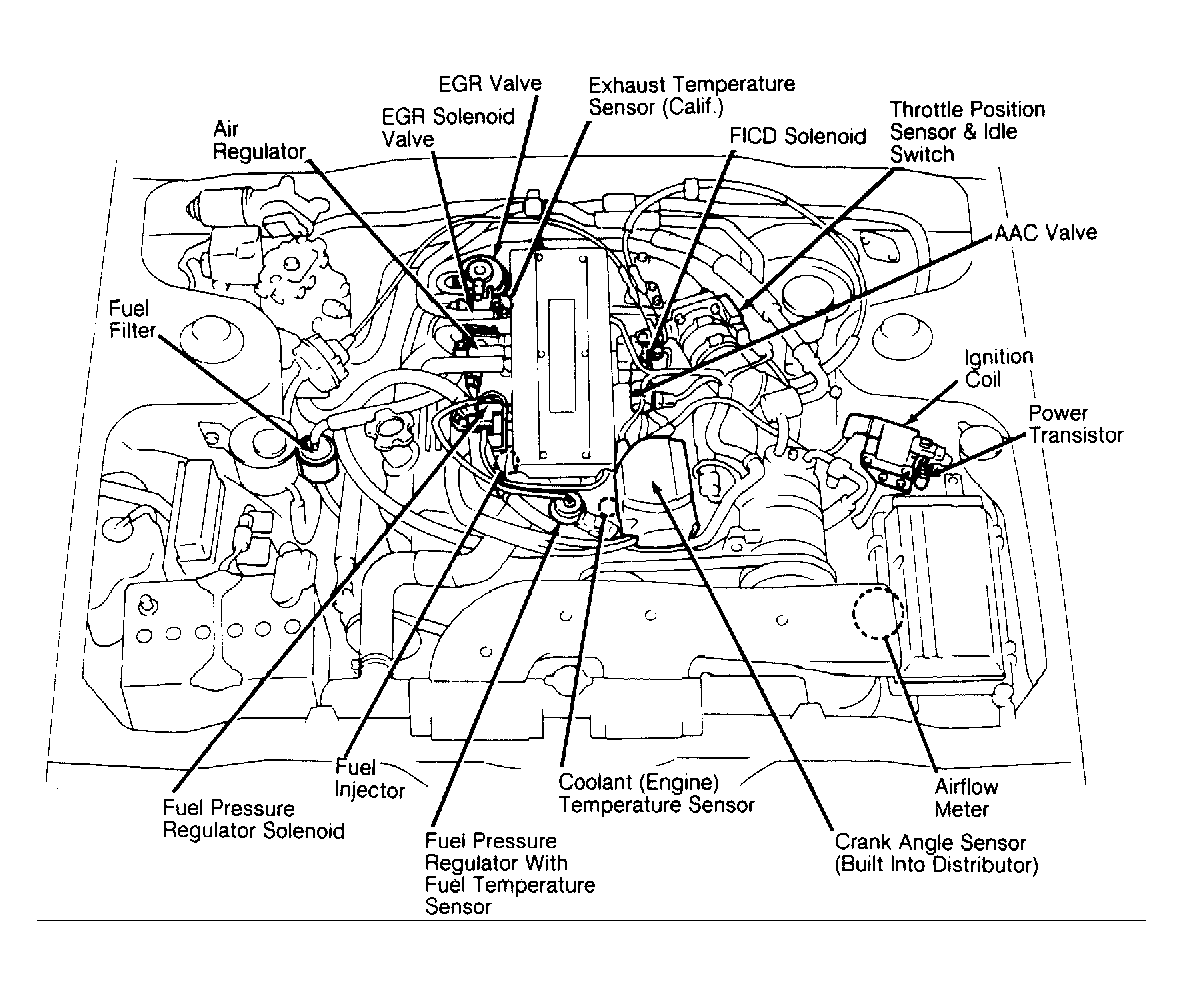

Fig 1: M30 Underhood Engine Performance Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

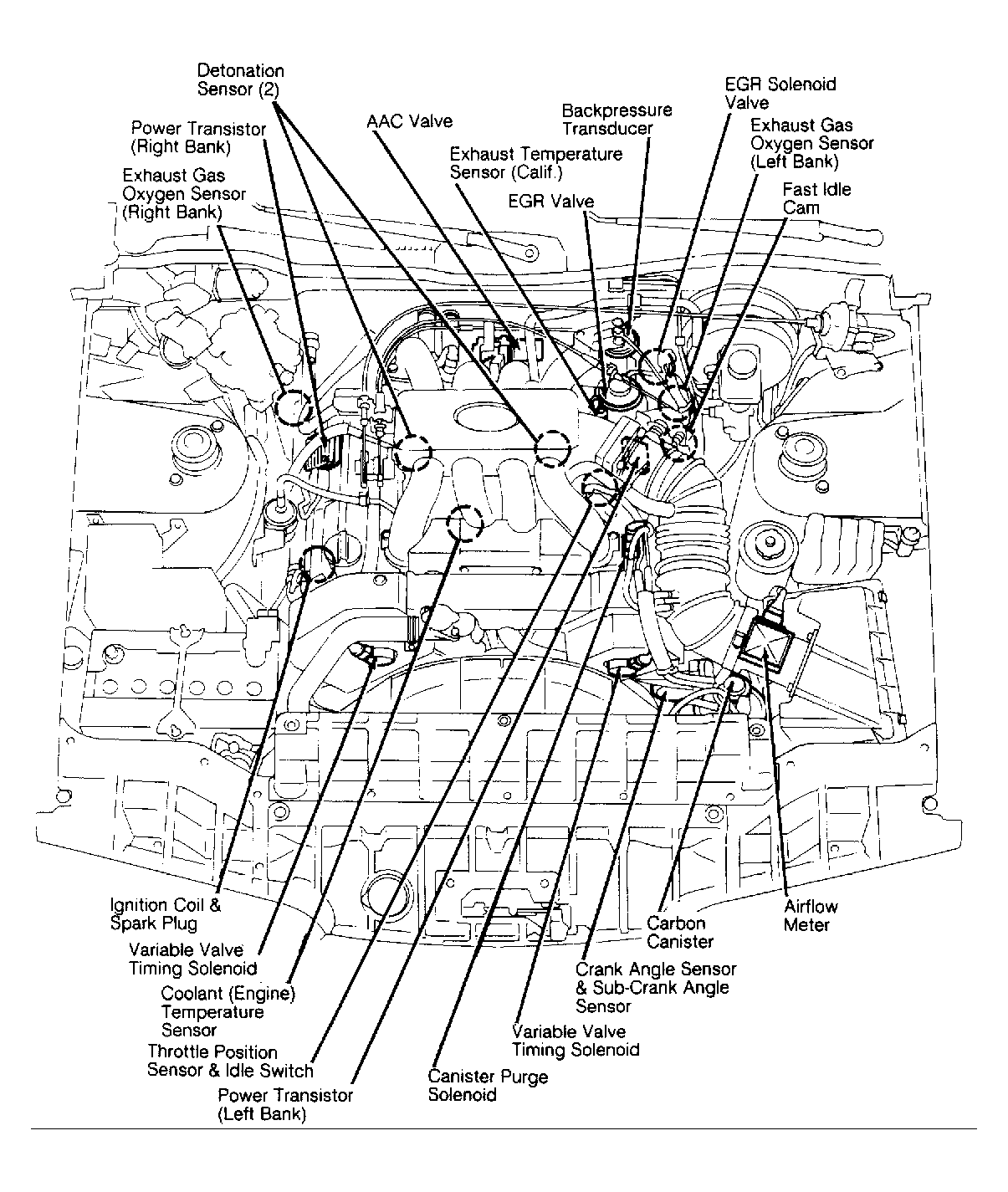

Fig 2: Q45 Underhood Engine Performance Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.
