Code 14: Vehicle Speed Sensor

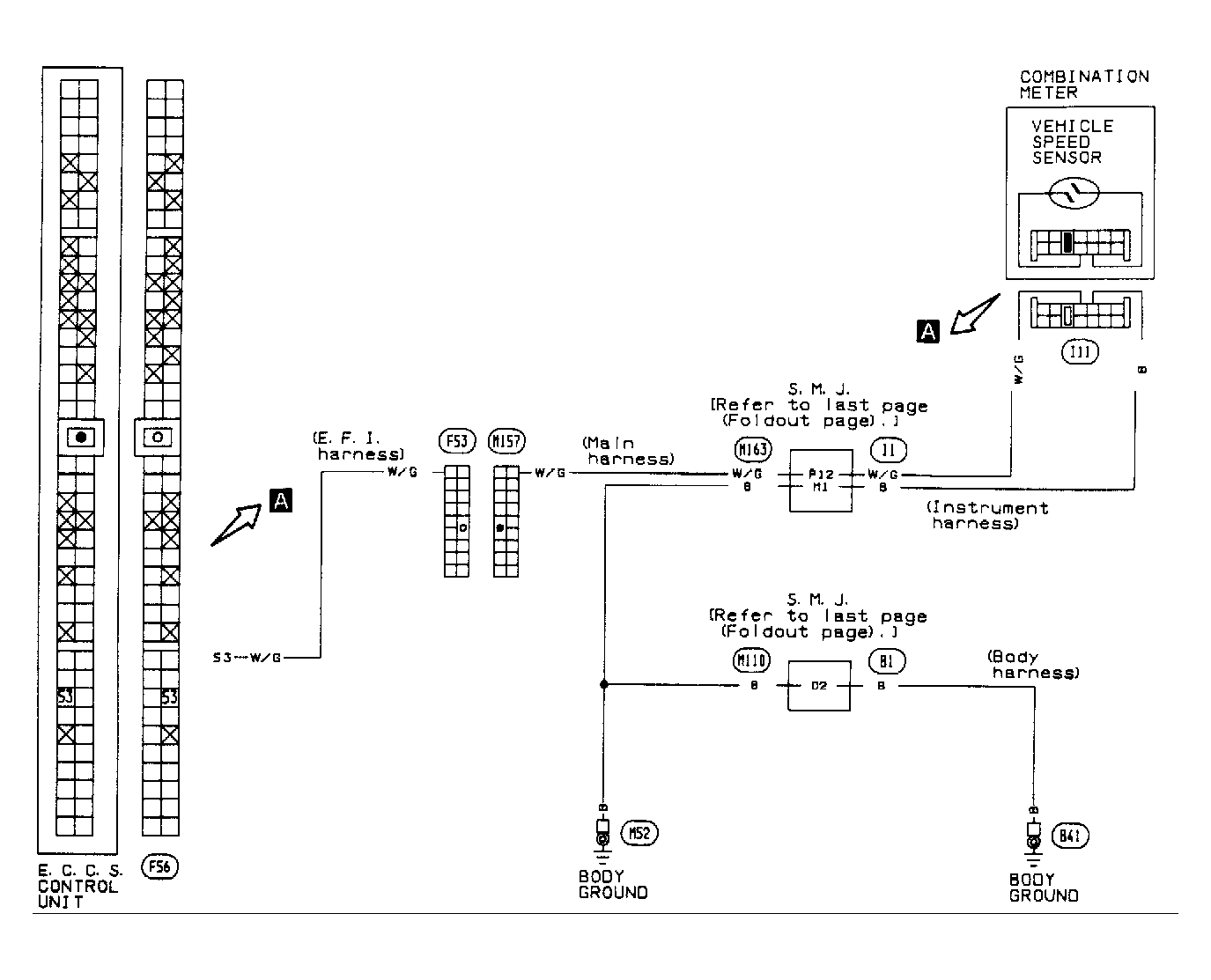

Fig 1: Code 14: Vehicle Speed Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

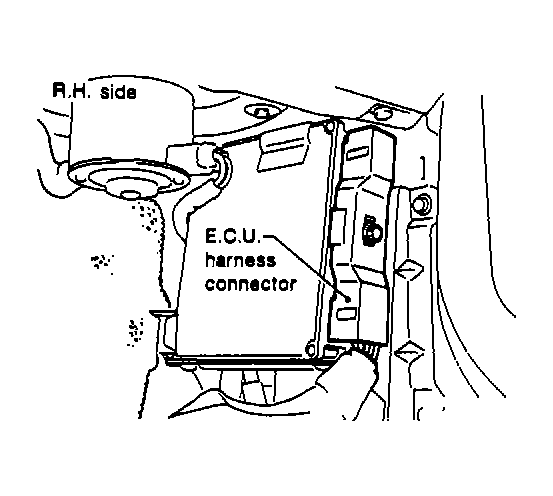

Fig 2: Code 14: ECU Harness Location
Courtesy of NISSAN MOTOR CO., U.S.A.

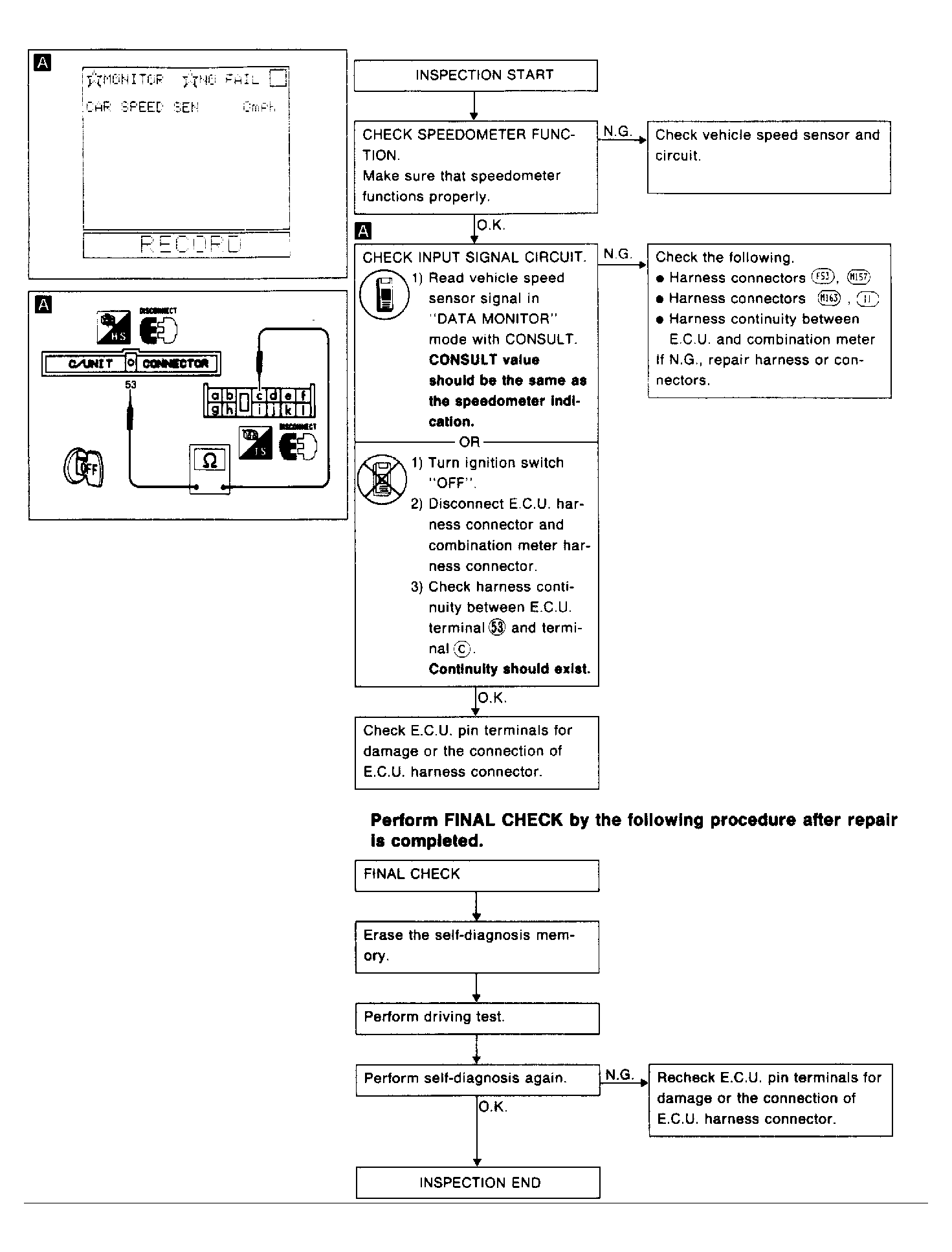

Fig 3: Code 14: Vehicle Speed Sensor Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
