Code 22: Fuel Pump

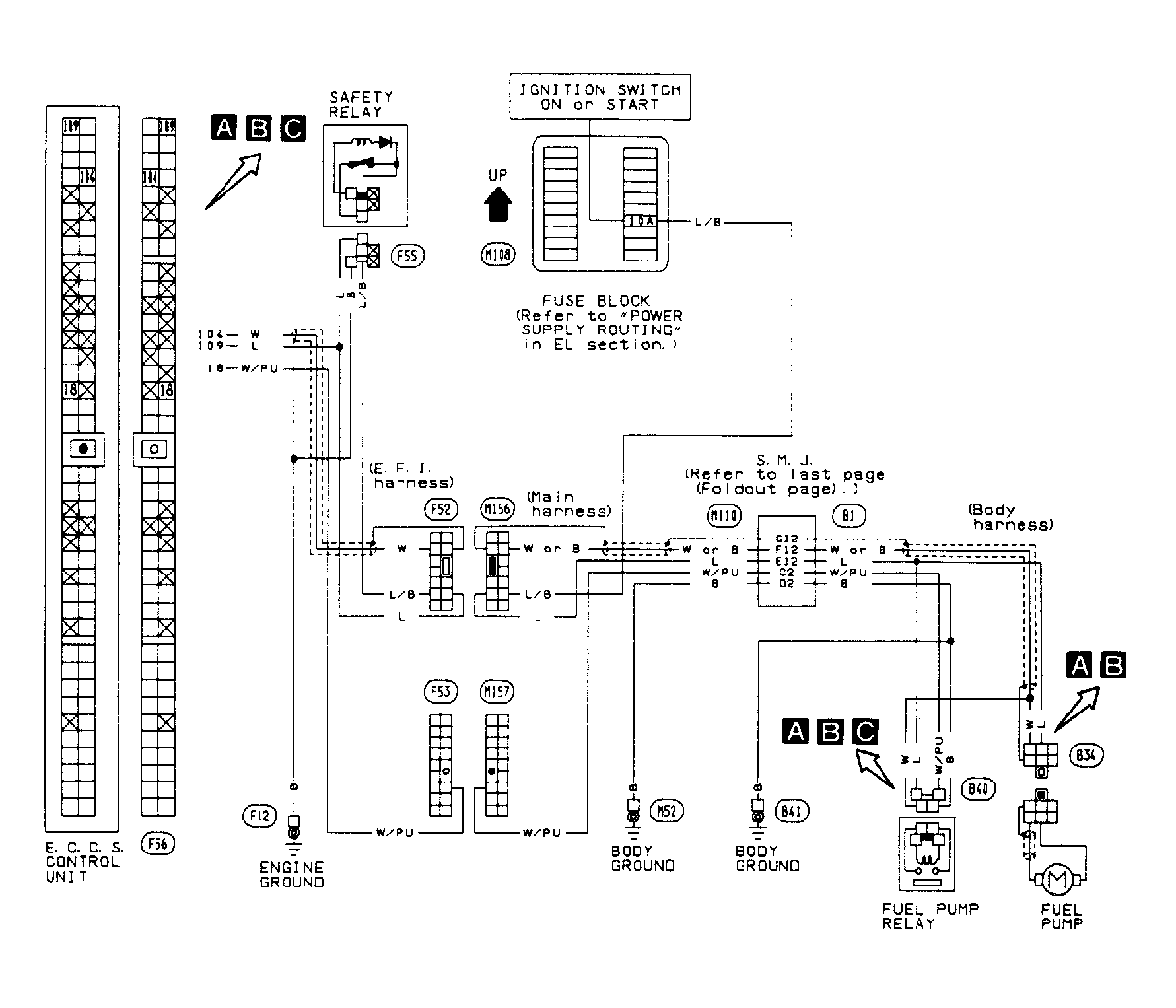

Fig 1: Code 22: Fuel Pump Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

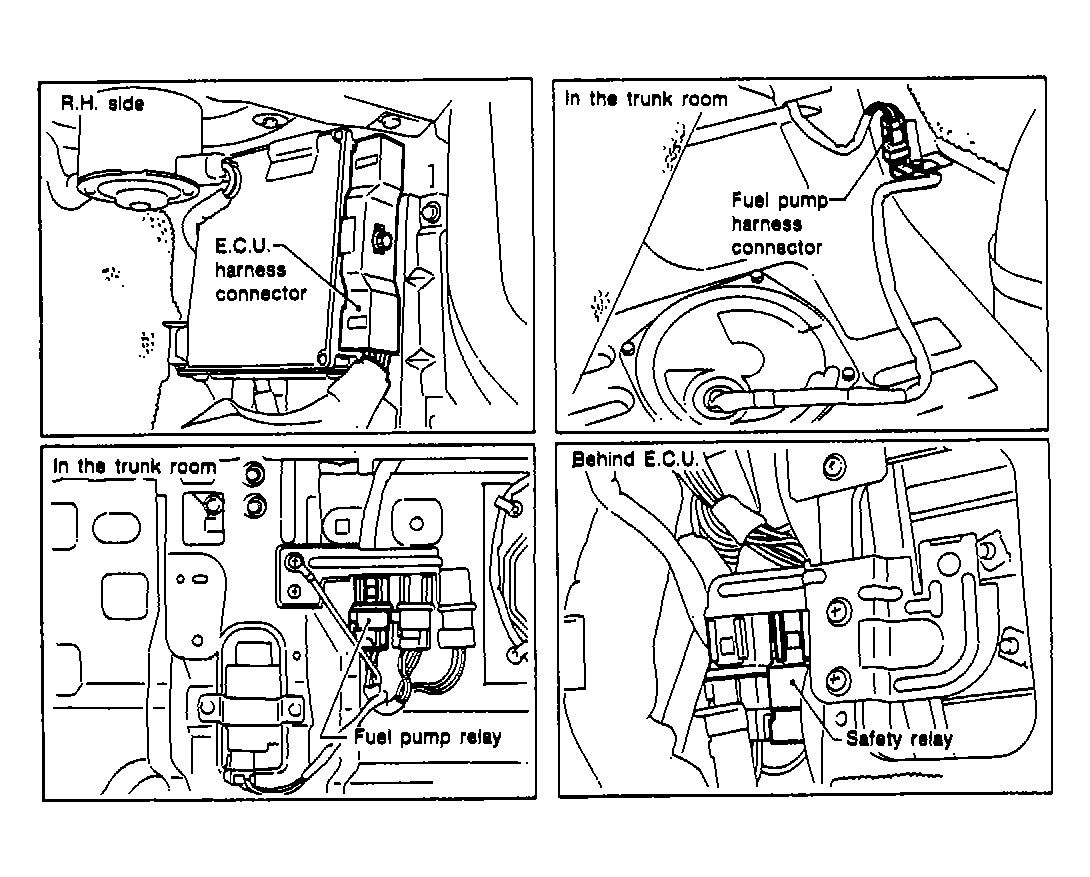

Fig 2: Code 22: Component Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

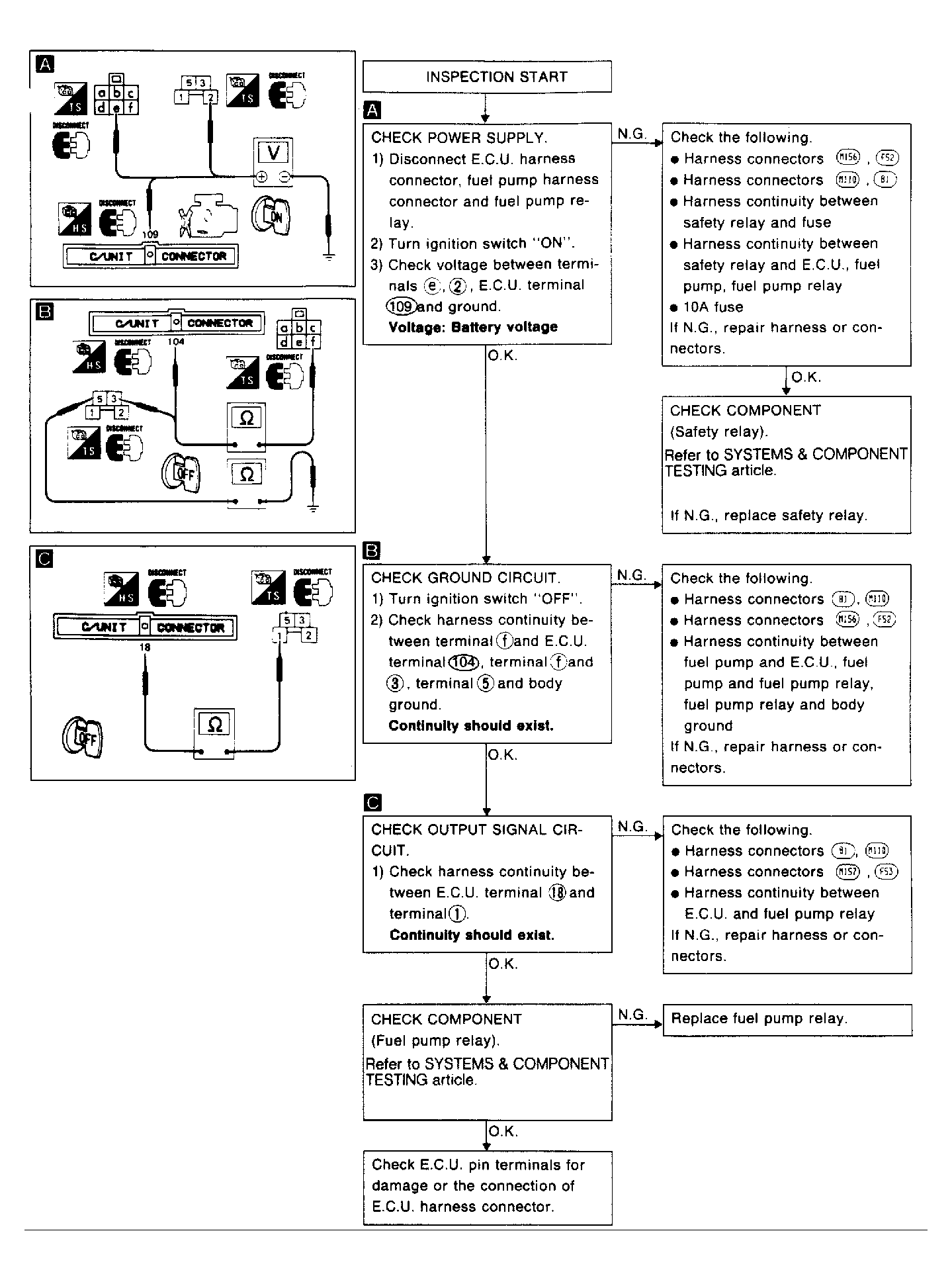

Fig 3: Code 22: Fuel Pump Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
