Code 43: Throttle Position Sensor

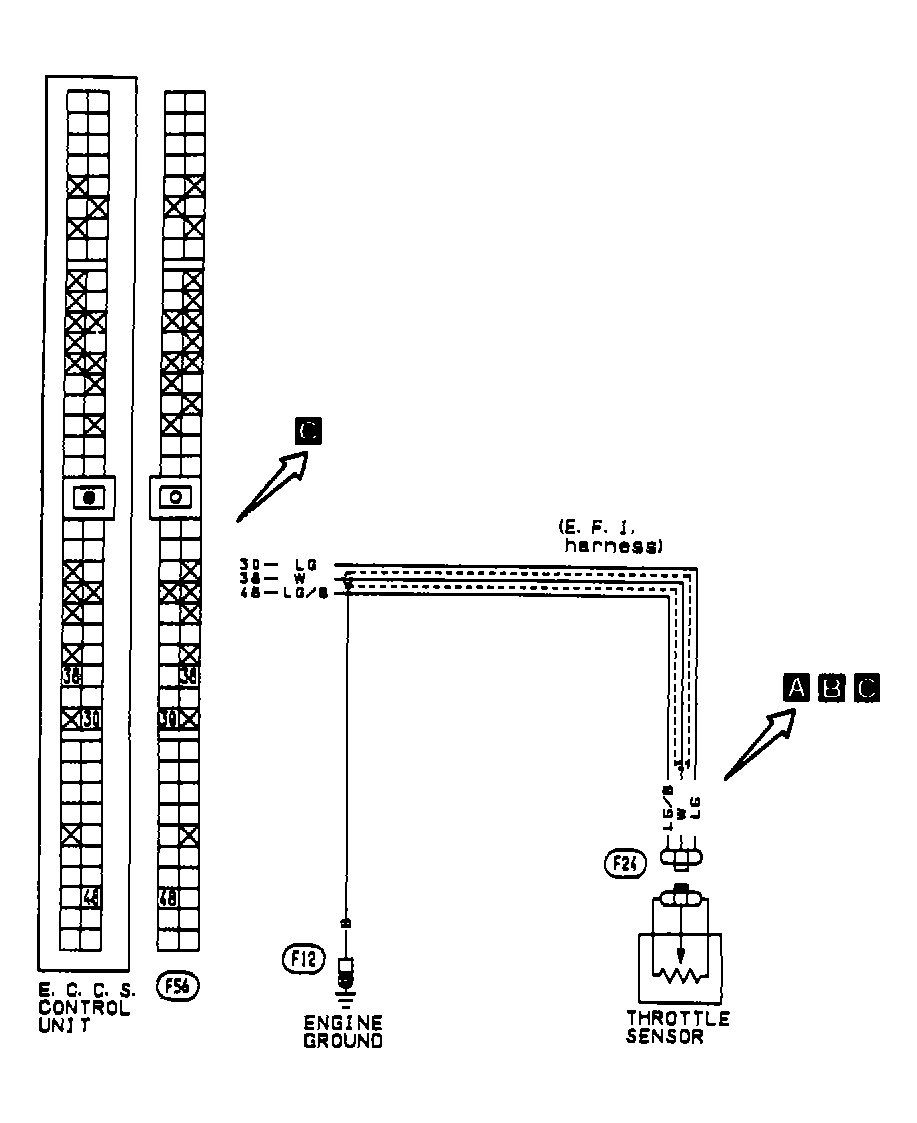

Fig 1: Code 43: TPS Circuit Diagram
G90B18680Courtesy of NISSAN MOTOR CO., U.S.A.

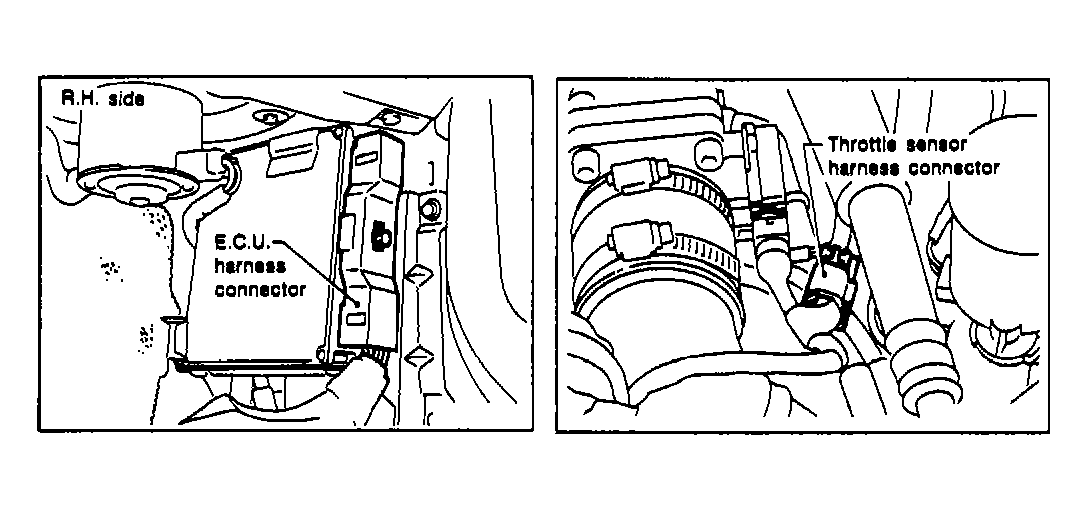

Fig 2: Code 43: Component Harness Connector Locations
G90C18681Courtesy of NISSAN MOTOR CO., U.S.A.

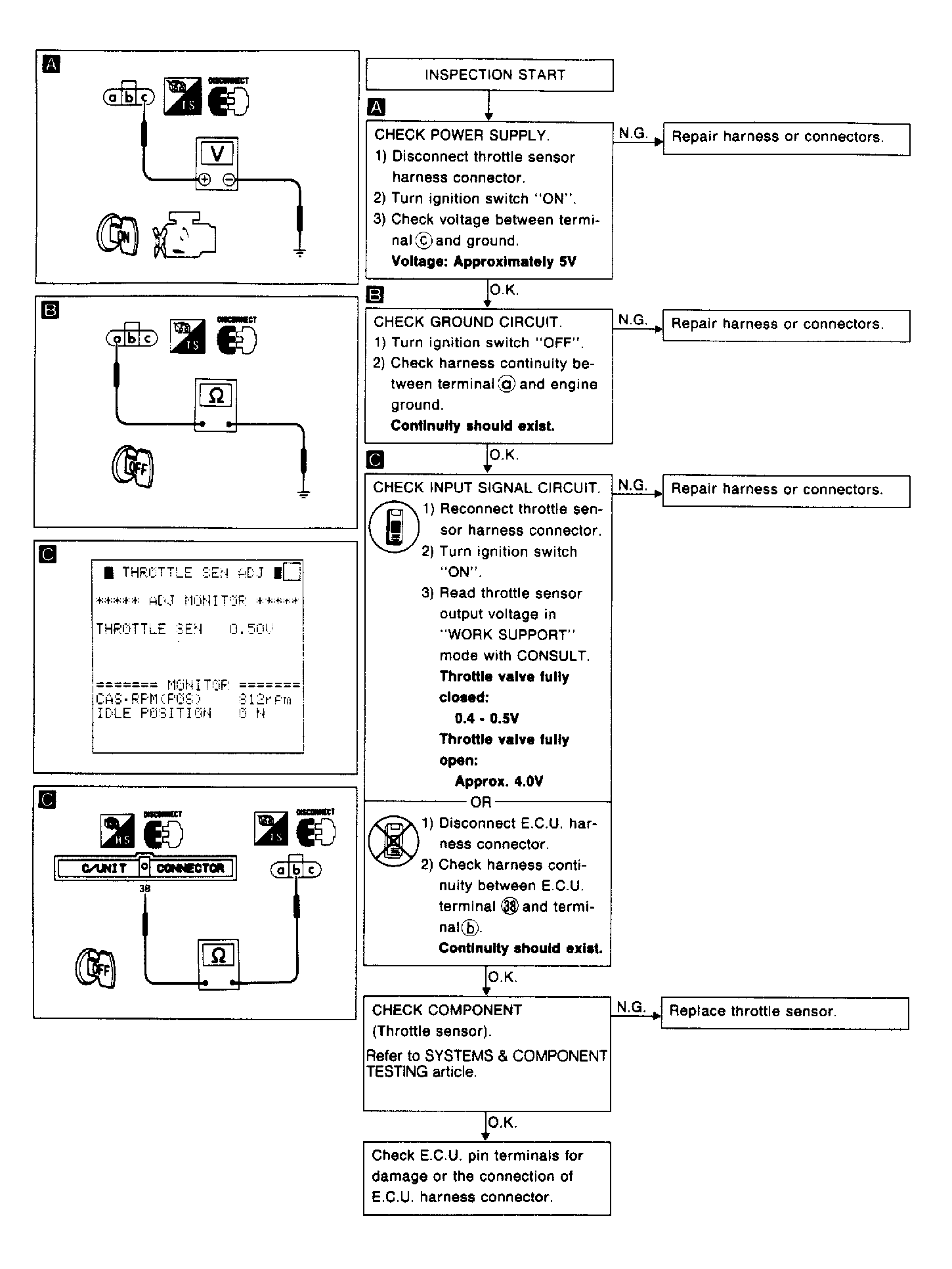

Fig 3: Code 43: TPS Flow Chart
G90D18682Courtesy of NISSAN MOTOR CO., U.S.A.
