Code 51: Injector Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 51: Injector Circuit

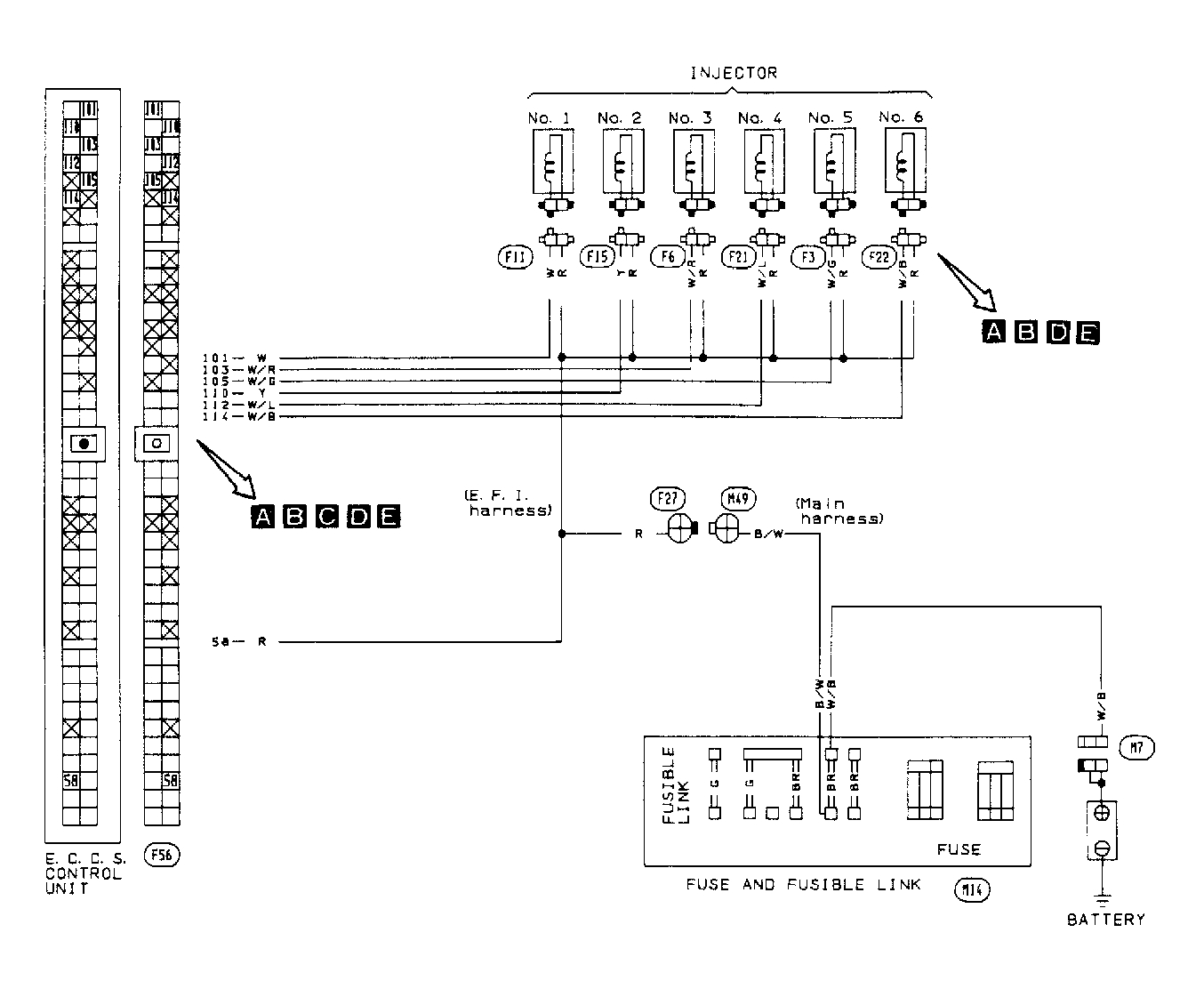

Fig 1: Code 51: Injector Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

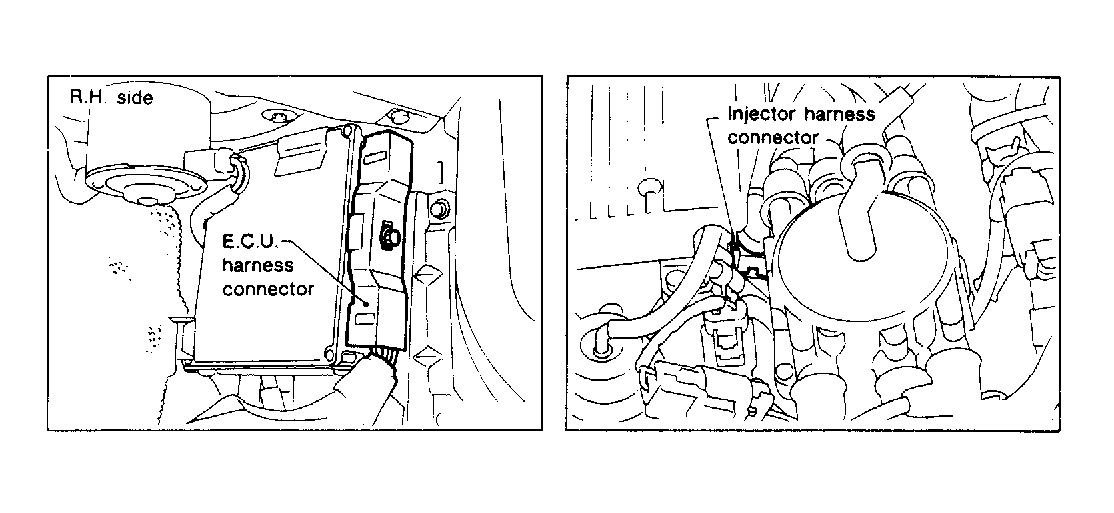

Fig 2: Code 51: Component Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

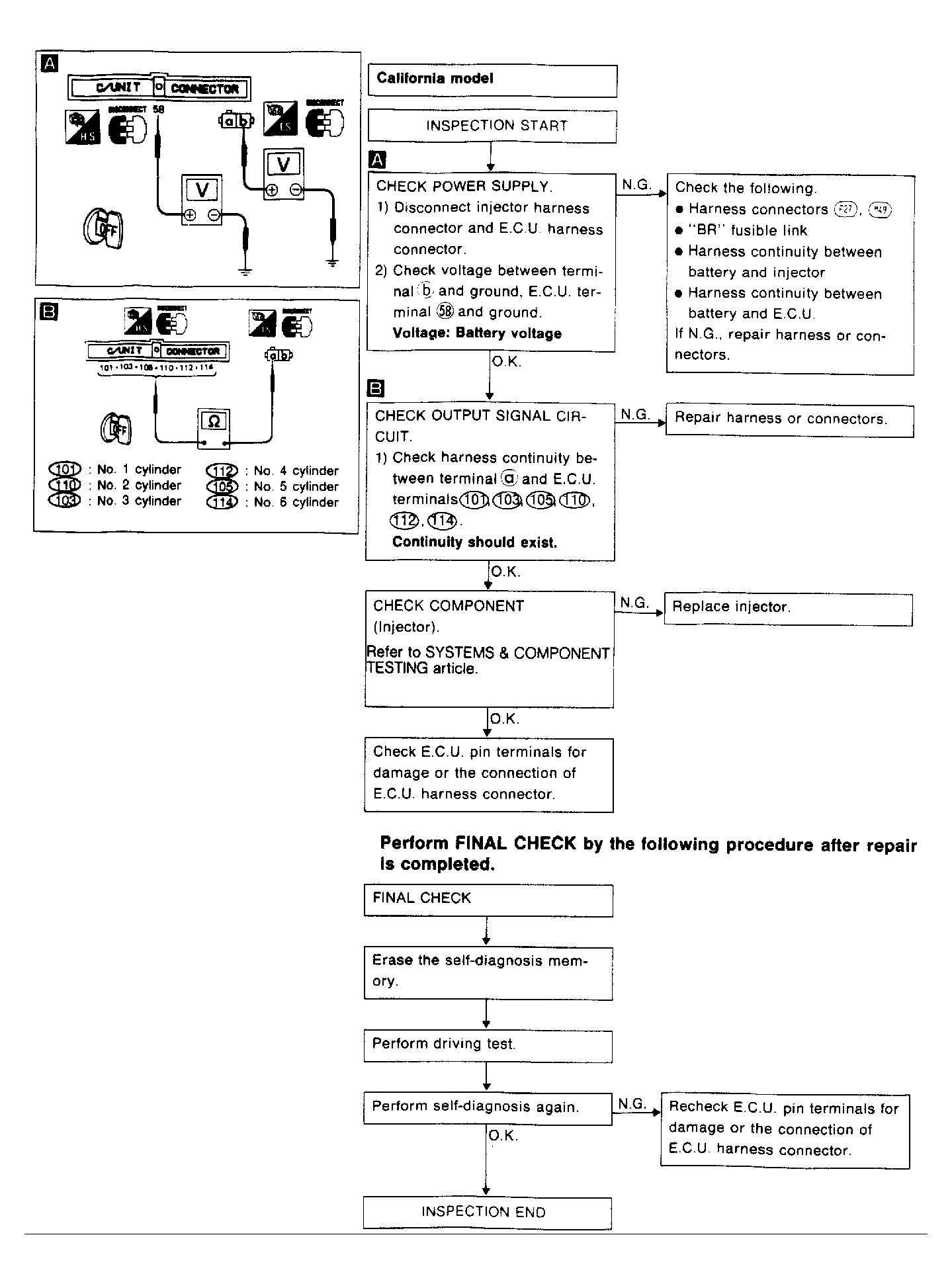

Fig 3: Code 51: Injector Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
