Code 11: Crank Angle Sensor (Q45)

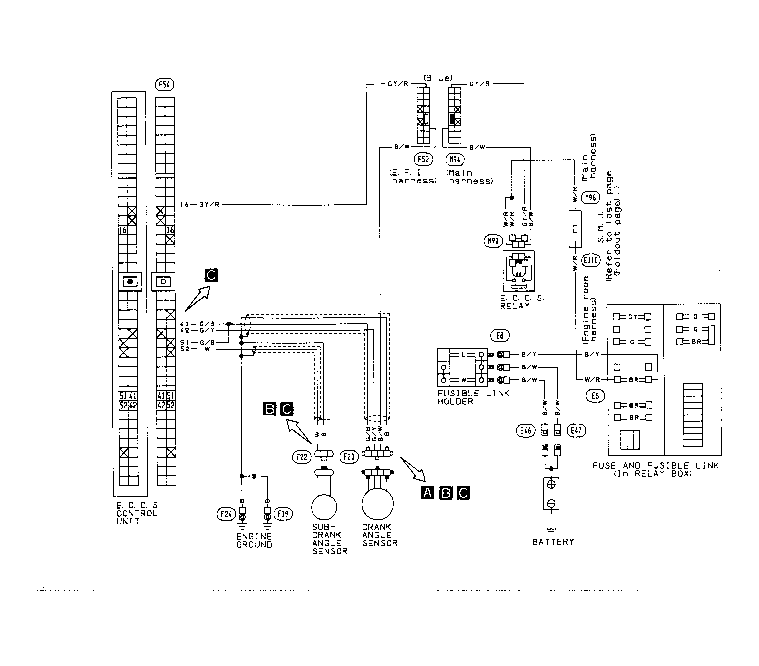

Fig 1: Q45 Code 11: Crank Angle Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

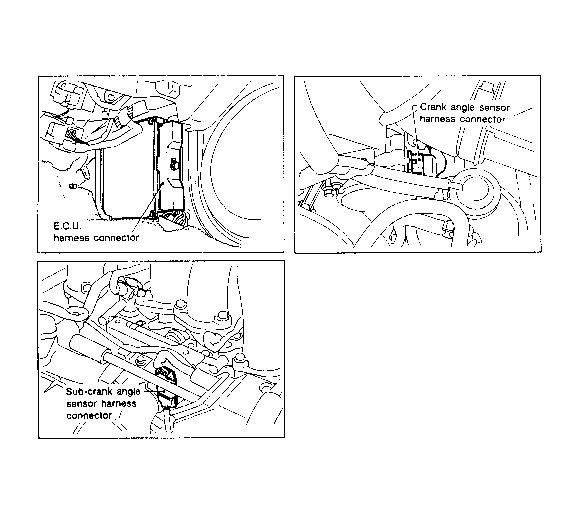

Fig 2: Q45 Code 11: Crank Angle Sensor & ECU Harness Location
Courtesy of NISSAN MOTOR CO., U.S.A.

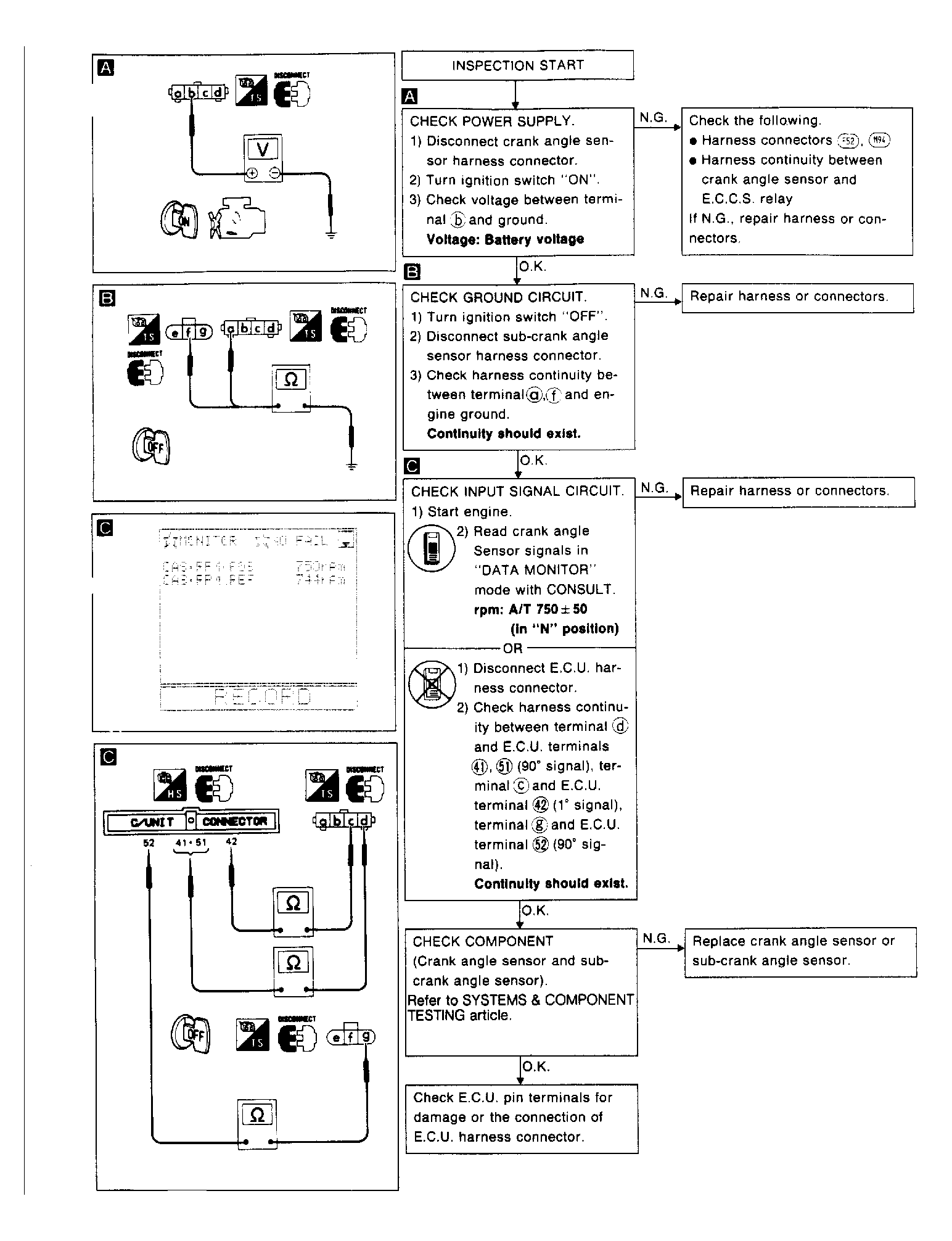

Fig 3: Q45 Code 11: Crank Angle Sensor Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
