Code 51: Injector Circuit (Q45)

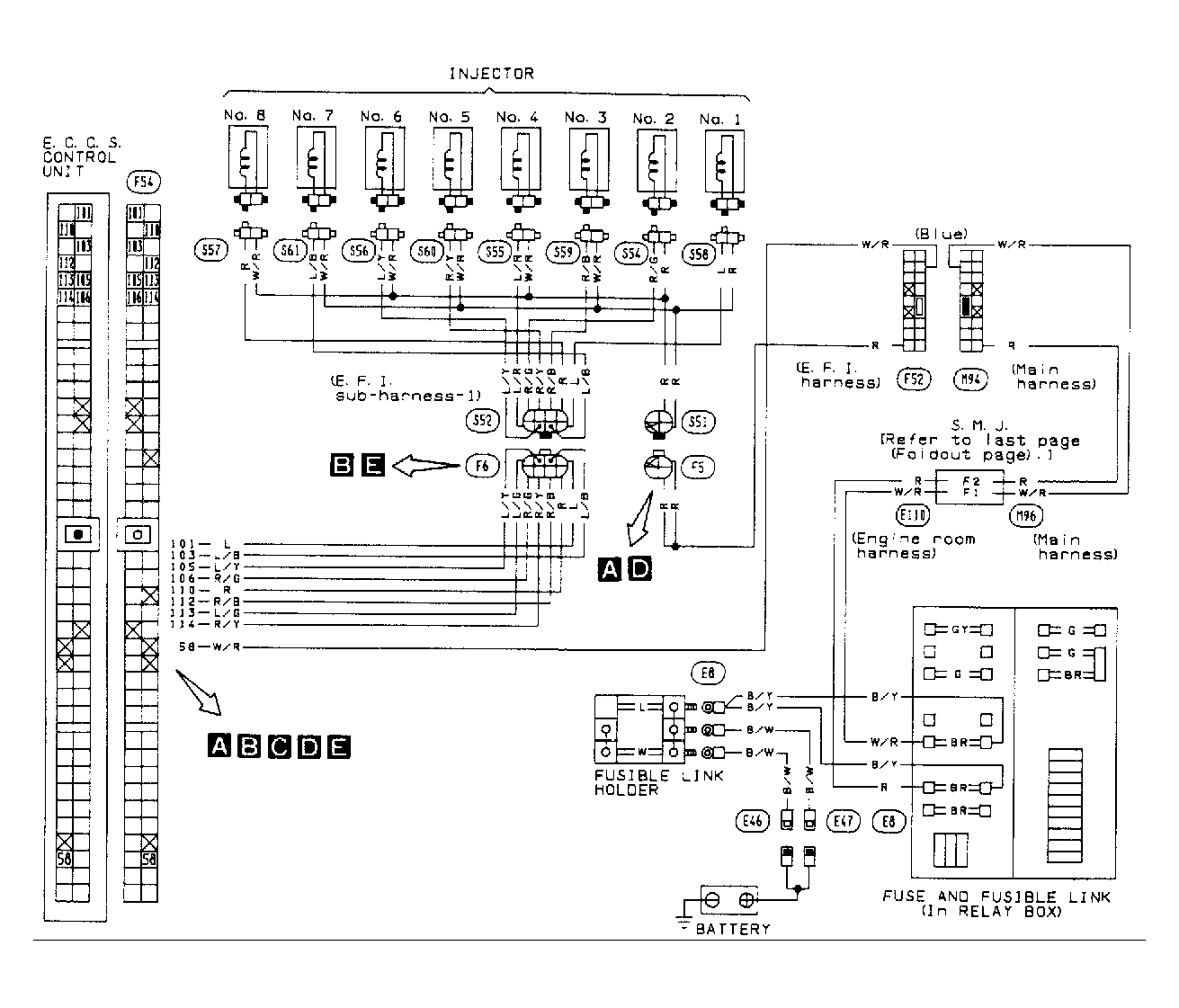

Fig 1: Q45 Code 51: Injector Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

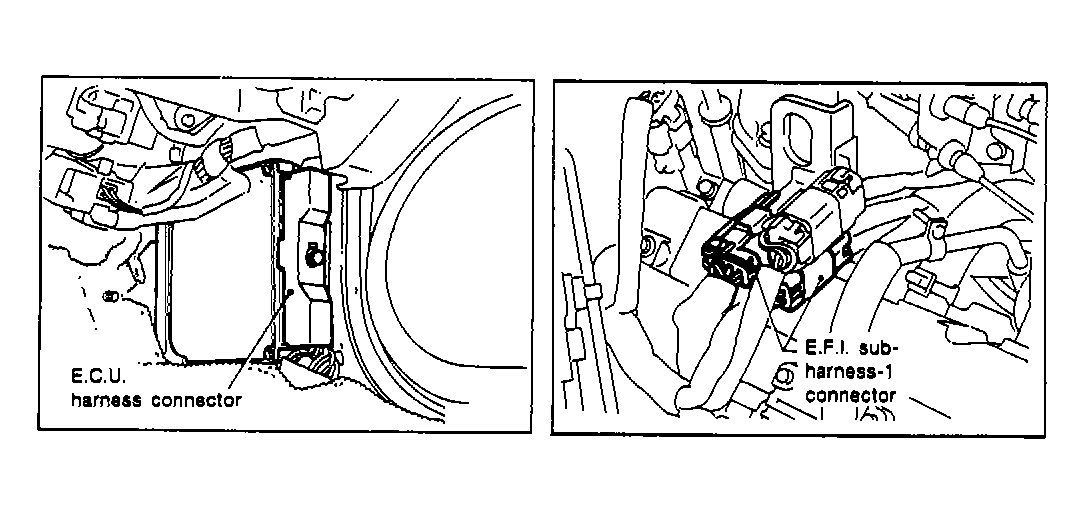

Fig 2: Q45 Code 51: Component Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

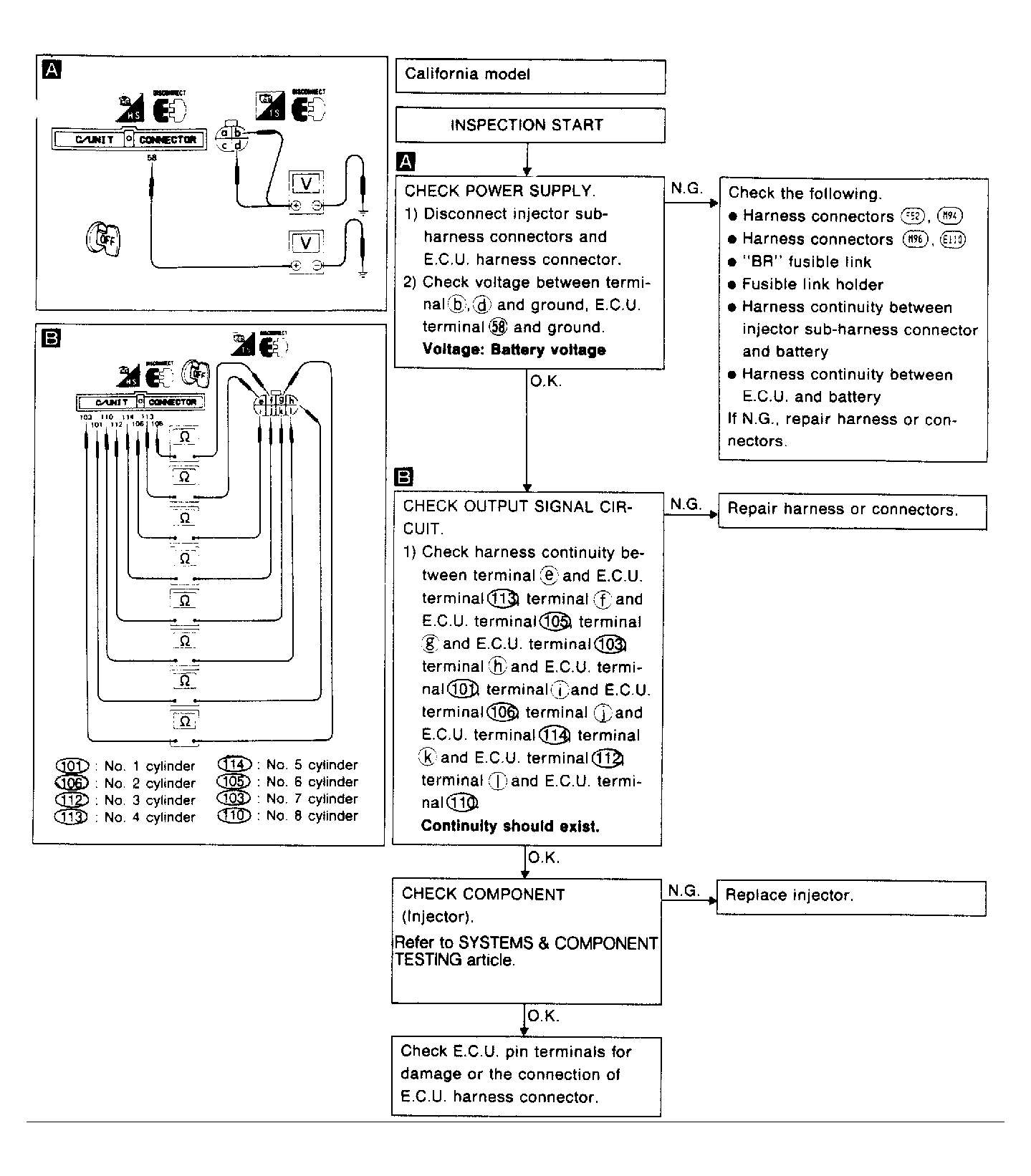

Fig 3: Q45 Code 51: Injector Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
