Code 13: Engine (Coolant) Temperature Sensor

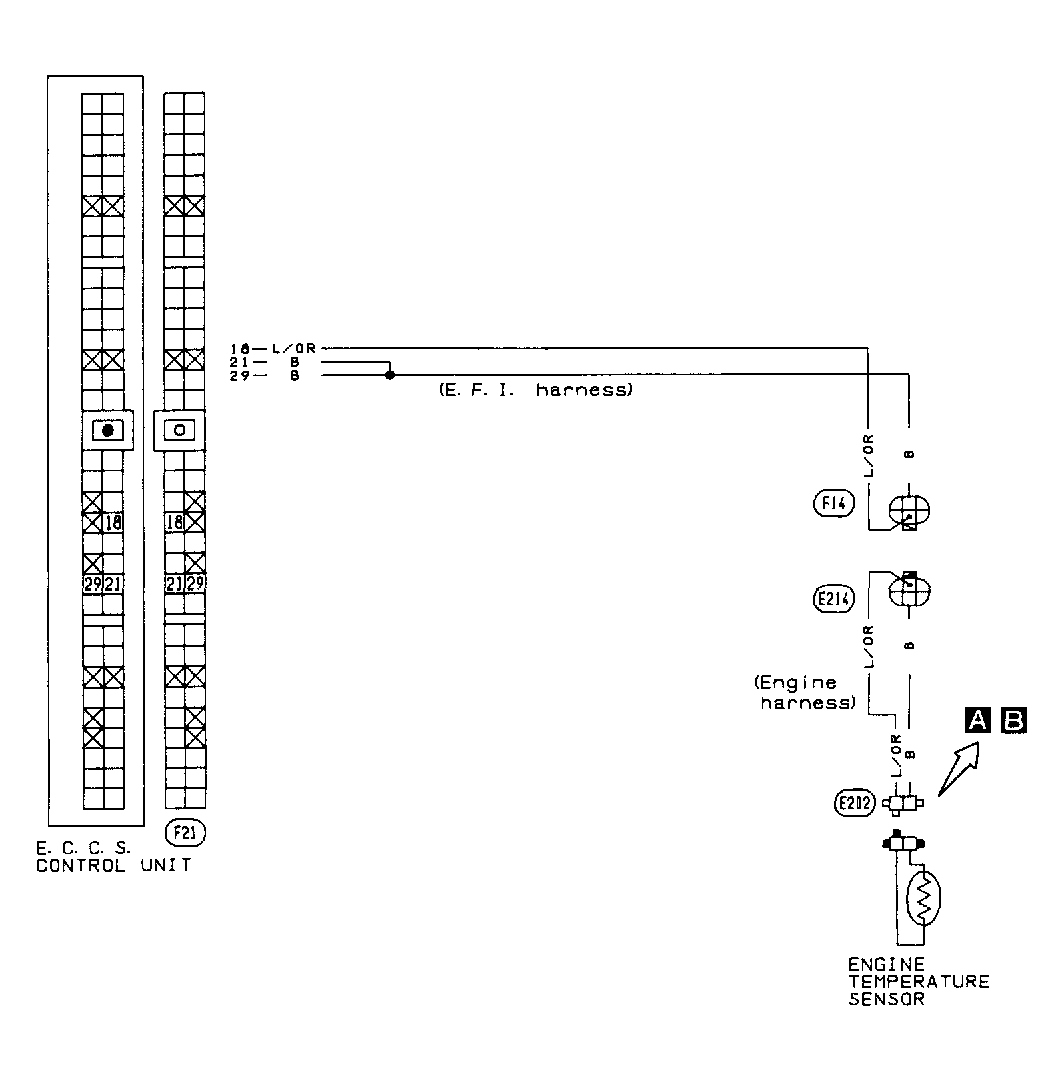

Fig 1: Code 13: Engine Temp. Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

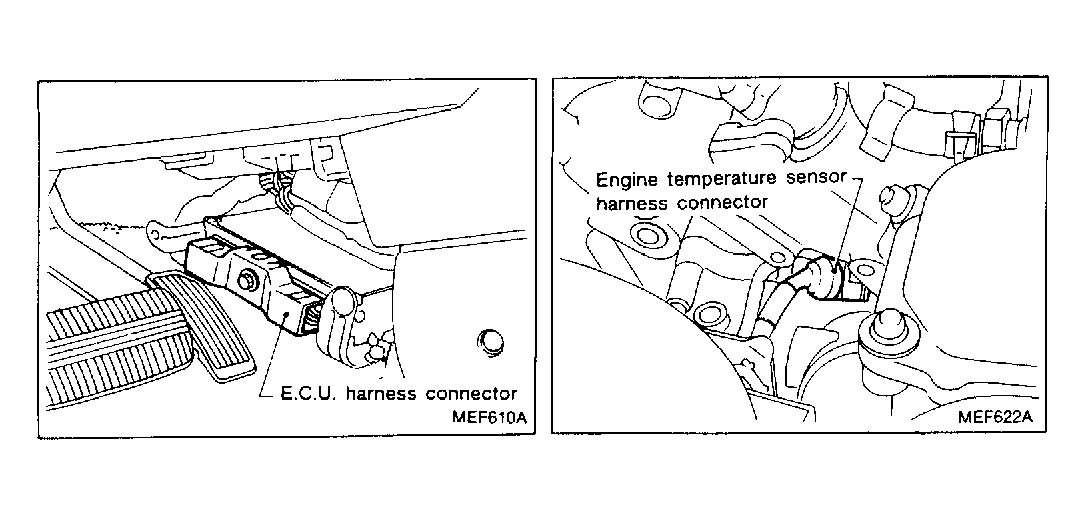

Fig 2: Code 13: Engine Temp. Sensor & ECU harness location

Courtesy of NISSAN MOTOR CO., U.S.A.

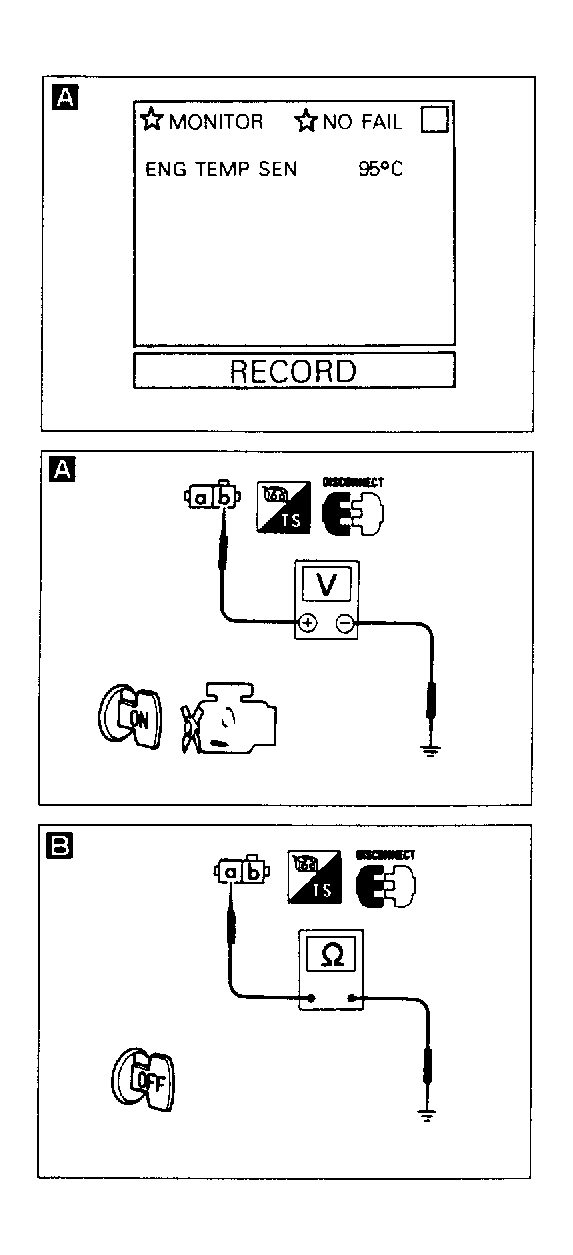

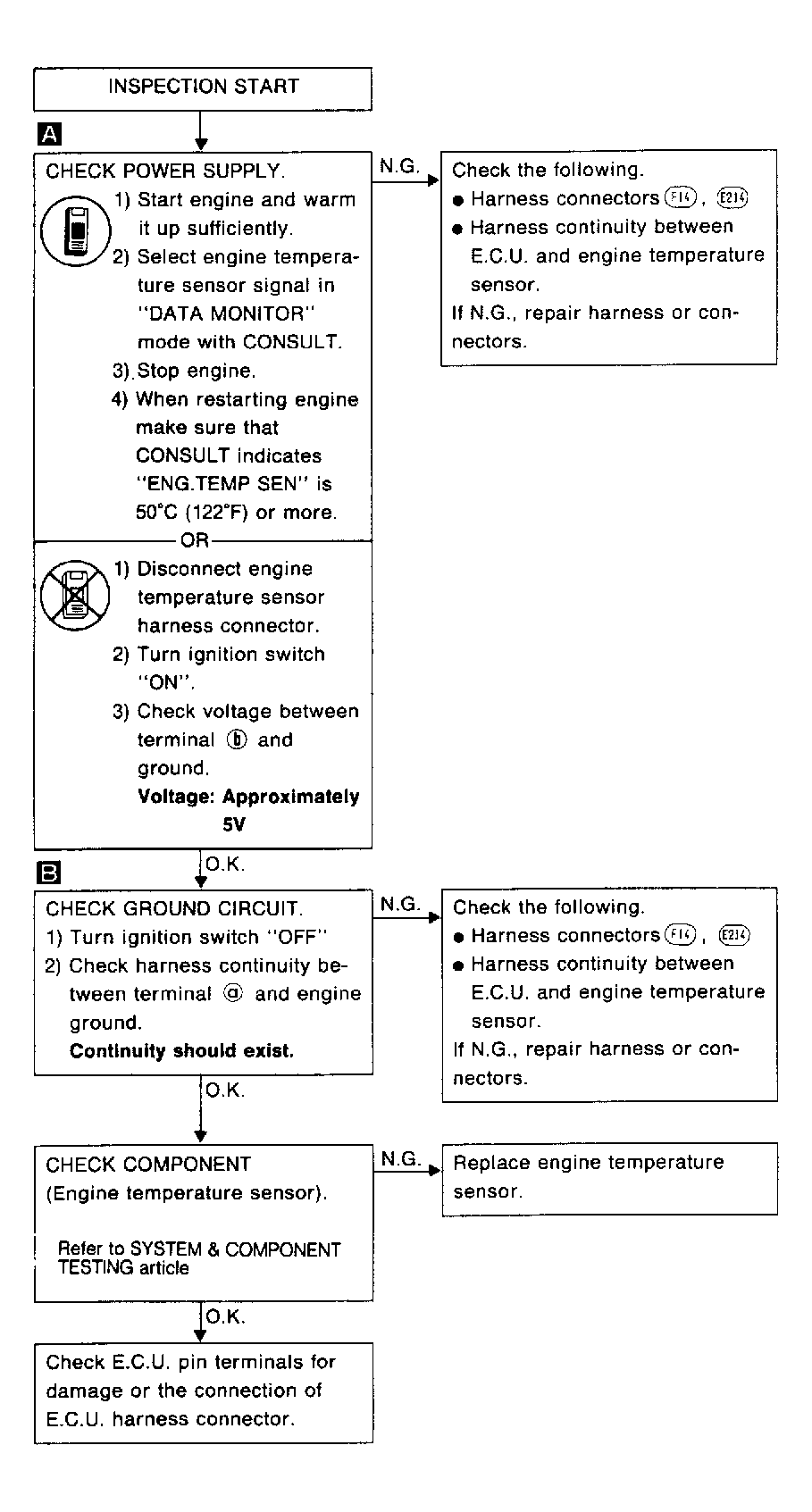

Fig 3: Code 13: Engine Temp. Sensor Flow Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Code 13: Engine Temp. Sensor Flow Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
