Code 32: EGR System Function

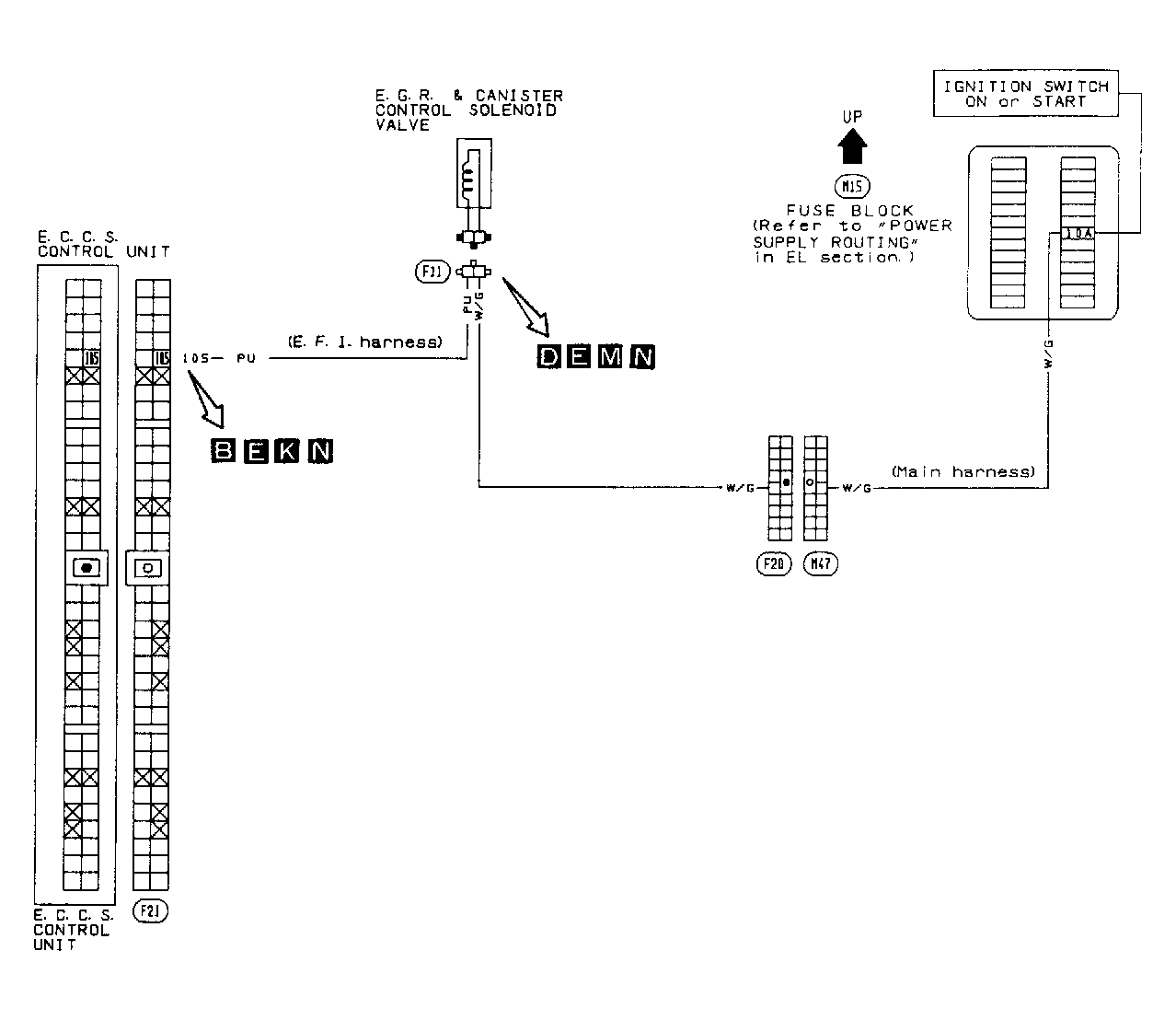

Fig 1: Code 32: EGR System Function Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

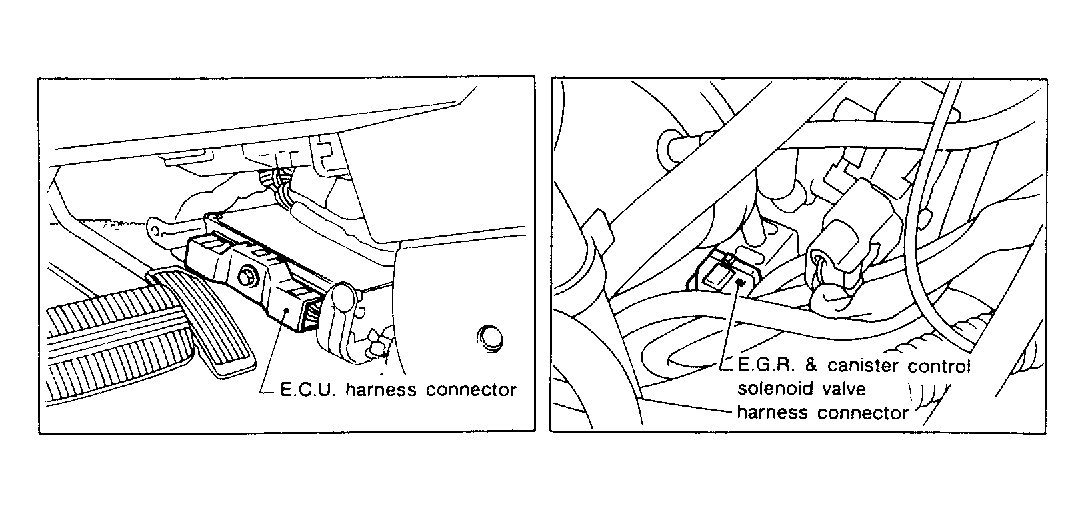

Fig 2: Code 32: EGR System Function & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

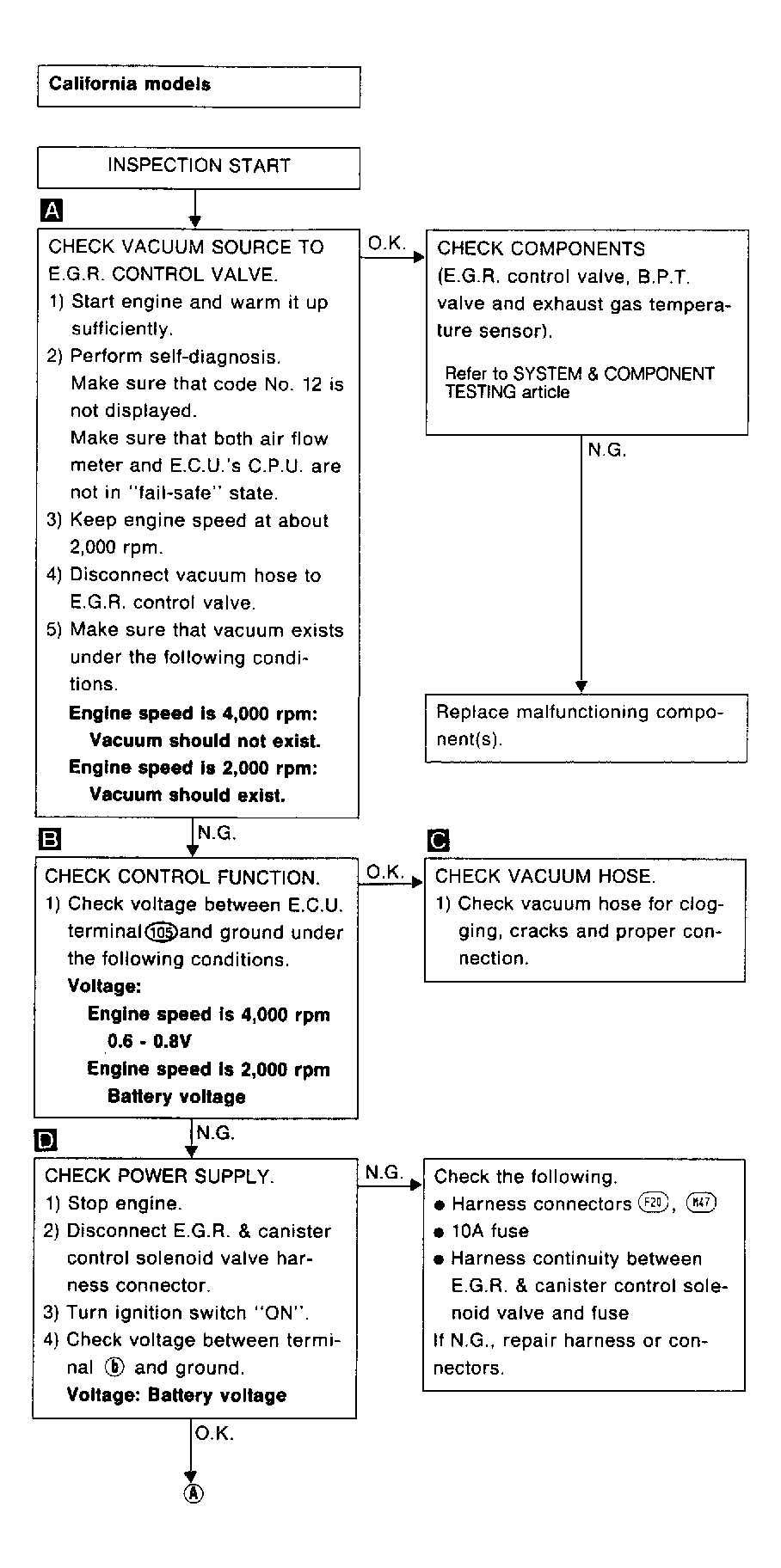

Fig 3: Code 32: EGR System Function Flow Chart (1 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

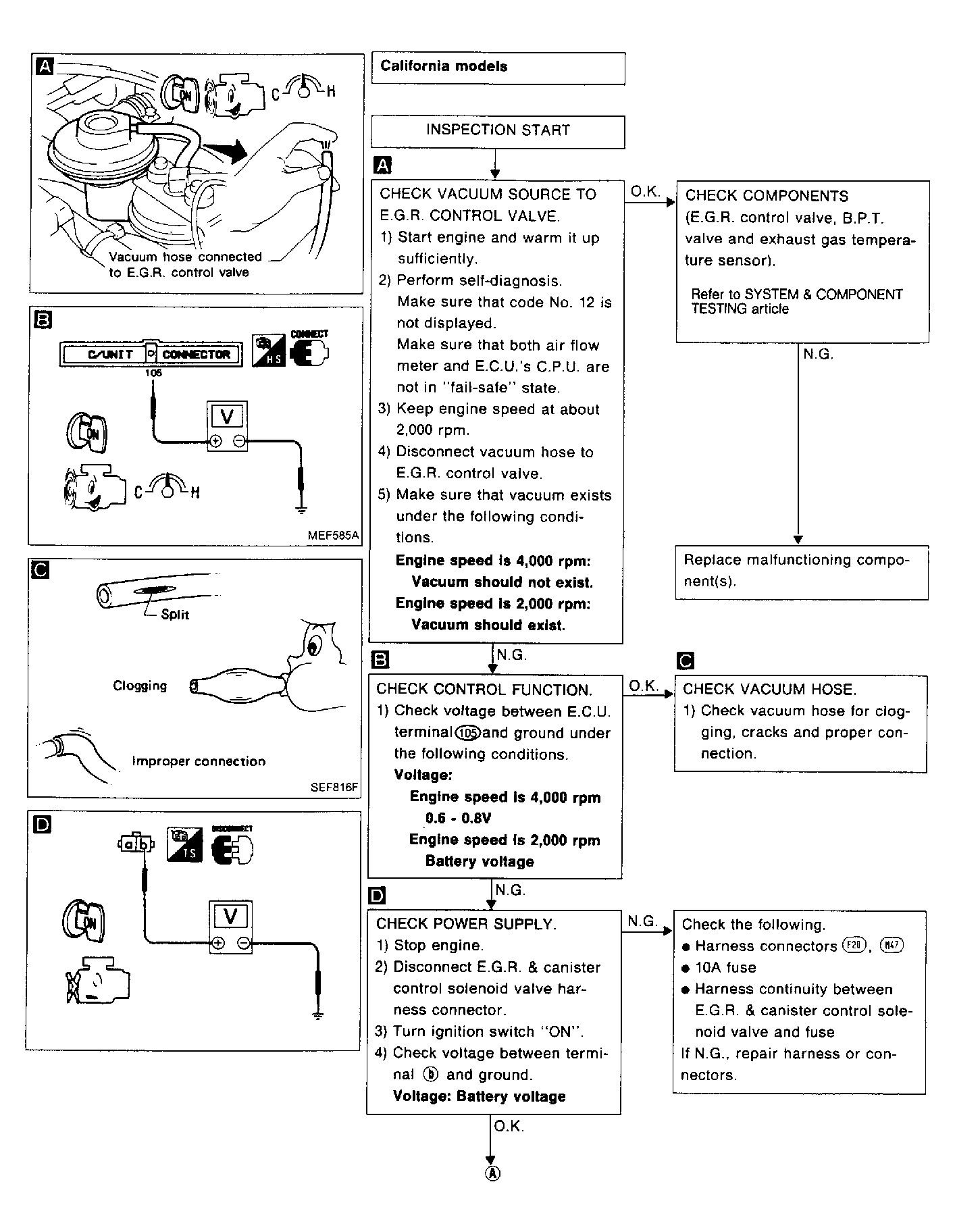

Fig 4: Code 32: EGR System Function Flow Chart (2 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

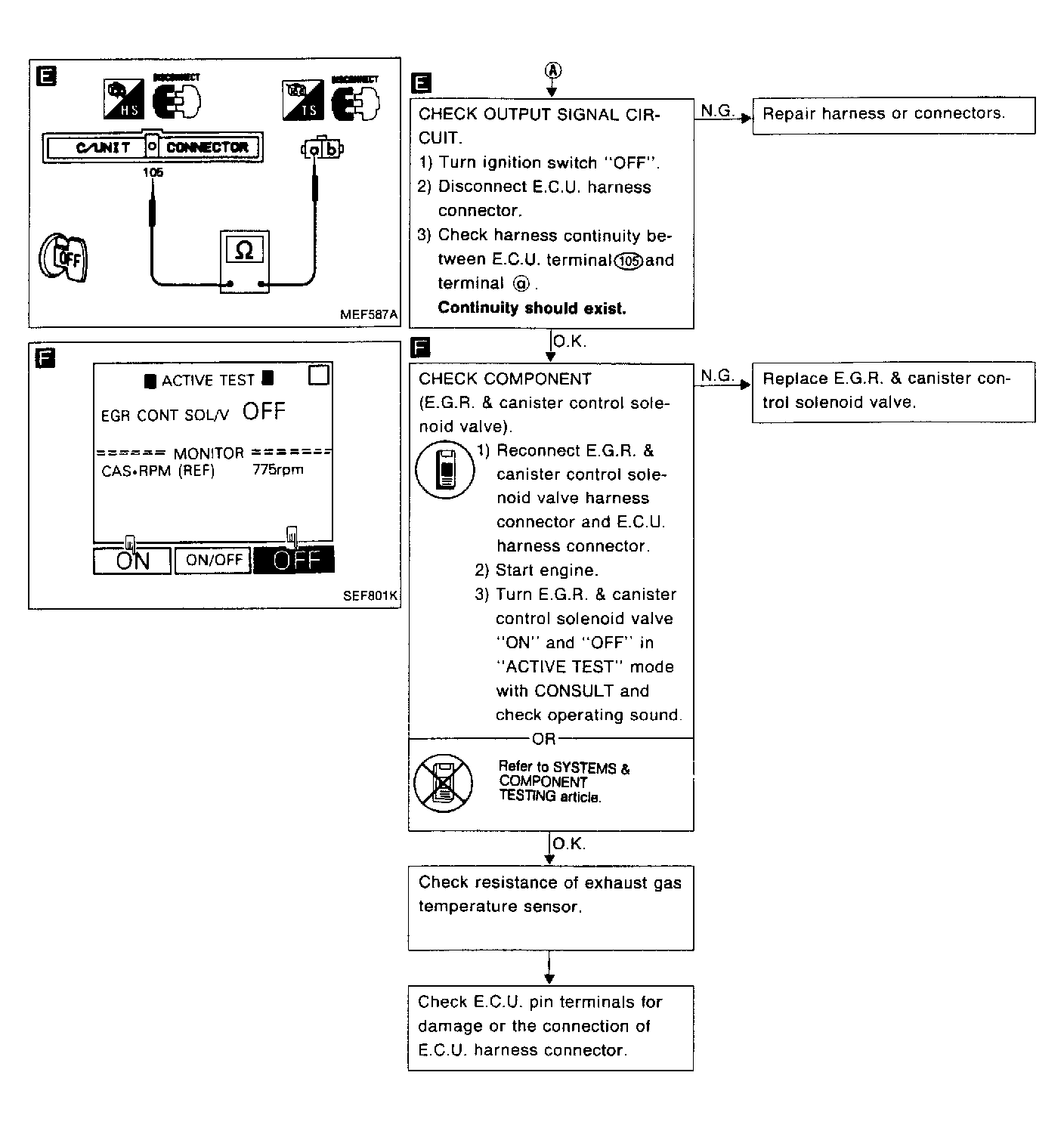

Fig 5: Code 32: EGR System Function Flow Chart (3 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

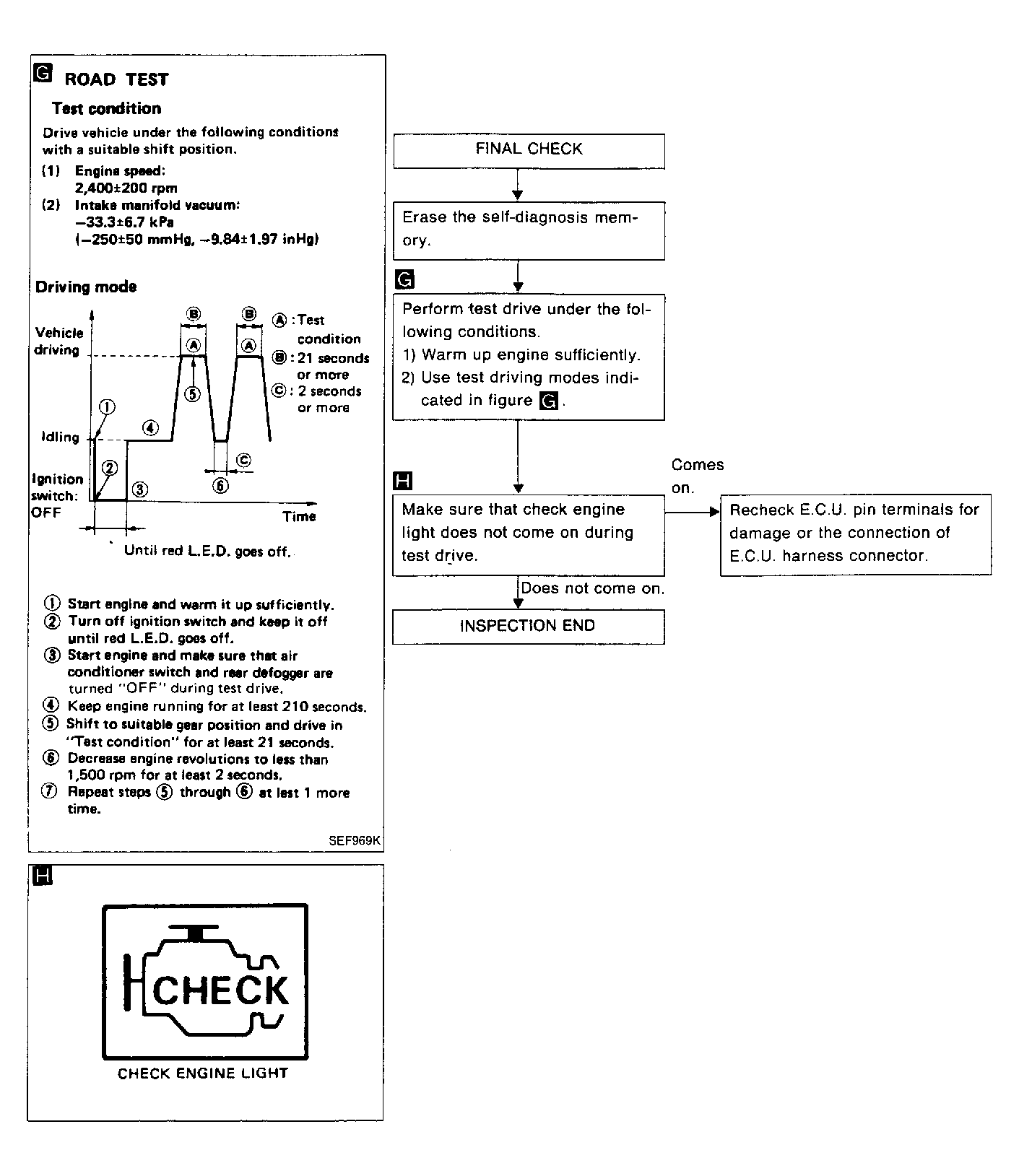

Fig 6: Code 32: EGR System Function Flow Chart (4 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
