Code 43: Throttle Position Sensor

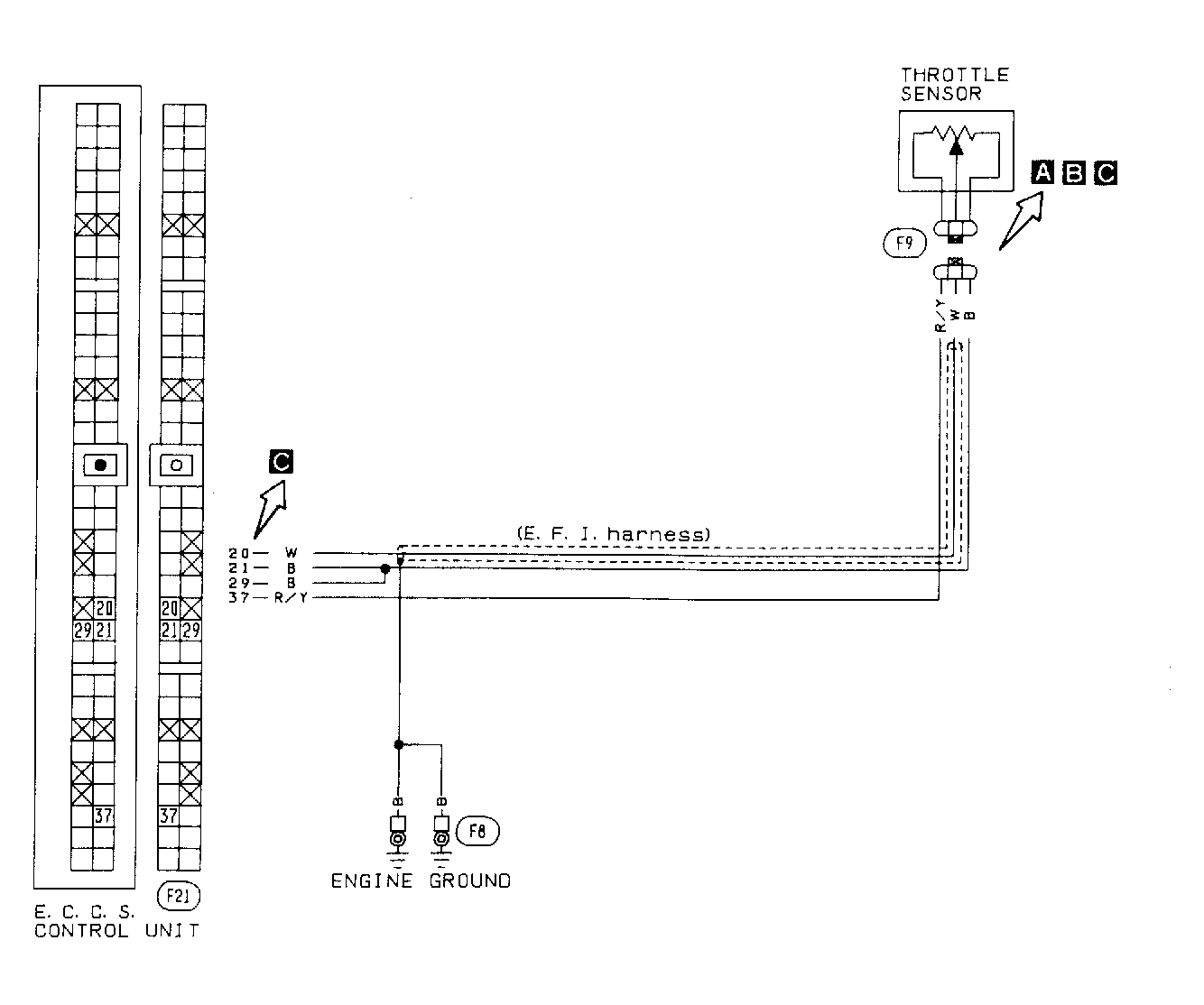

Fig 1: Code 43: Throttle Position Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

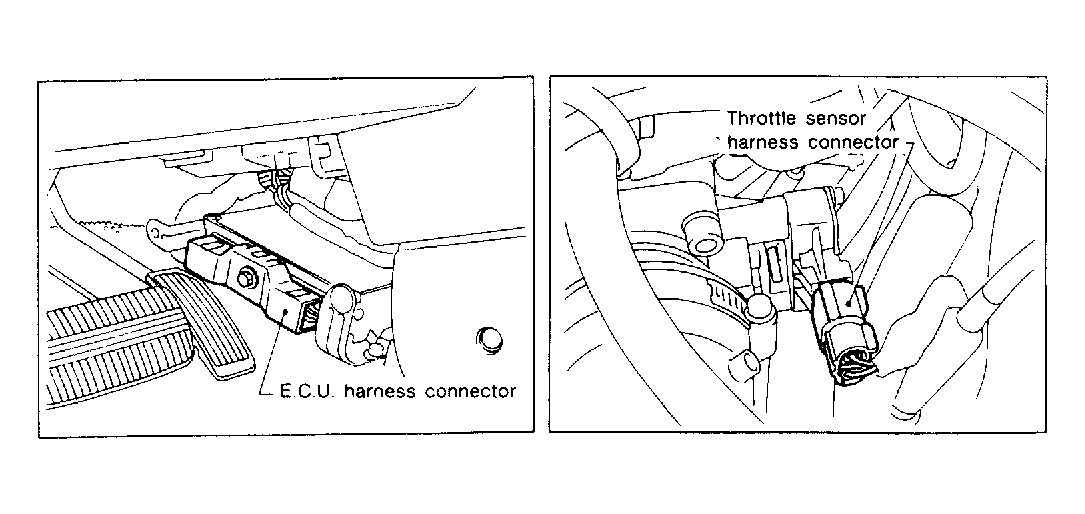

Fig 2: Code 43: Throttle Position Sensor & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

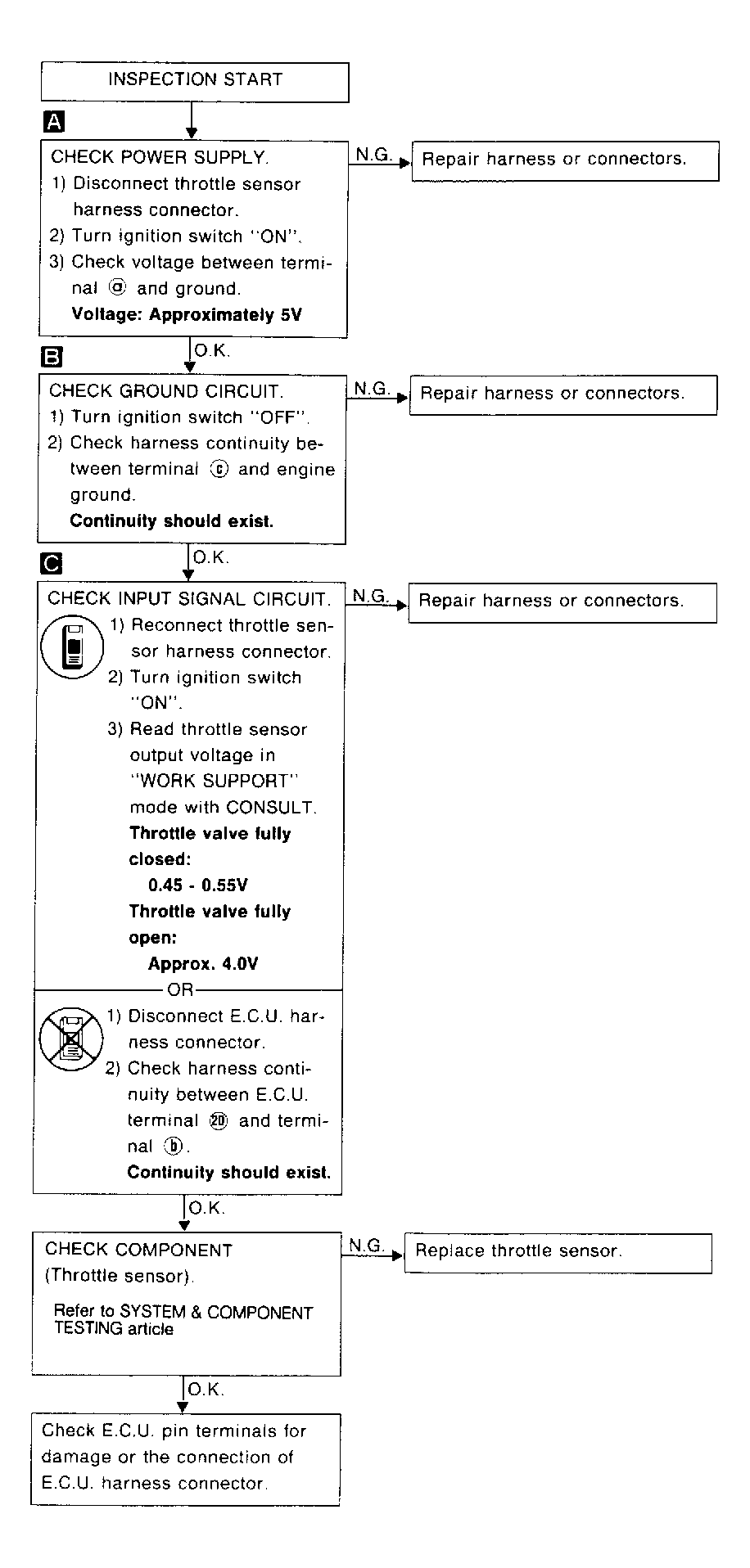

Fig 3: Code 43: Throttle Position Sensor Flow Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

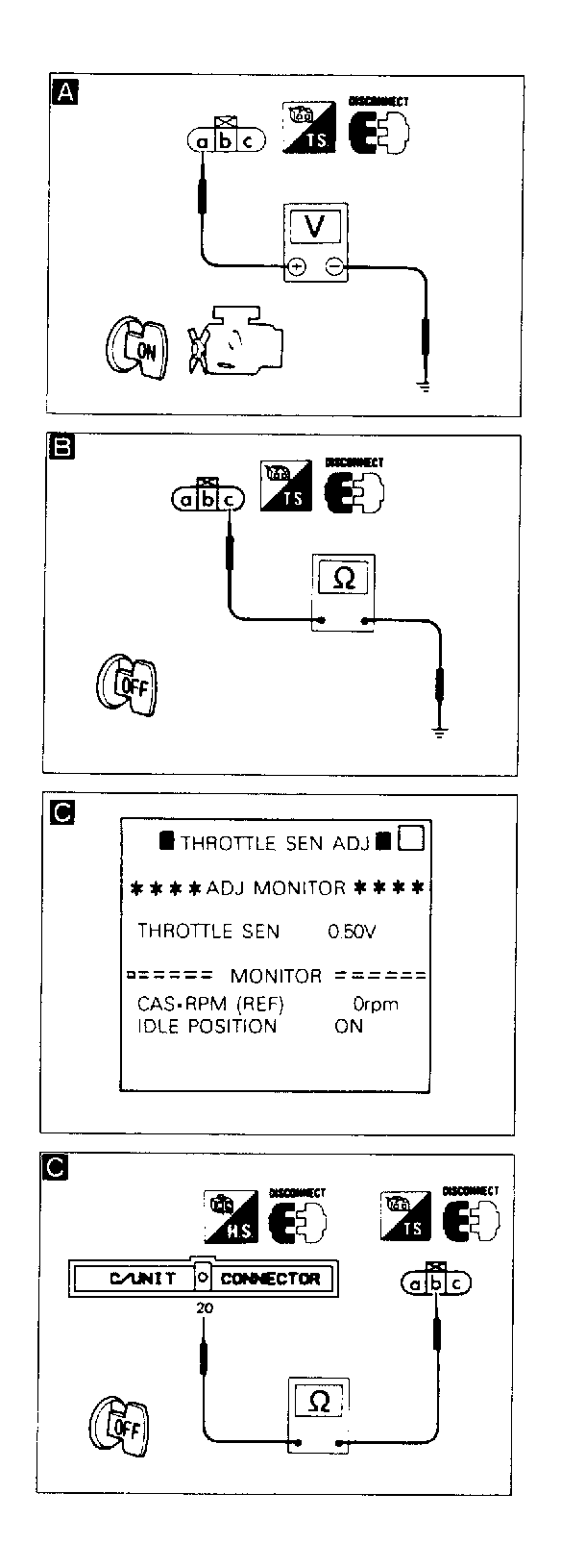

Fig 4: Code 43: Throttle Position Sensor Flow Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
