Code 34: Knock (Detonation) Sensor

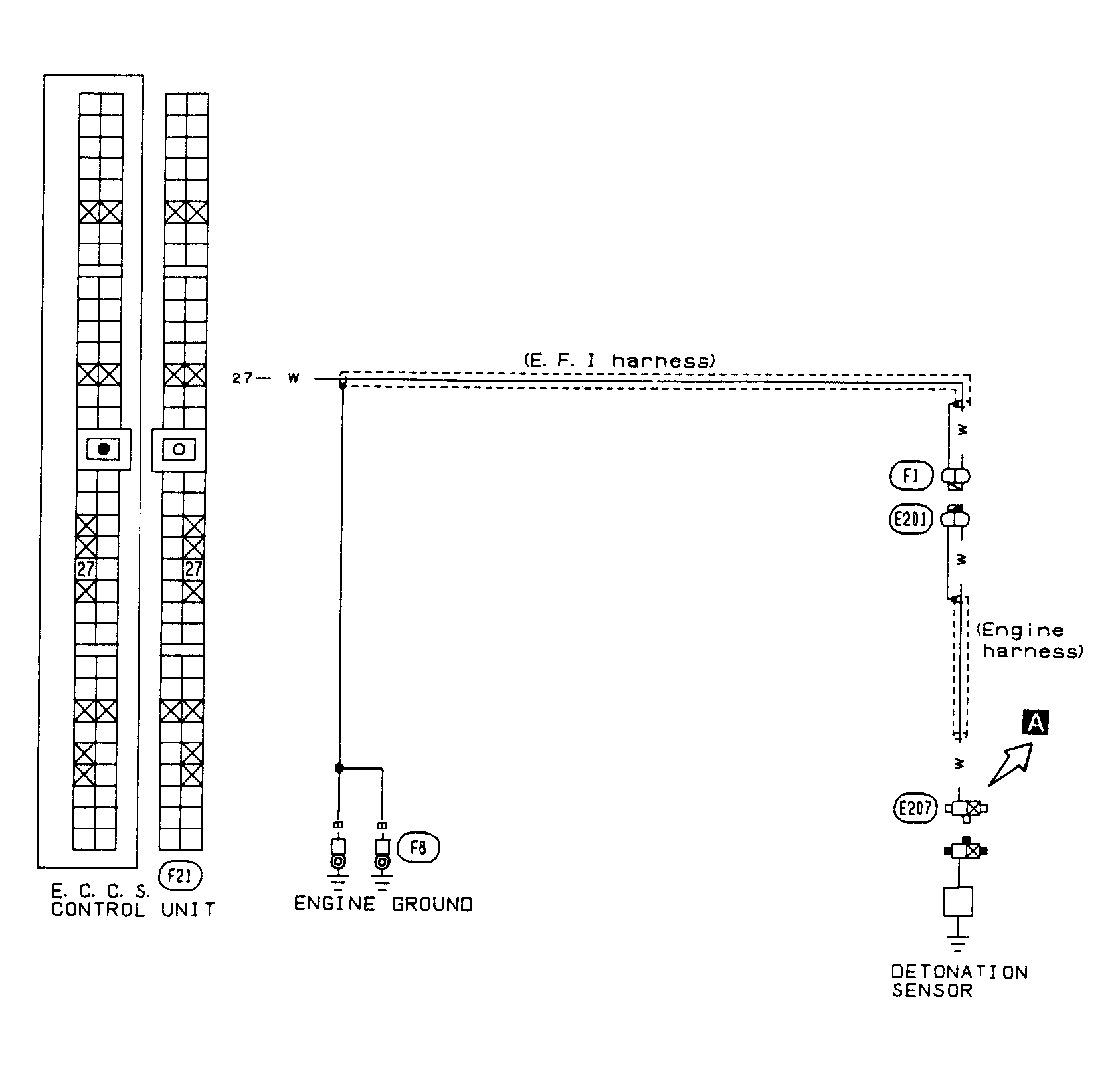

Fig 1: Code 34: Knock Sensor Circuit Diagram

G91J17300

Courtesy of NISSAN MOTOR CO., U.S.A.

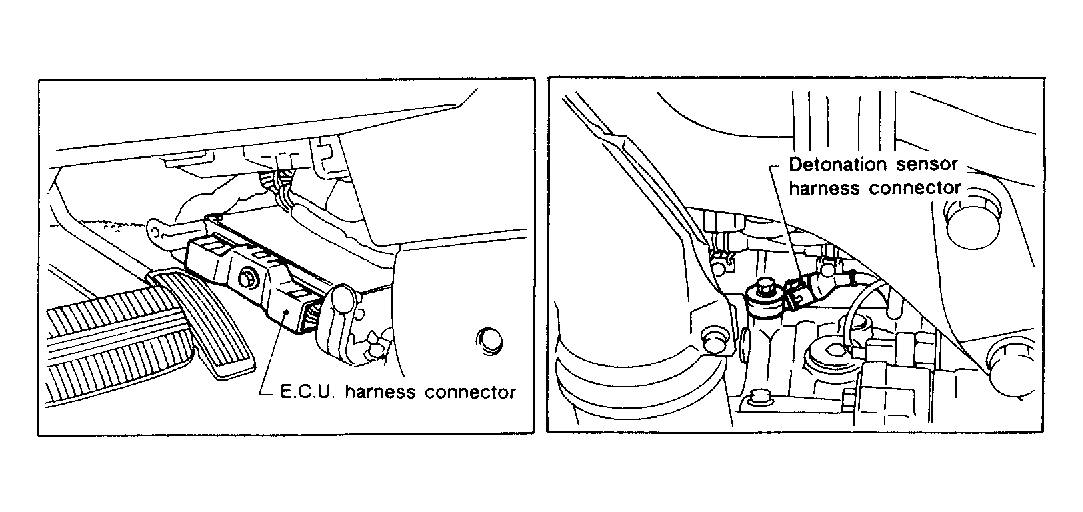

Fig 2: Code 34: Knock Sensor & ECU Harness Location

G91A17301

Courtesy of NISSAN MOTOR CO., U.S.A.

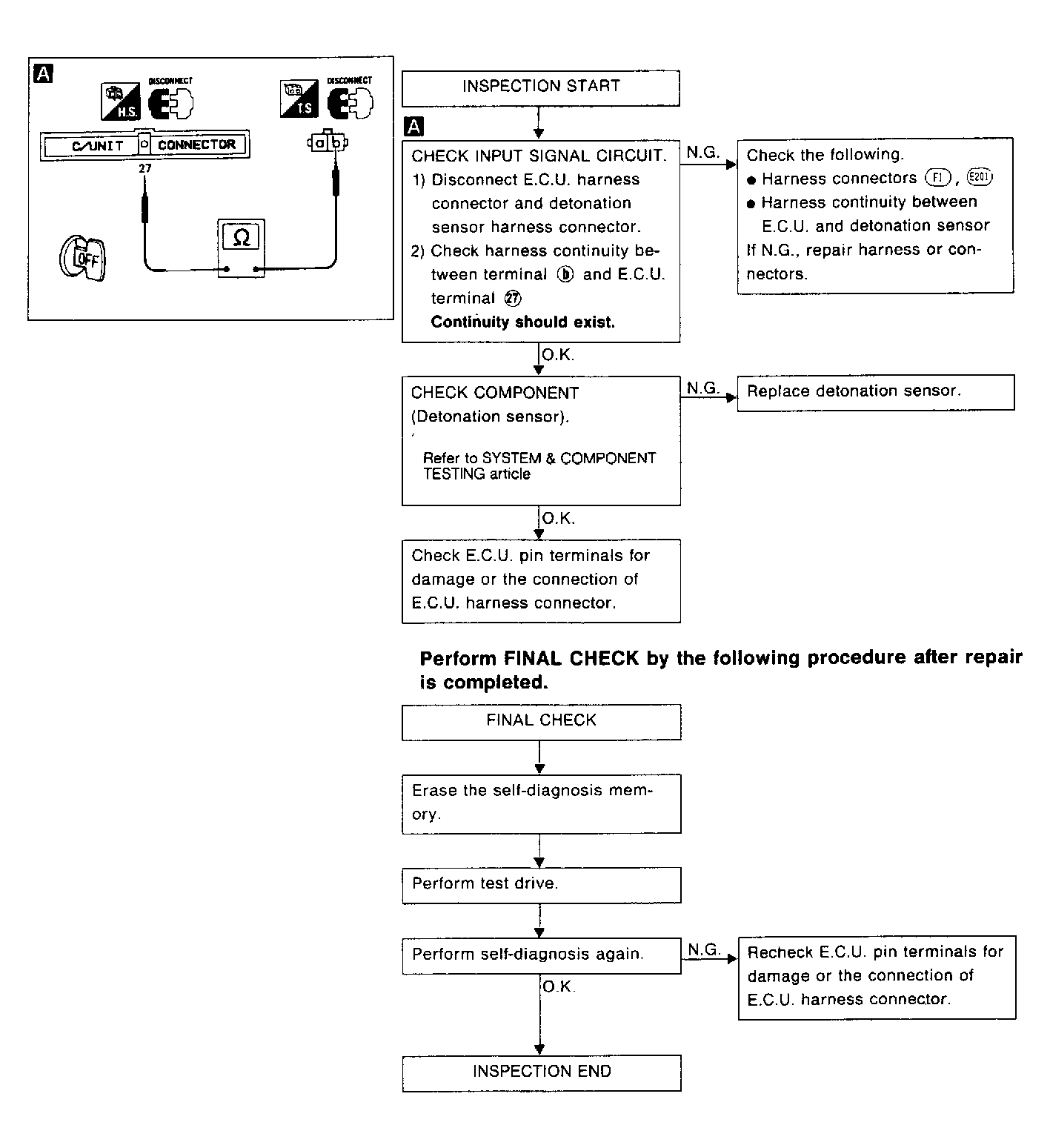

Fig 3: Code 34: Knock Sensor Flow Chart

G91B17302

Courtesy of NISSAN MOTOR CO., U.S.A.
