Code 21: Ignition Signal Circuit

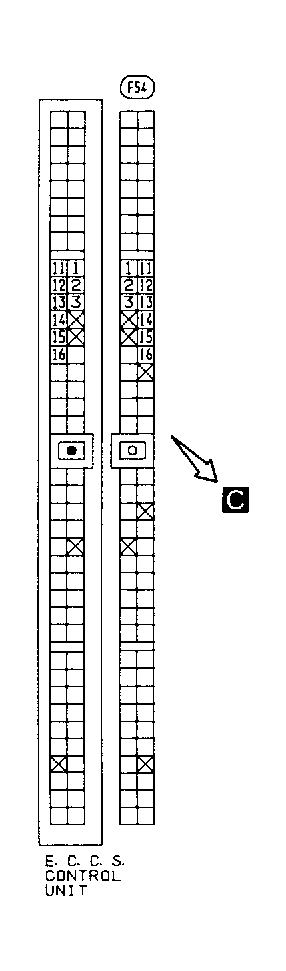

Fig 1: Code 21: Ignition Signal Ckt. ECU Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

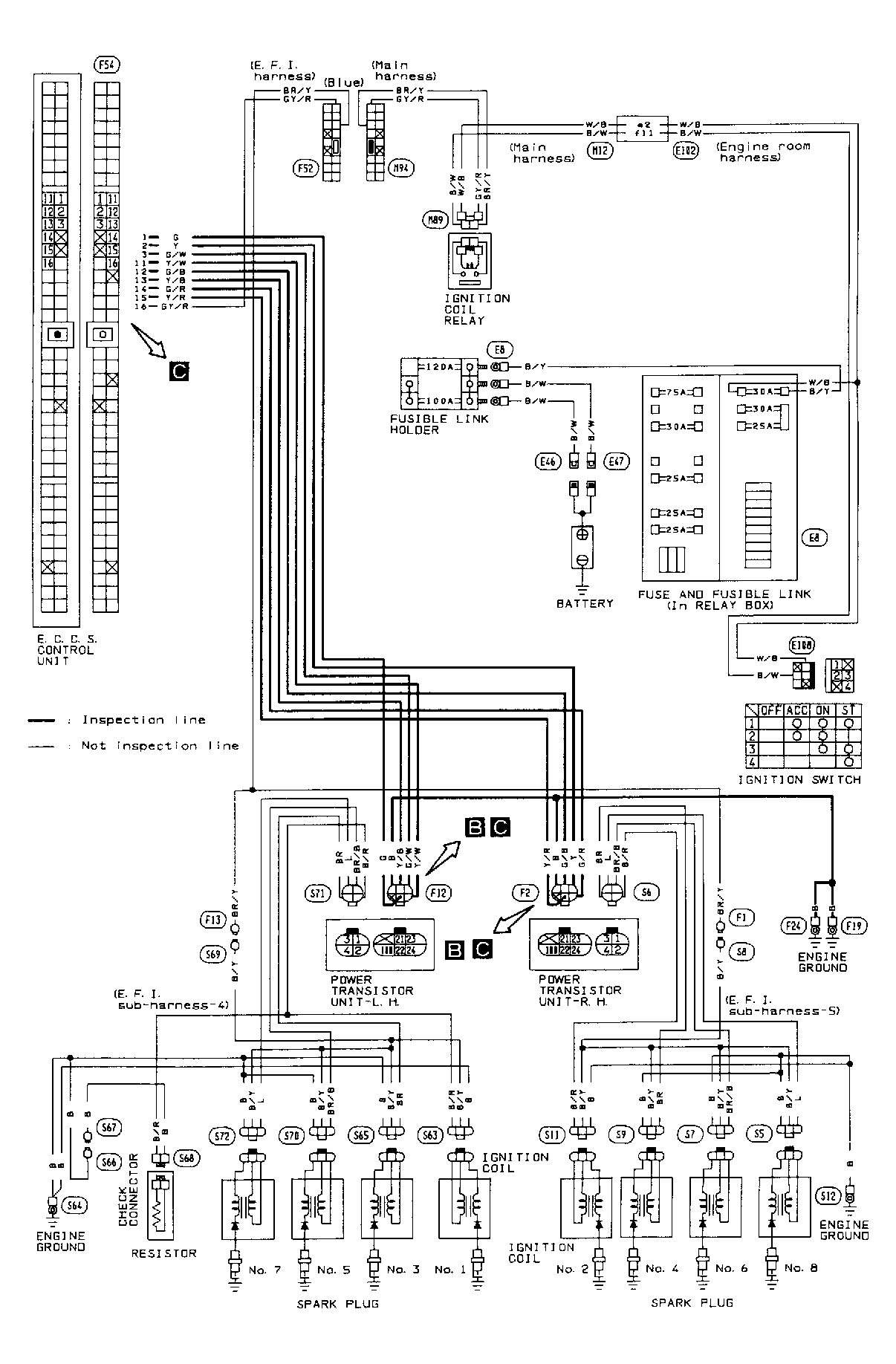

Fig 2: Code 21: Ignition Signal Ckt. Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

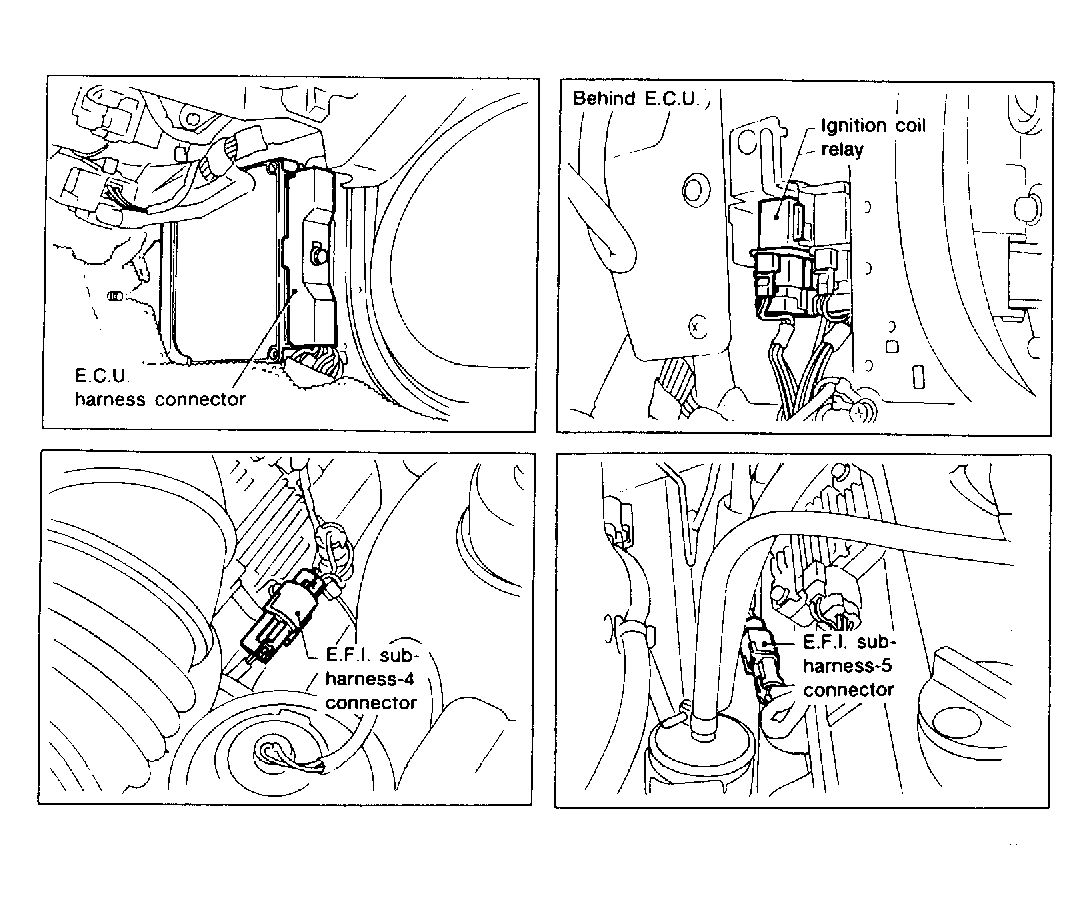

Fig 3: Code 21: Ignition Signal Ckt. Harness Location (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

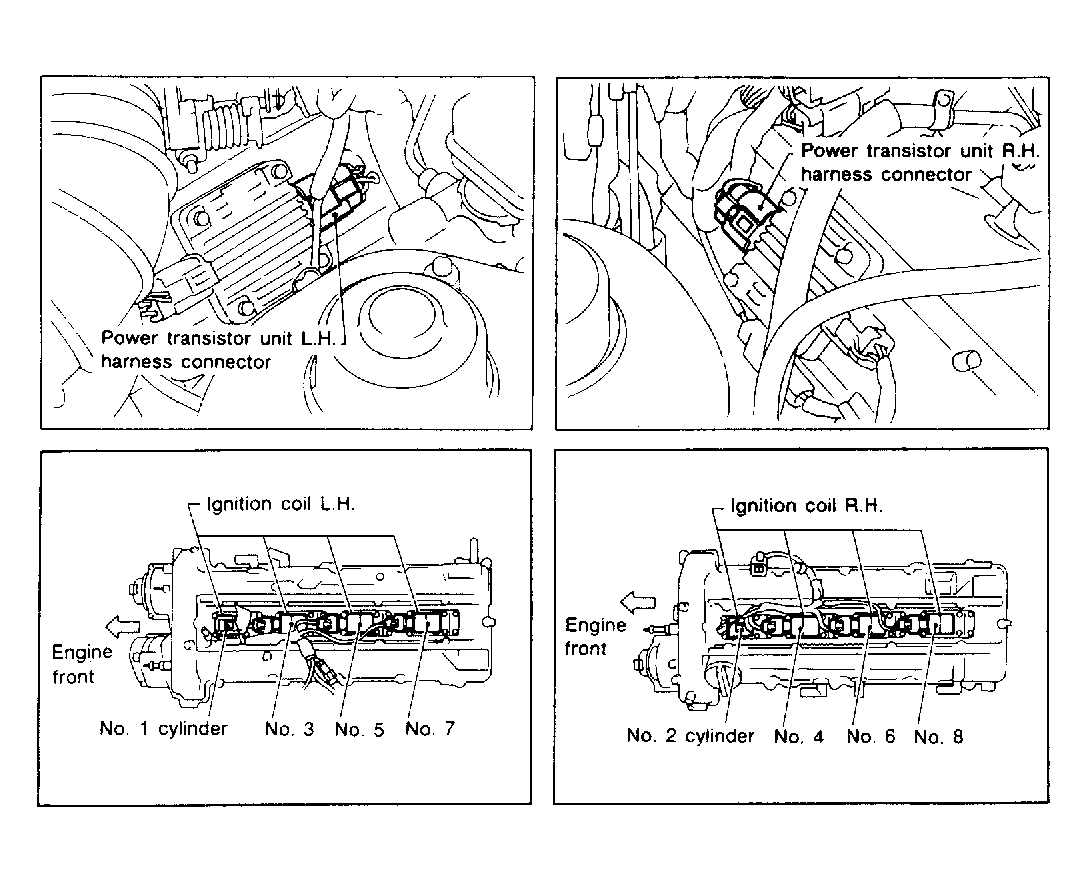

Fig 4: Code 21: Ignition Signal Ckt. Harness Location (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

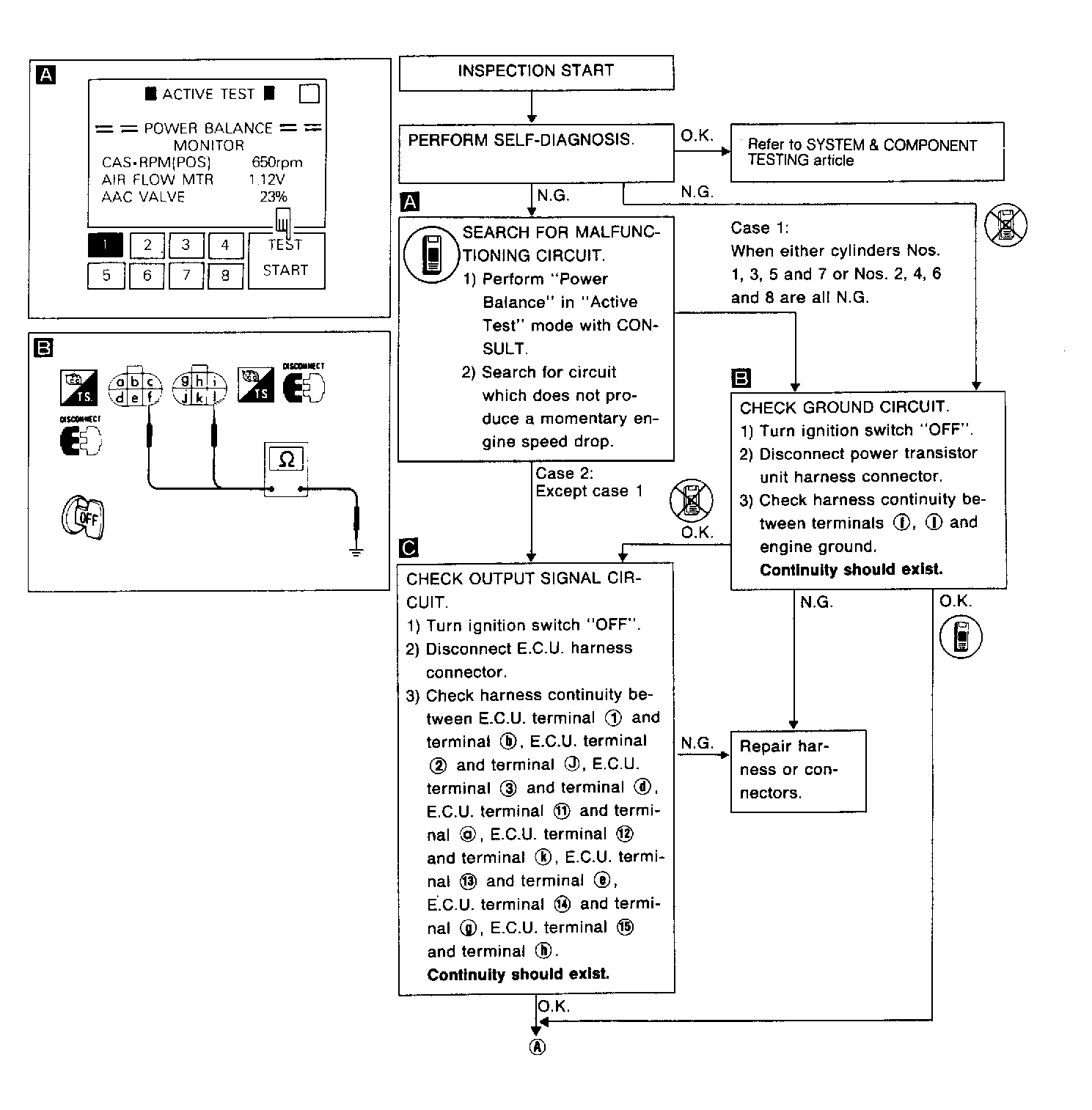

Fig 5: Code 21: Ignition Signal Ckt. Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
