DTC 16 - Traction Control System (TCS) Signal

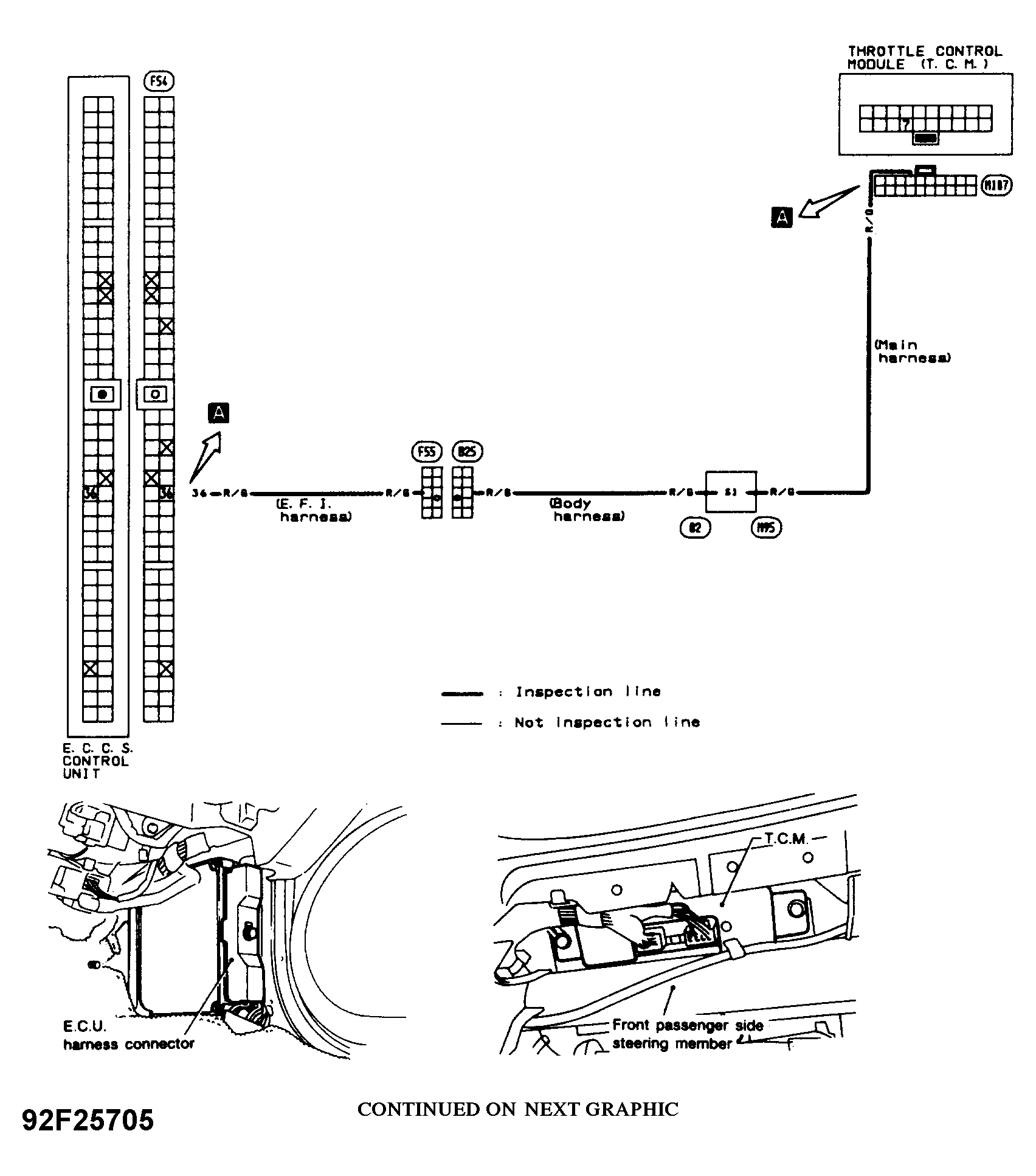

Fig 1: Code 16 - Schematic & Connectors - TCS System Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

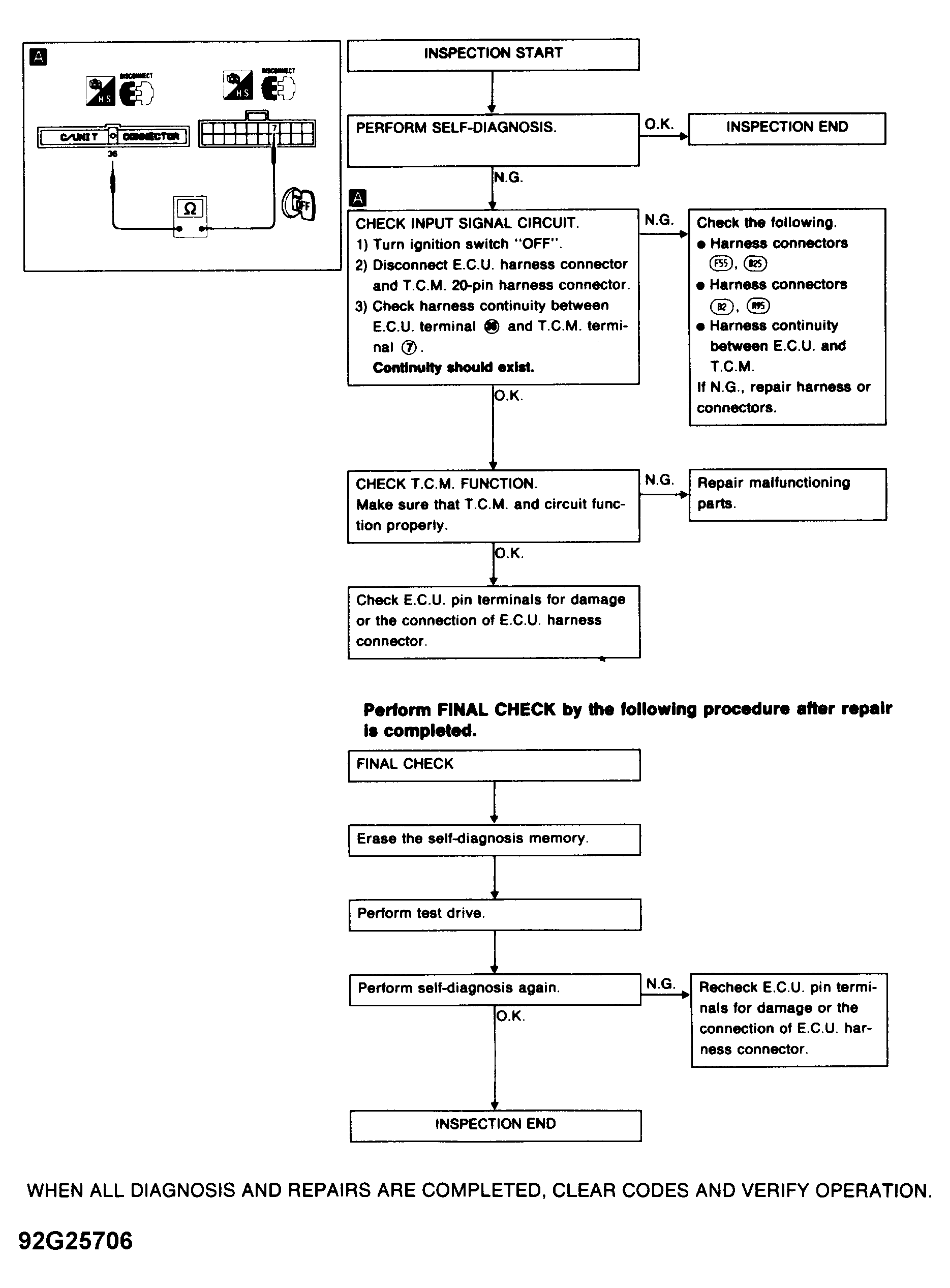

Fig 2: Code 16 - Flow Chart - TCS System Signal
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
