DTC 32 - EGR System Function

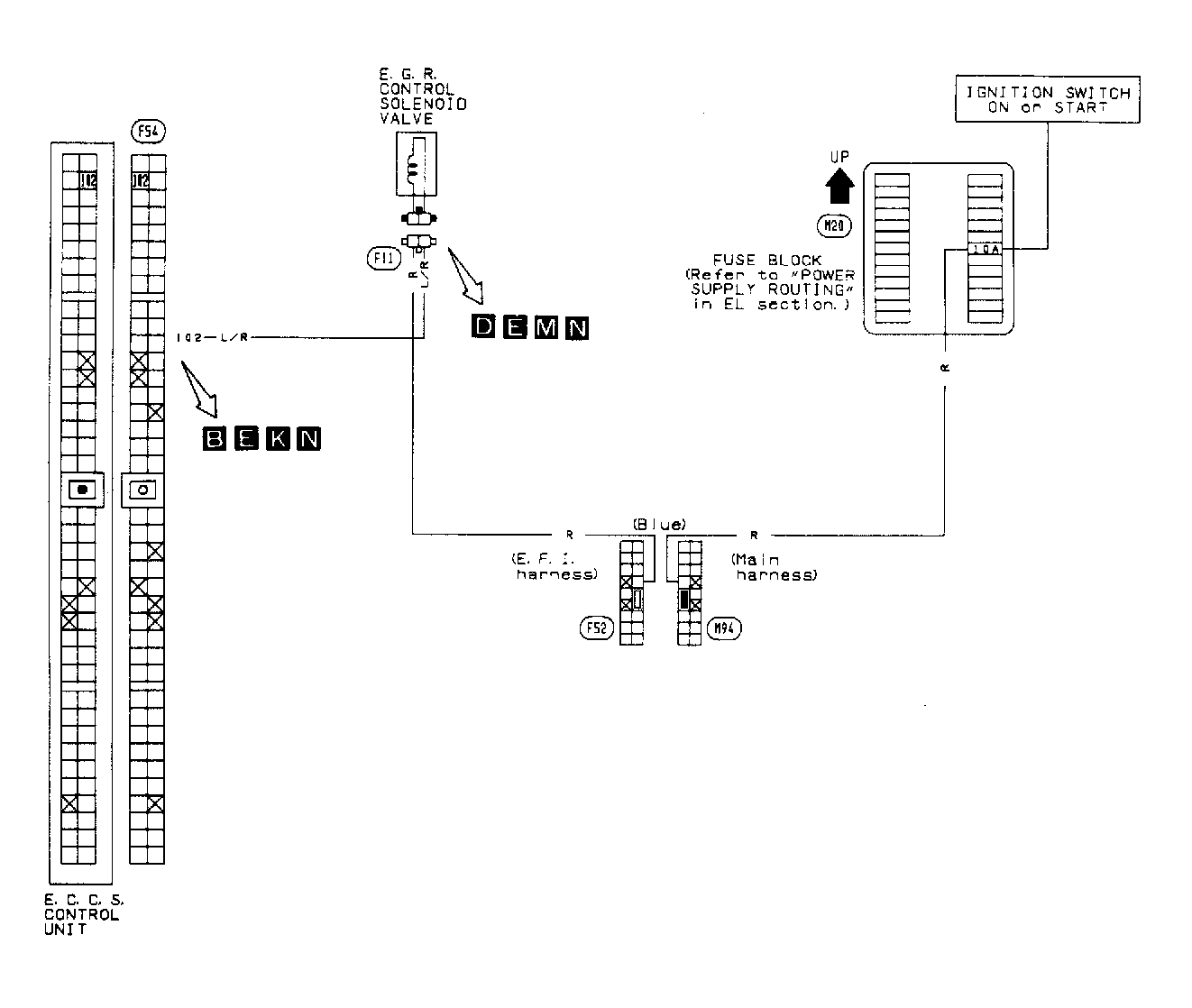

Fig 1: Code 32 Schematic - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.

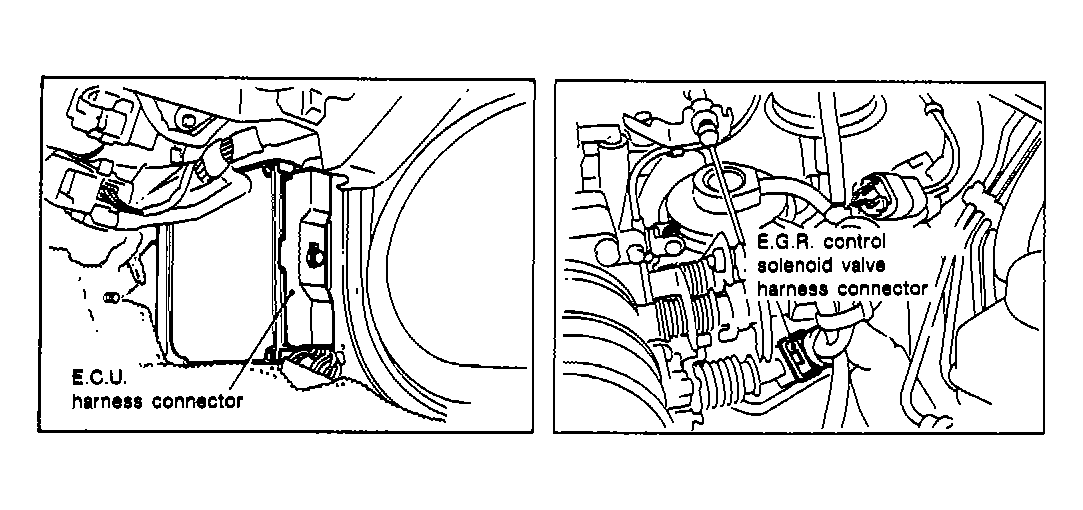

Fig 2: Code 32 Connector Location - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.

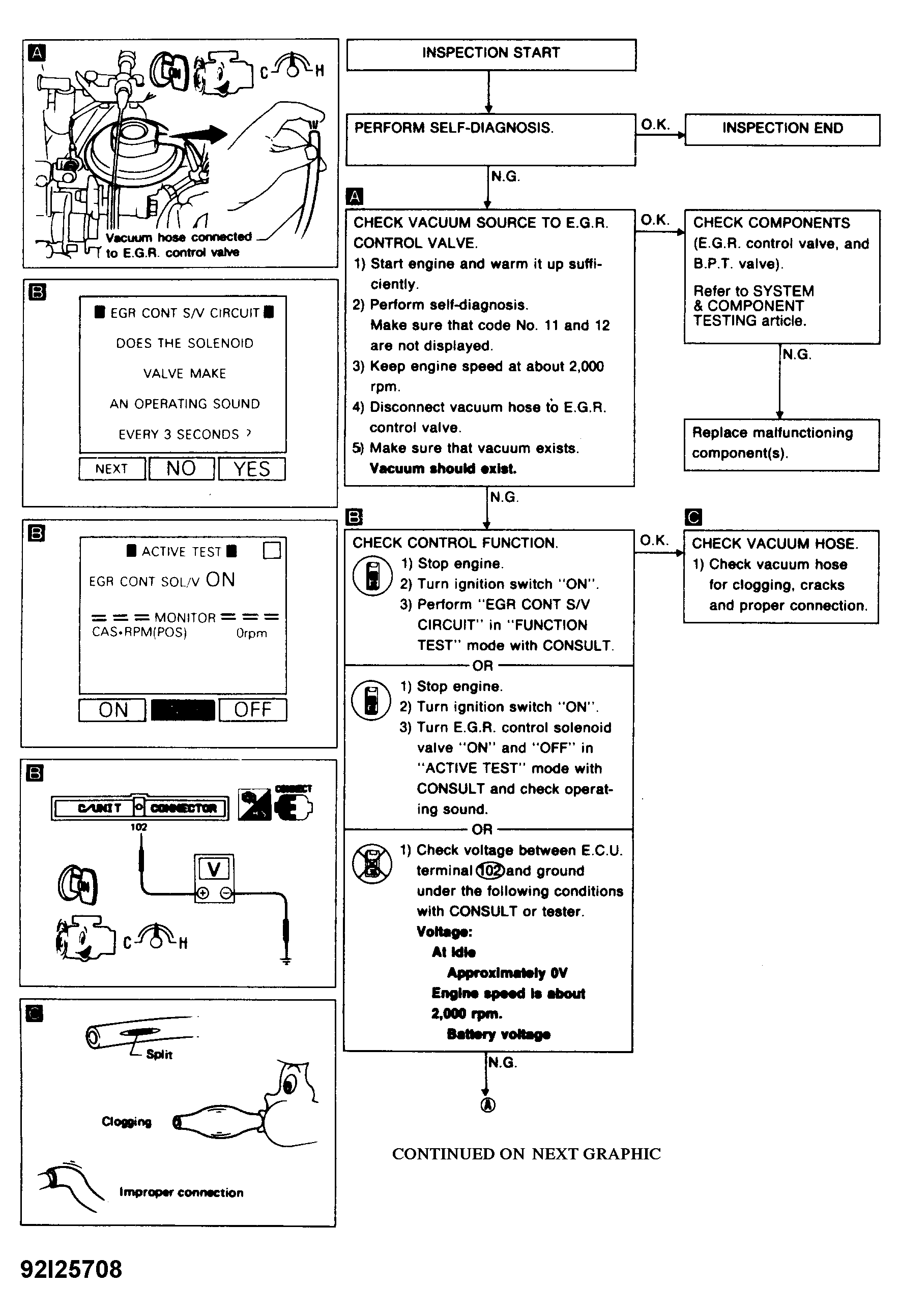

Fig 3: Code 32 Flow Chart (1 of 2) - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.

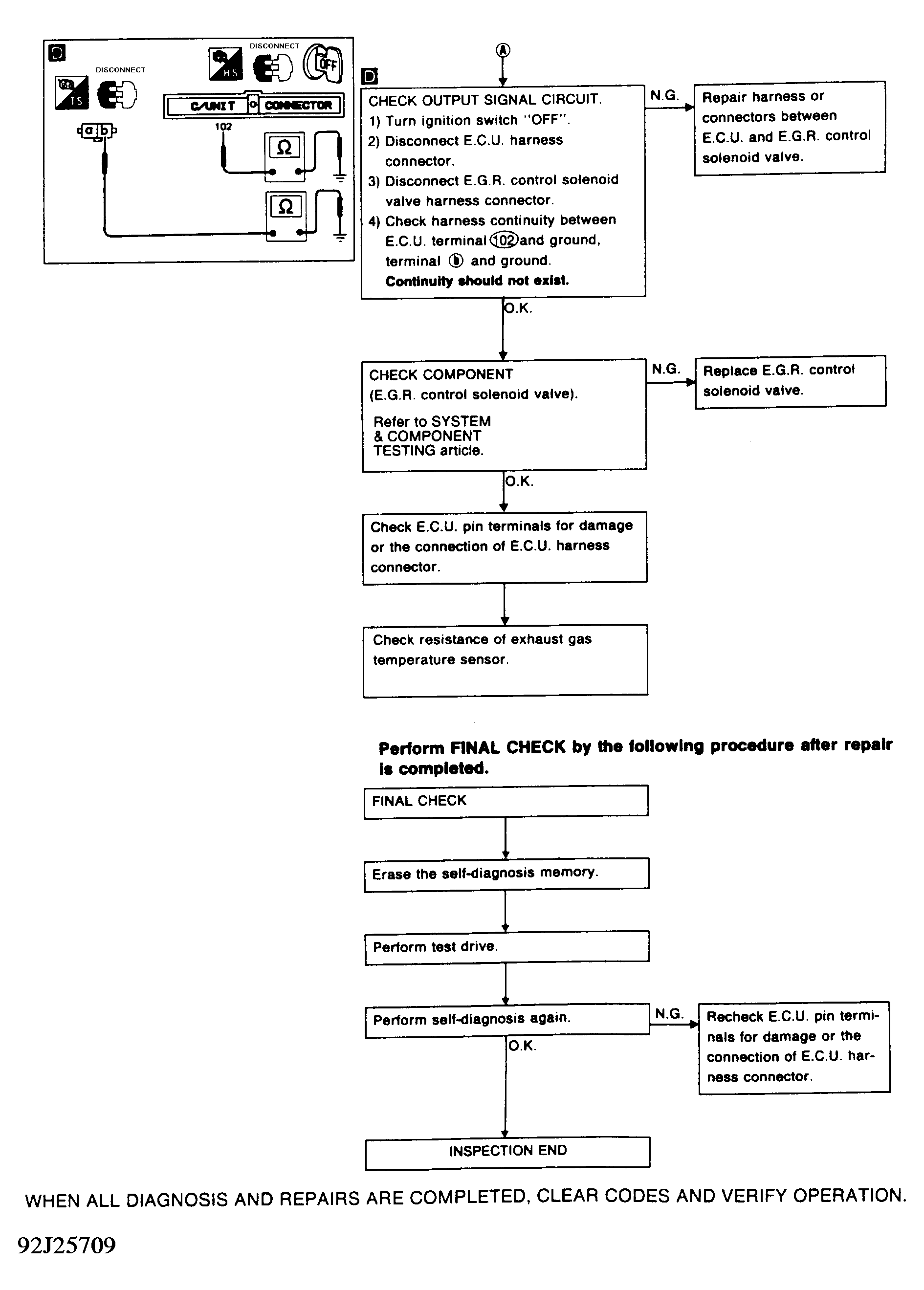

Fig 4: Code 32 Flow Chart (2 of 2) - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.
