DTC 45 - Injector Leak

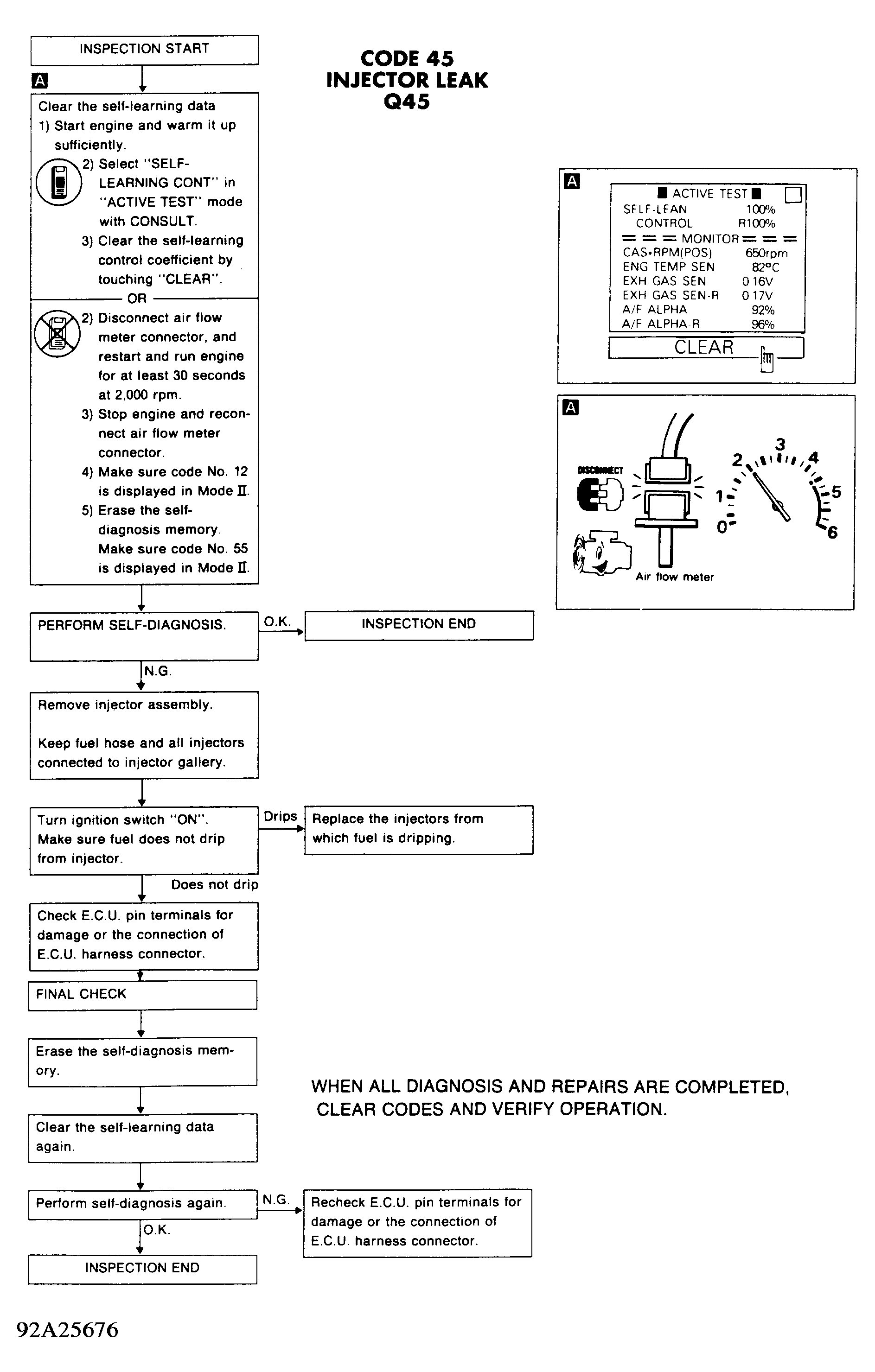

Fig 1: Code 45 Flow Chart - Injector Leak
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
