Ground Circuit

  1. Turn ignition off. Disconnect power transistor and ignition coil harness connectors. Check continuity between ignition coil terminal "b" to power transistor terminal "e" (Green/Yellow wire). See Fig 1 .
  2. Connect ohmmeter leads between power transistor terminal "d" and ground. See Fig 1 . If continuity does not exist at all these terminals, check and repair wiring harness or connectors.

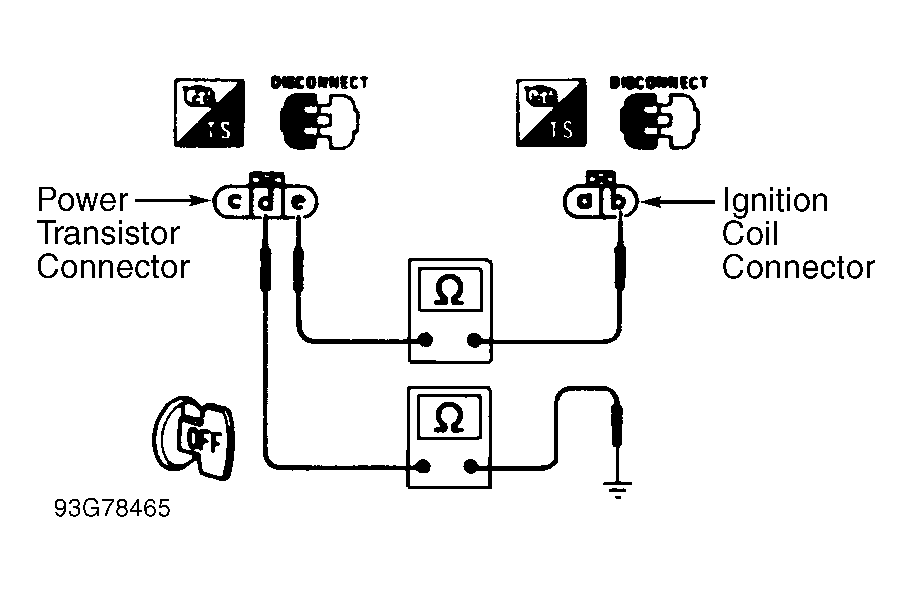

Fig 1: Checking Ground Circuit (G20)
G93G78465Courtesy of NISSAN MOTOR CO., U.S.A.
