Power Transistor

Disconnect power transistor harness connector. Using digital ohmmeter, check power transistor continuity. See Fig 1 . Replace power transistor if results are not as specified.

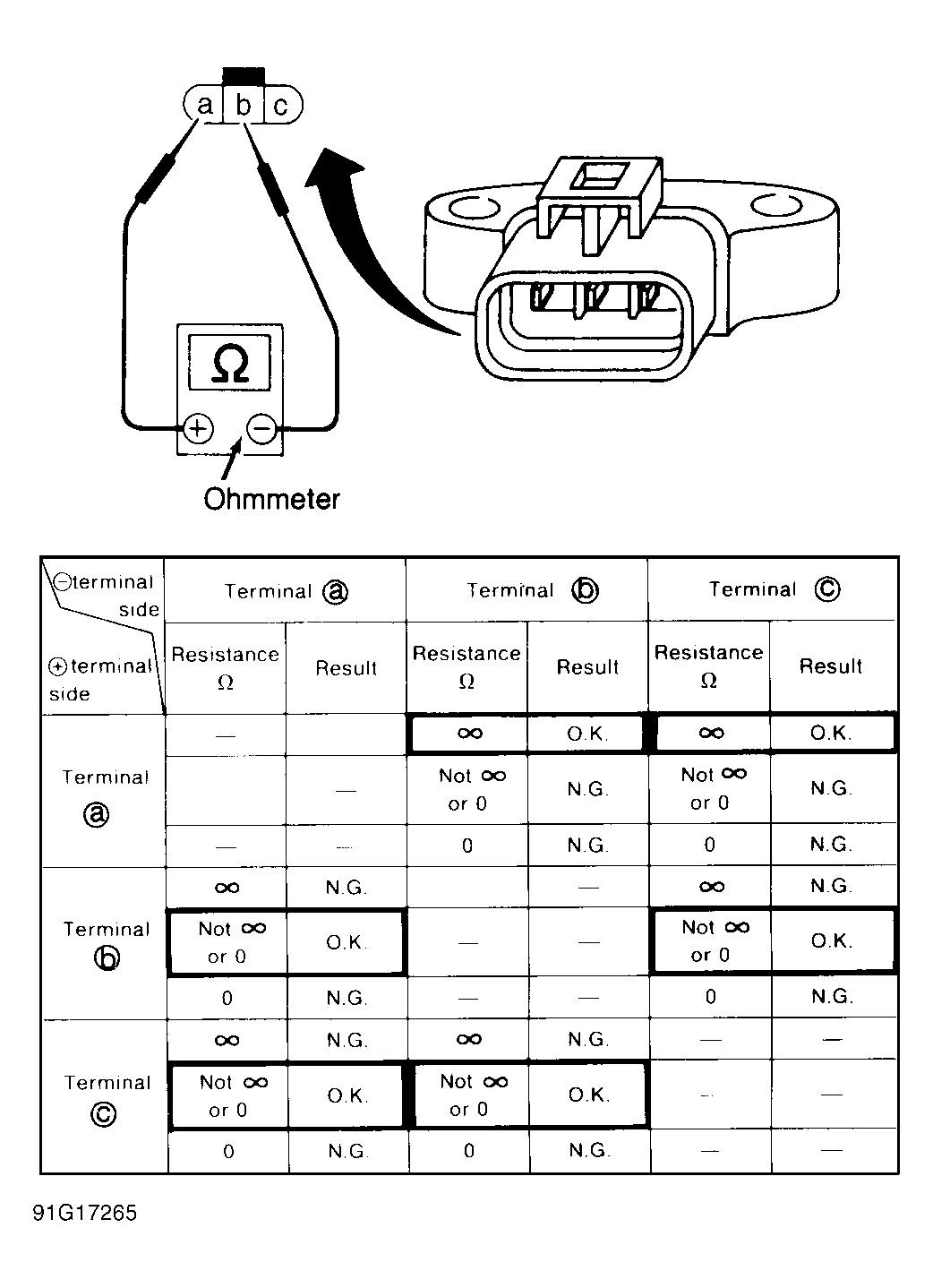

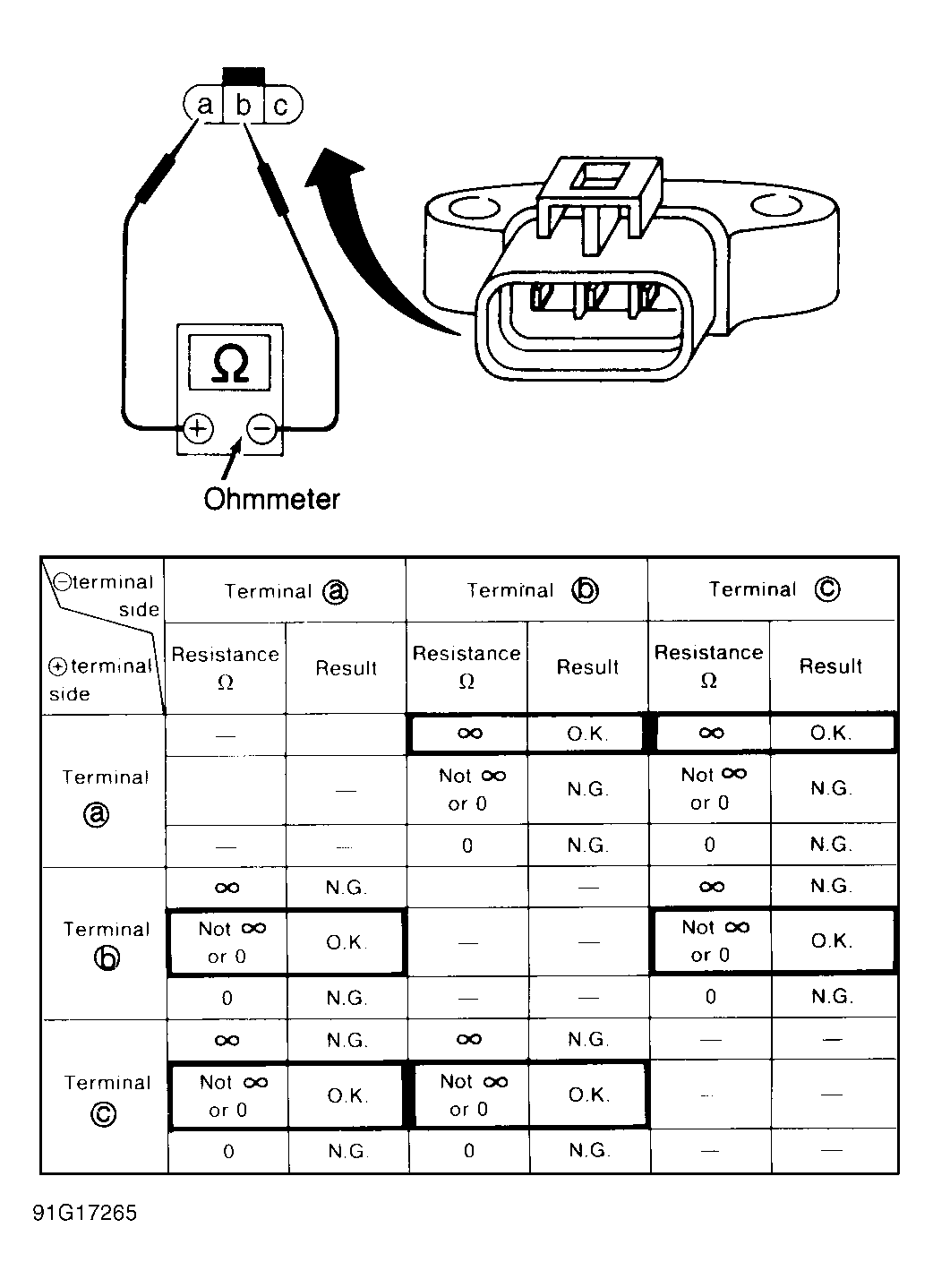

Fig 1: Checking Power Transistor Circuit (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.
