Component Locations

When locating components, refer to the following diagrams. See Fig 1 -Fig 3 .

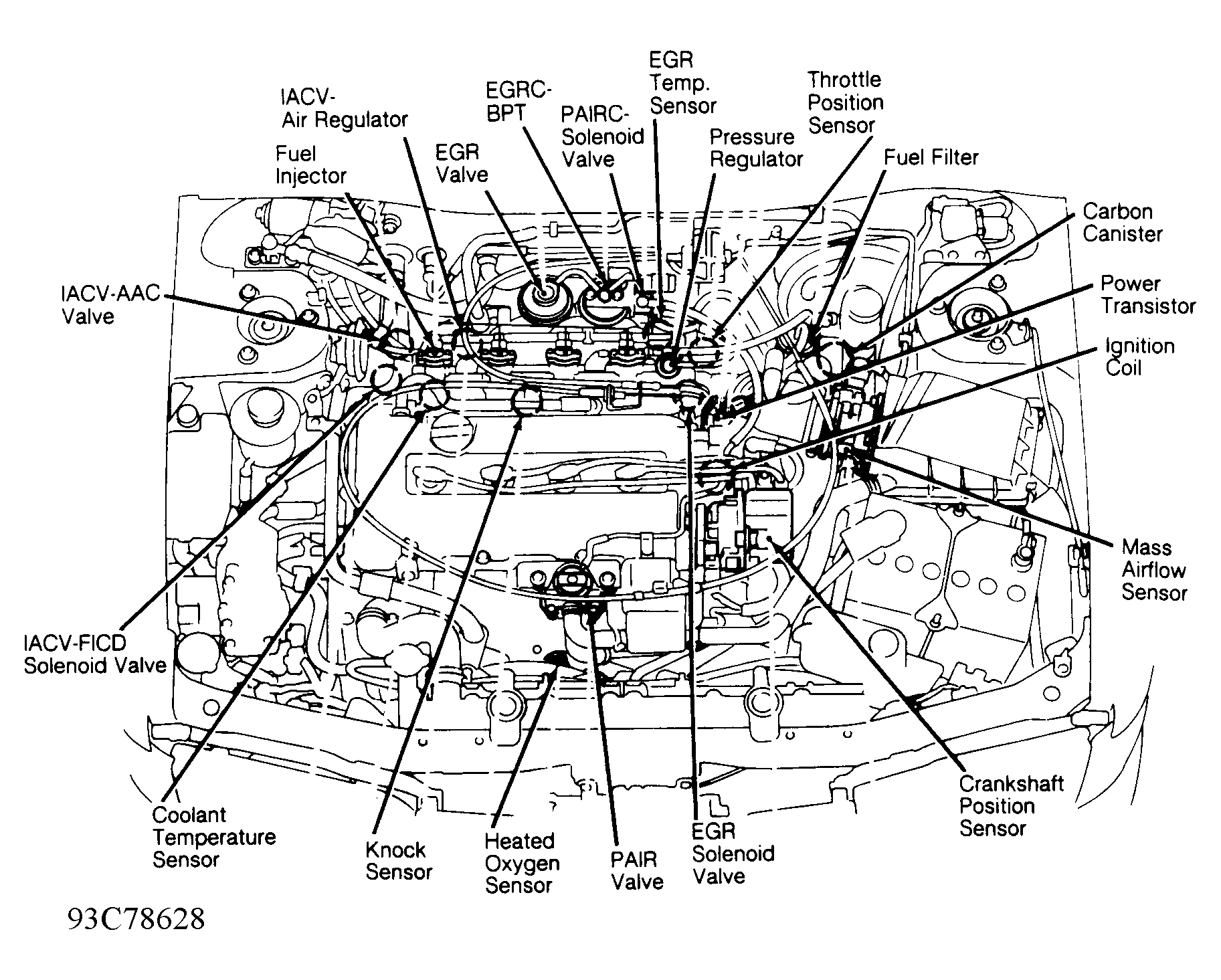

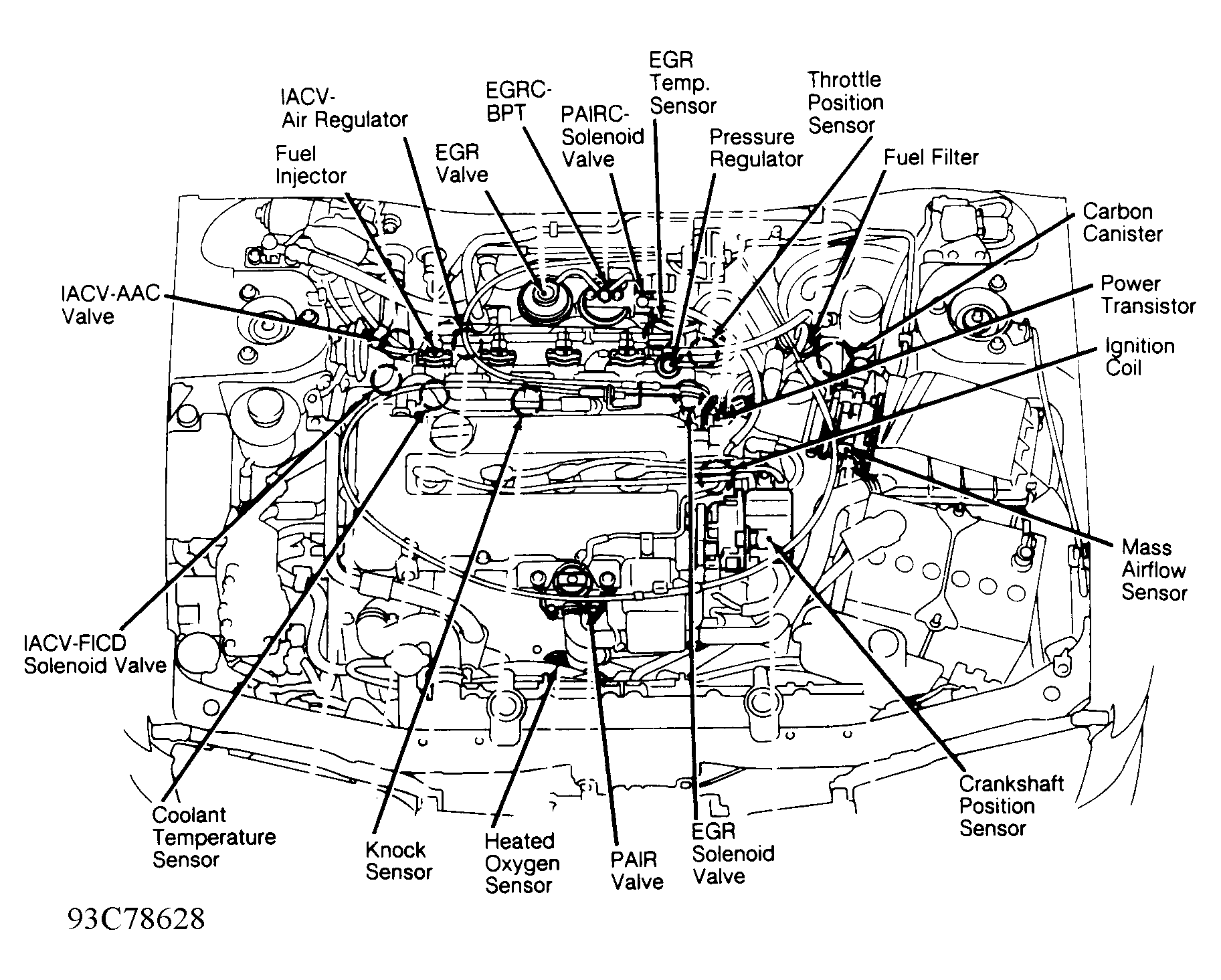

Fig 1: Underhood Engine Performance Component Location ID (G20)
G93C78628Courtesy of NISSAN MOTOR CO., U.S.A.

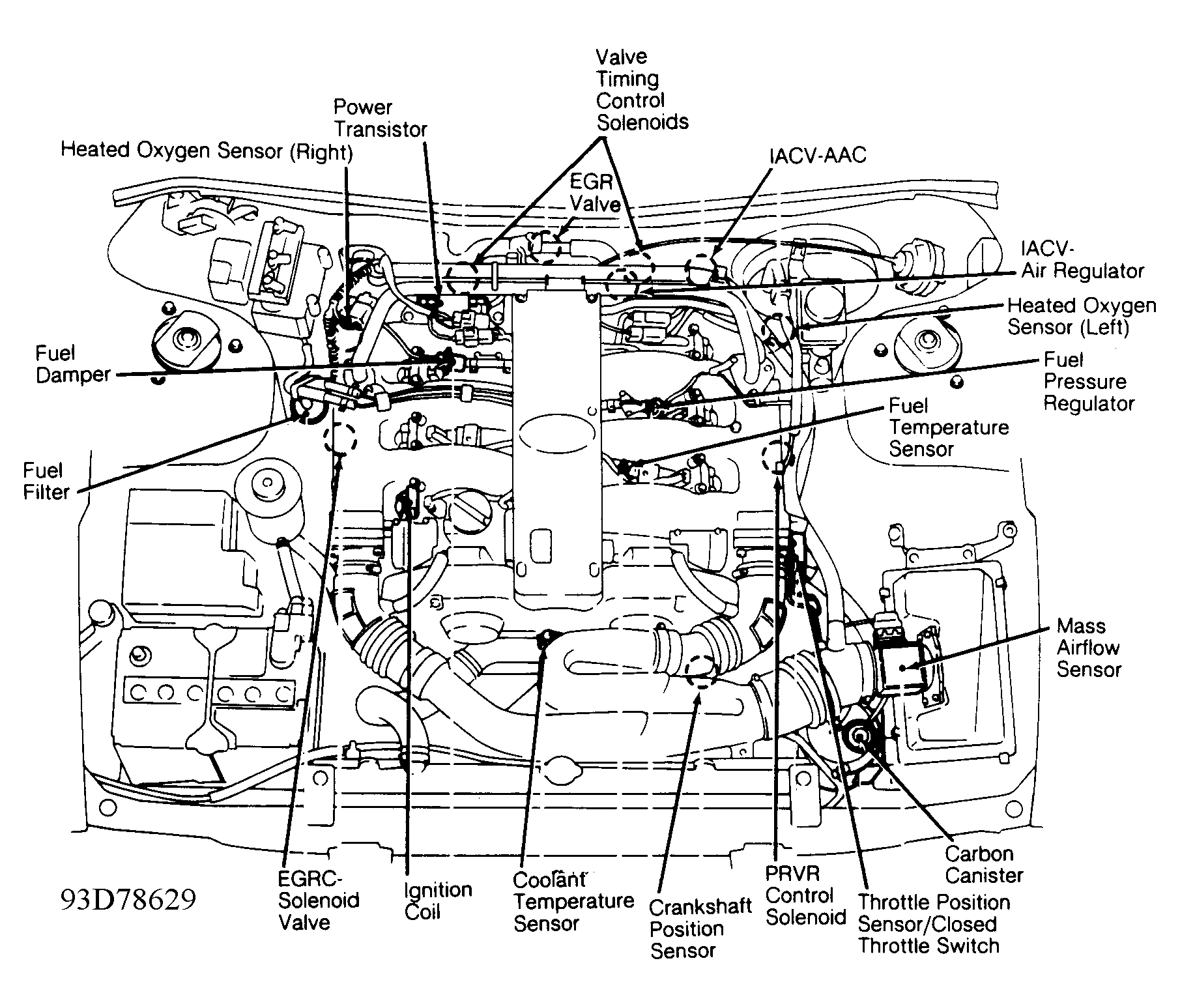

Fig 2: Underhood Engine Performance Component Location ID (J30)
G93D78629Courtesy of NISSAN MOTOR CO., U.S.A.

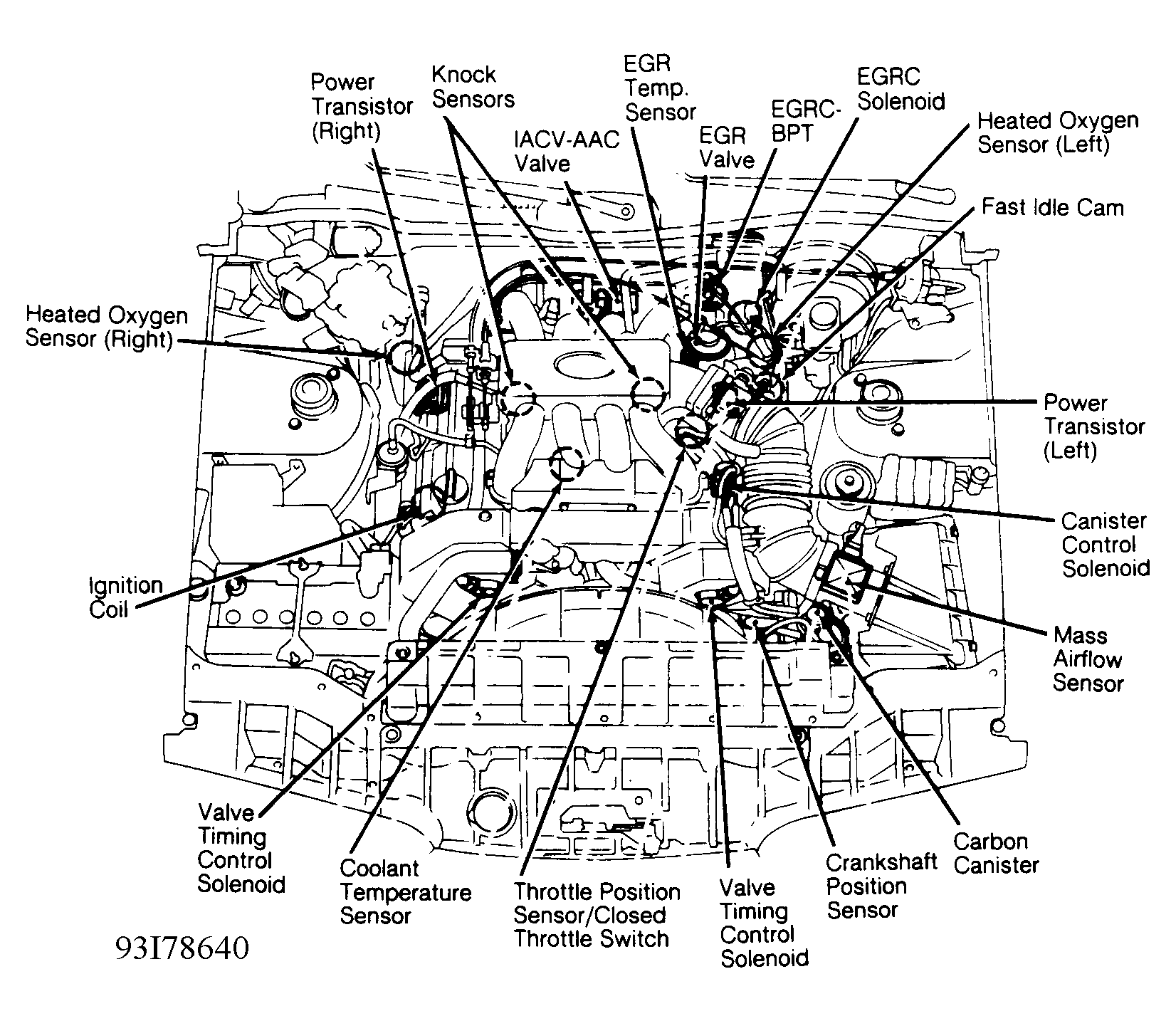

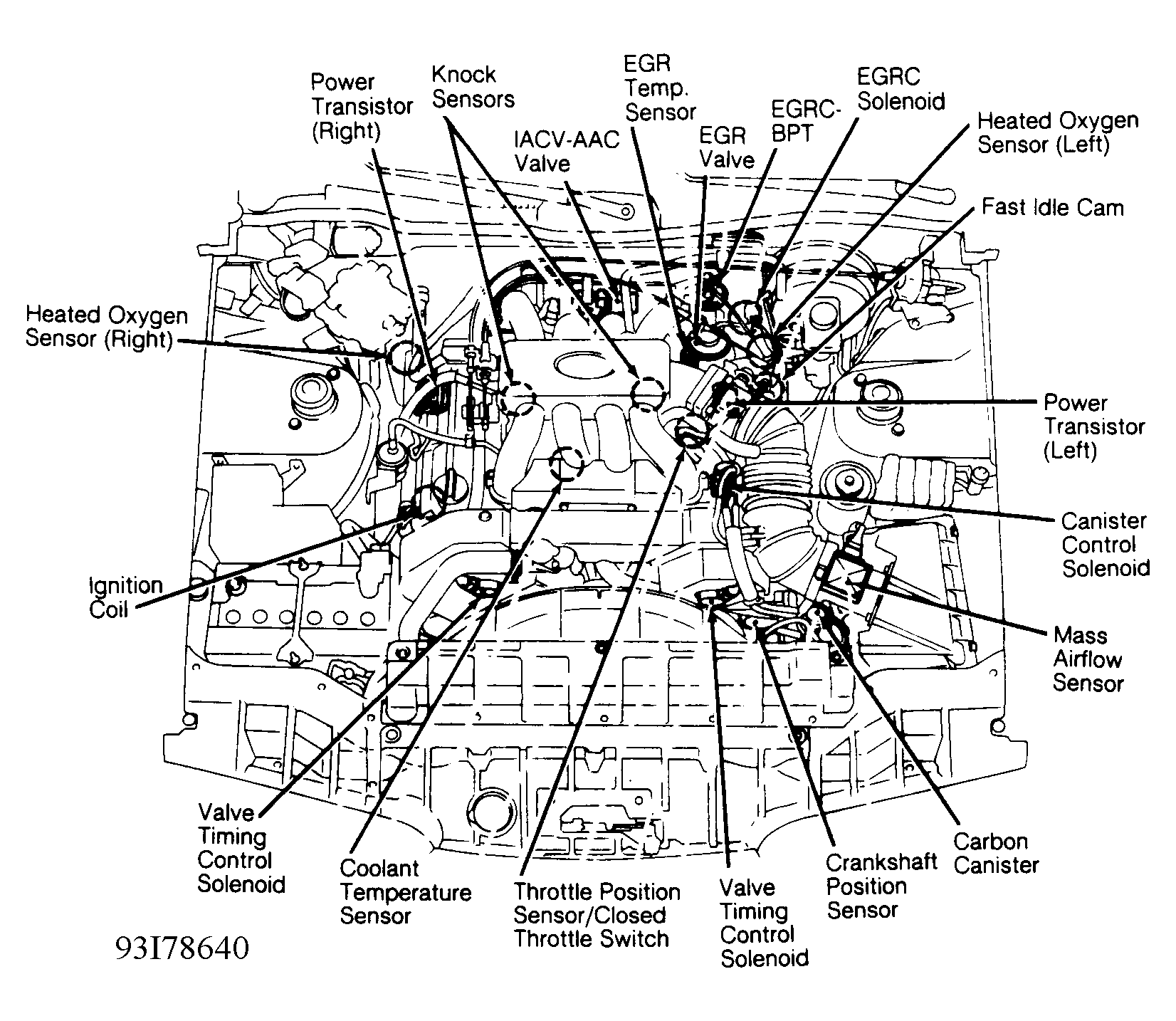

Fig 3: Underhood Engine Performance Component Location ID (Q45)
G93I78640Courtesy of NISSAN MOTOR CO., U.S.A.
