Ignition Coil Resistance

Disconnect ignition coil harness connector. Using ohmmeter, check resistance between coil terminals No. 1 and 2 (cylinders No. 1 and 2) and terminals No. 2 and 3 (cylinders No. 3 and 8). See Fig 1 . Resistance should be approximately .7 ohm. If resistance is not as specified, replace ignition coil.

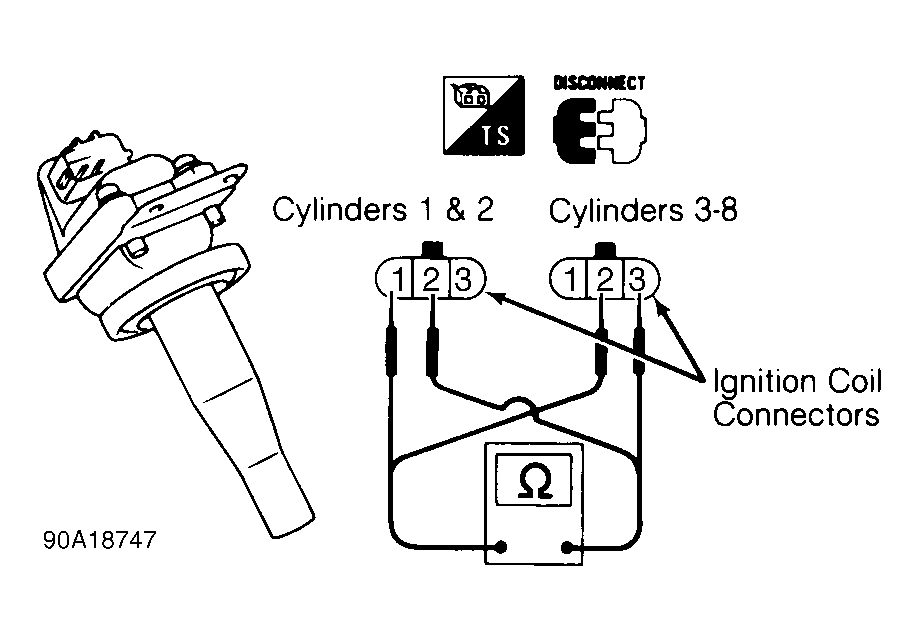

Fig 1: Checking Ignition Coil Resistance (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
