Component Locations
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| A/C Auto Amplifier | Under Instrument Panel, To Left Of Center Console | ||
| Interior Fuse Block | (1) Behind Driver-Side Kick Panel | ||
| Rear Door Switch Relay | Under Instrument Panel, To Left Of Center Console | ||
| Rear Window Defogger Relay | Engine Compartment Fuse/Relay Box | ||
| Taillight Relay | Behind Driver-Side Kick Panel | ||

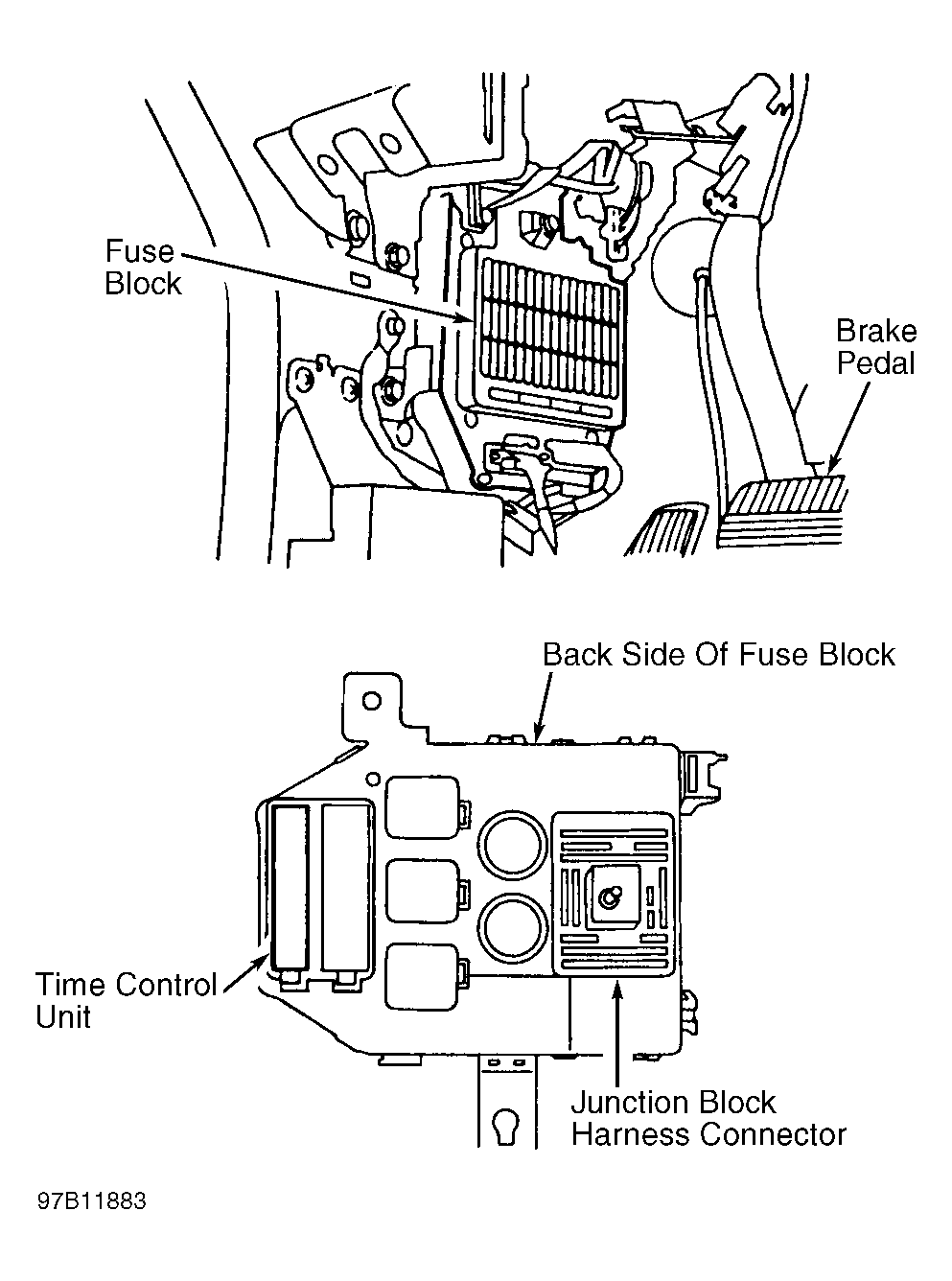

| Time Control Unit (TCU) | (1) Behind Driver-Side Kick Panel, Attached To Interior Fuse Block | ||
| Warning Chime | Behind Instrument Cluster | ||
| Wiper Relay | Engine Compartment Fuse/Relay Box | ||
|
|||
