Throttle Position (TP) Sensor

Ensure engine is warmed to normal operating temperature. Disconnect throttle position sensor harness connector. See Fig 1 . Check resistance between connector terminals No. 2 and 3.
If continuity is not correct, slightly loosen TP sensor mounting bolts. Rotate sensor body until resistance is correct. Tighten mounting bolts, and recheck resistance reading. If resistance is not as specified, replace TP sensor.

THROTTLE POSITION (TP) SENSOR RESISTANCE

Throttle Position

⁽¹⁾ Ohms

J30

Fully Closed

500

Partially Opened

500-4000

Fully Opened

4000

⁽¹⁾	Approximate values are given.

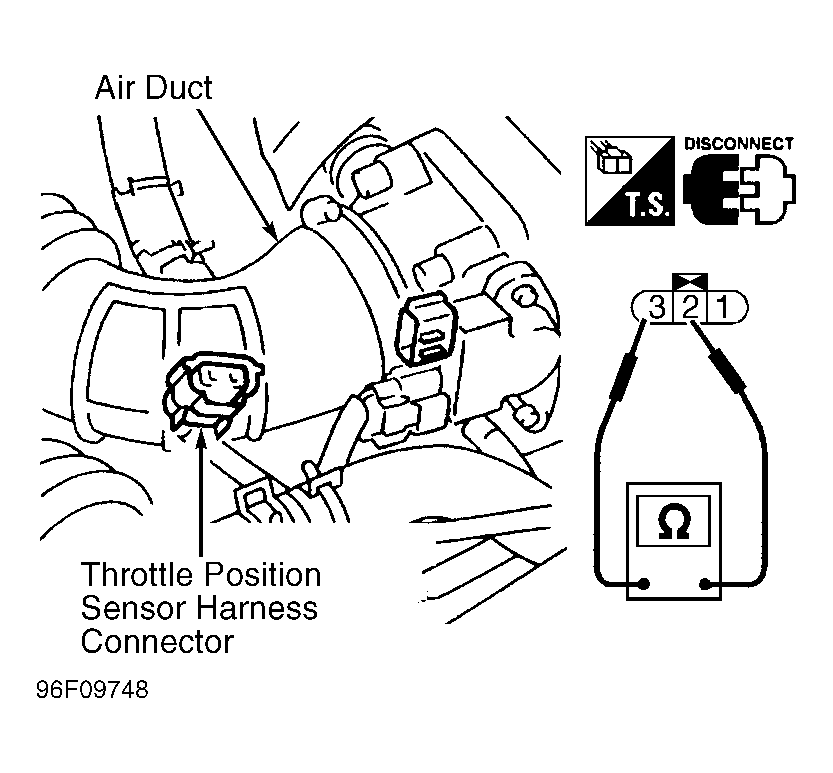

Fig 1: Checking Throttle Position (TP) Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.
