Component Locations
COMPONENT LOCATIONS
Component
Location
Multi-Remote Control Relays
(1)
Engine Compartment Relay Box
Smart Entrance Control Unit
To Right Of Passenger Compartment Fuse Block
(1)
See
Fig 1
.

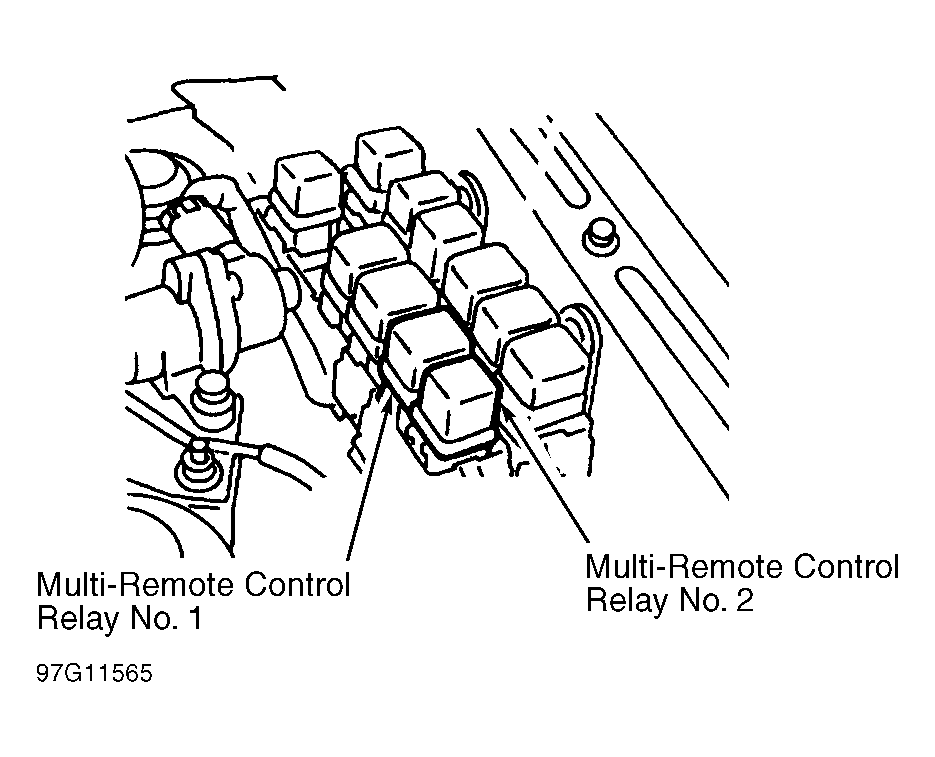

Fig 1: Locating Multi-Remote Control Relays
Courtesy of NISSAN MOTOR CO., U.S.A.
