System Tests

NOTE: Check data lines before proceeding with any trouble shooting or diagnostic procedures. See LAN COMMUNICATION CHECK under SELF-DIAGNOSTIC SYSTEM in appropriate MULTIPLEX CONTROL SYSTEMS article.

WIRE COLOR ABBREVIATIONS⁽¹⁾

Abbreviation

Color

B

Black

G

Green

L

Blue

P

Pink

R

Red

Y

Yellow

OR

Orange

PU

Purple

⁽¹⁾	Listed wire color abbreviations are used in the following system tests.

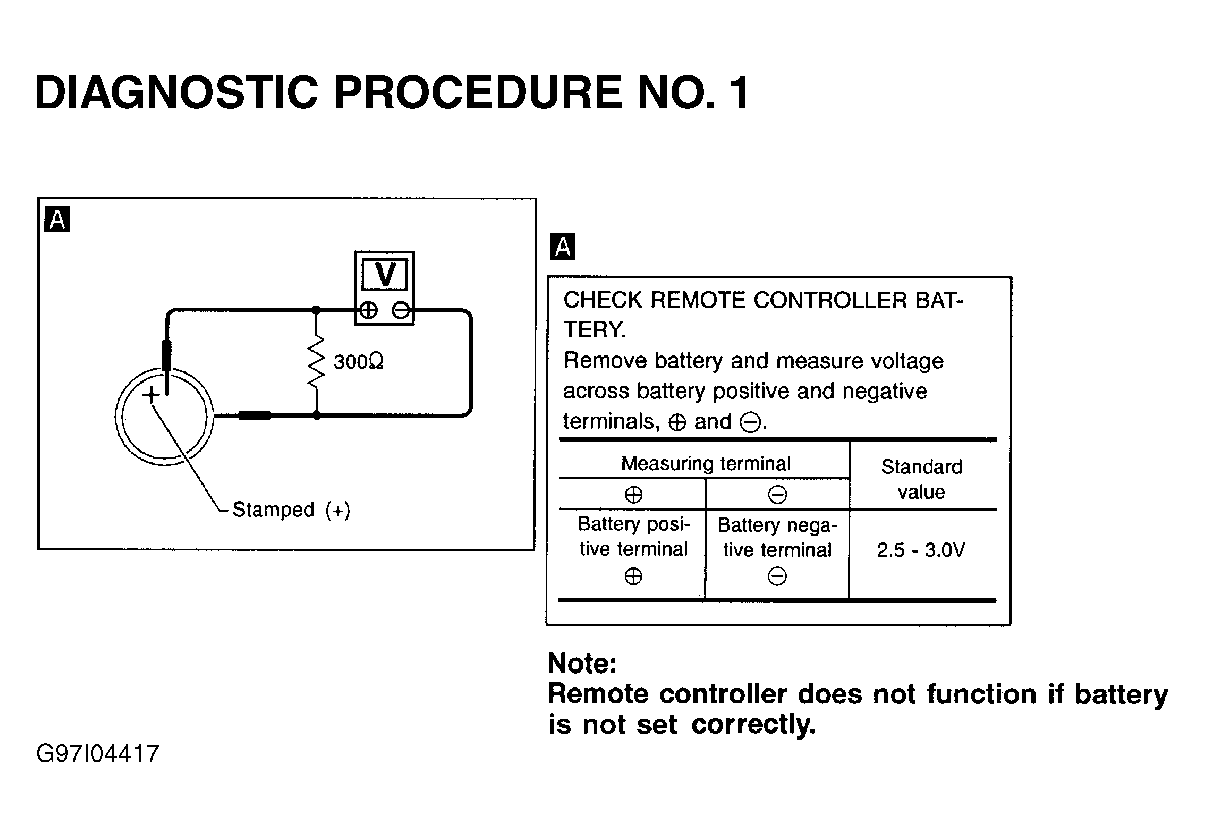

Fig 1: Diagnostic Procedure No. 1

G97I04417

Courtesy of NISSAN MOTOR CO., U.S.A.

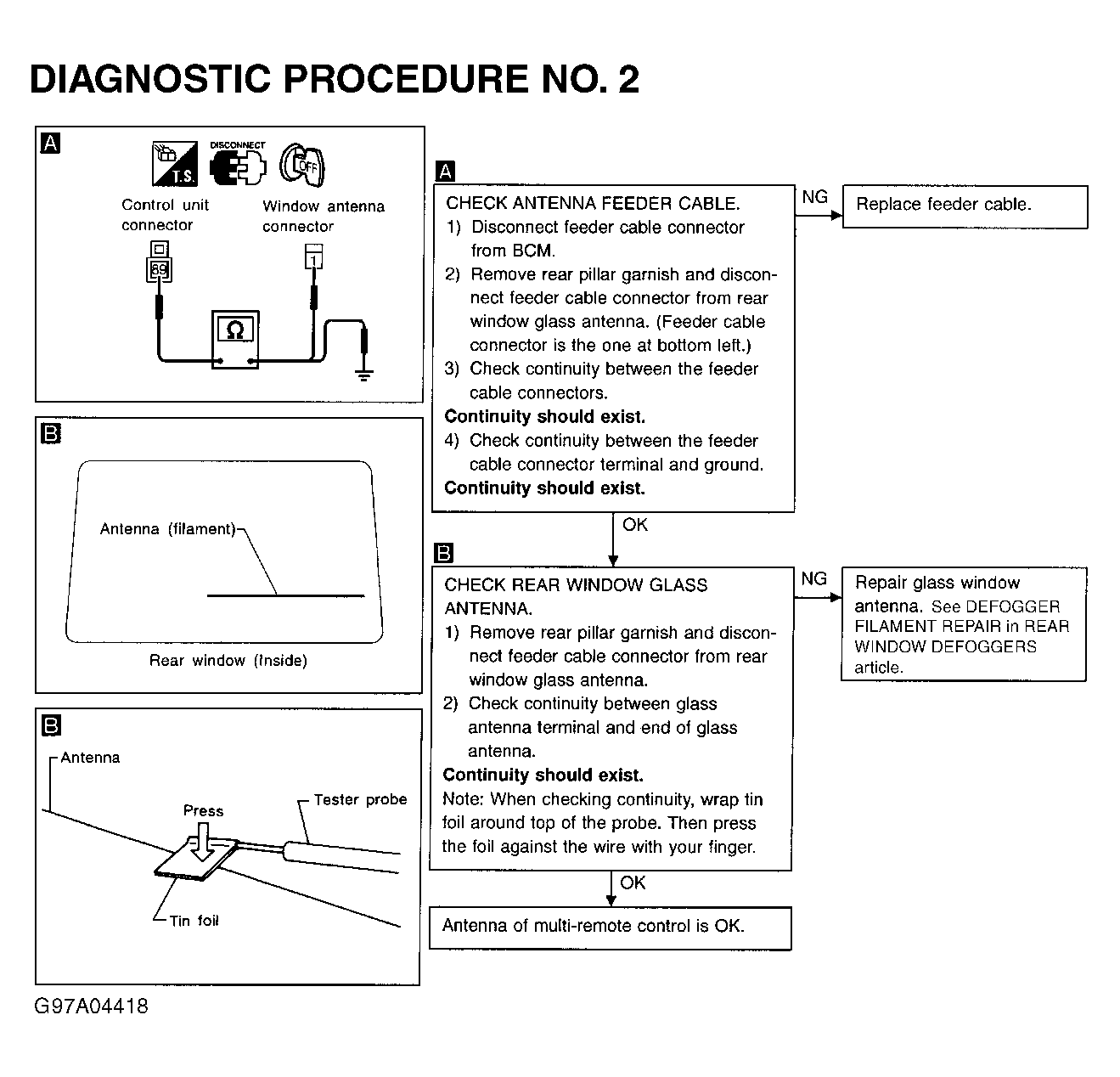

Fig 2: Diagnostic Procedure No. 2

G97A04418

Courtesy of NISSAN MOTOR CO., U.S.A.

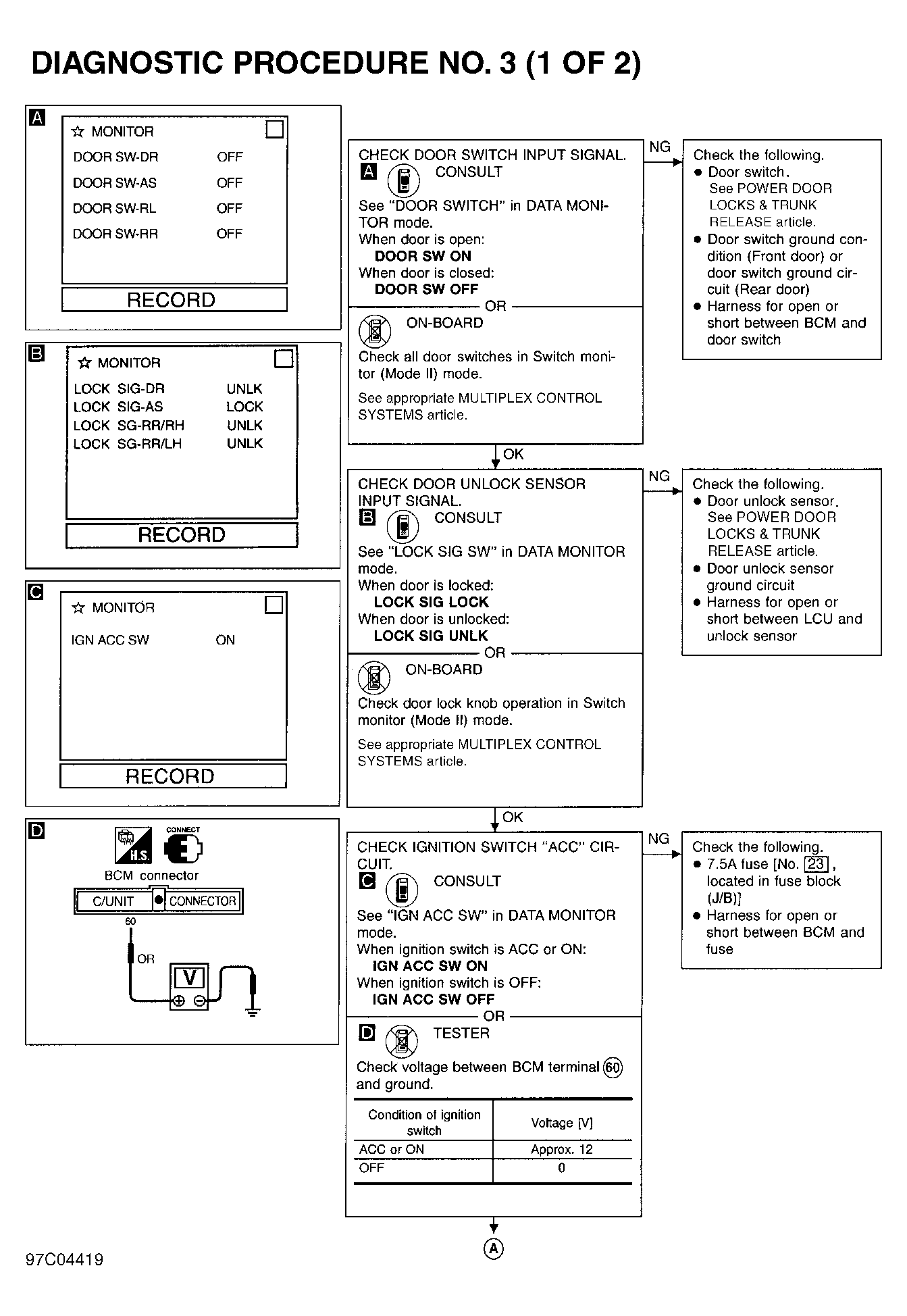

Fig 3: Diagnostic Procedure No. 3 (1 Of 2)

G97C04419

Courtesy of NISSAN MOTOR CO., U.S.A.

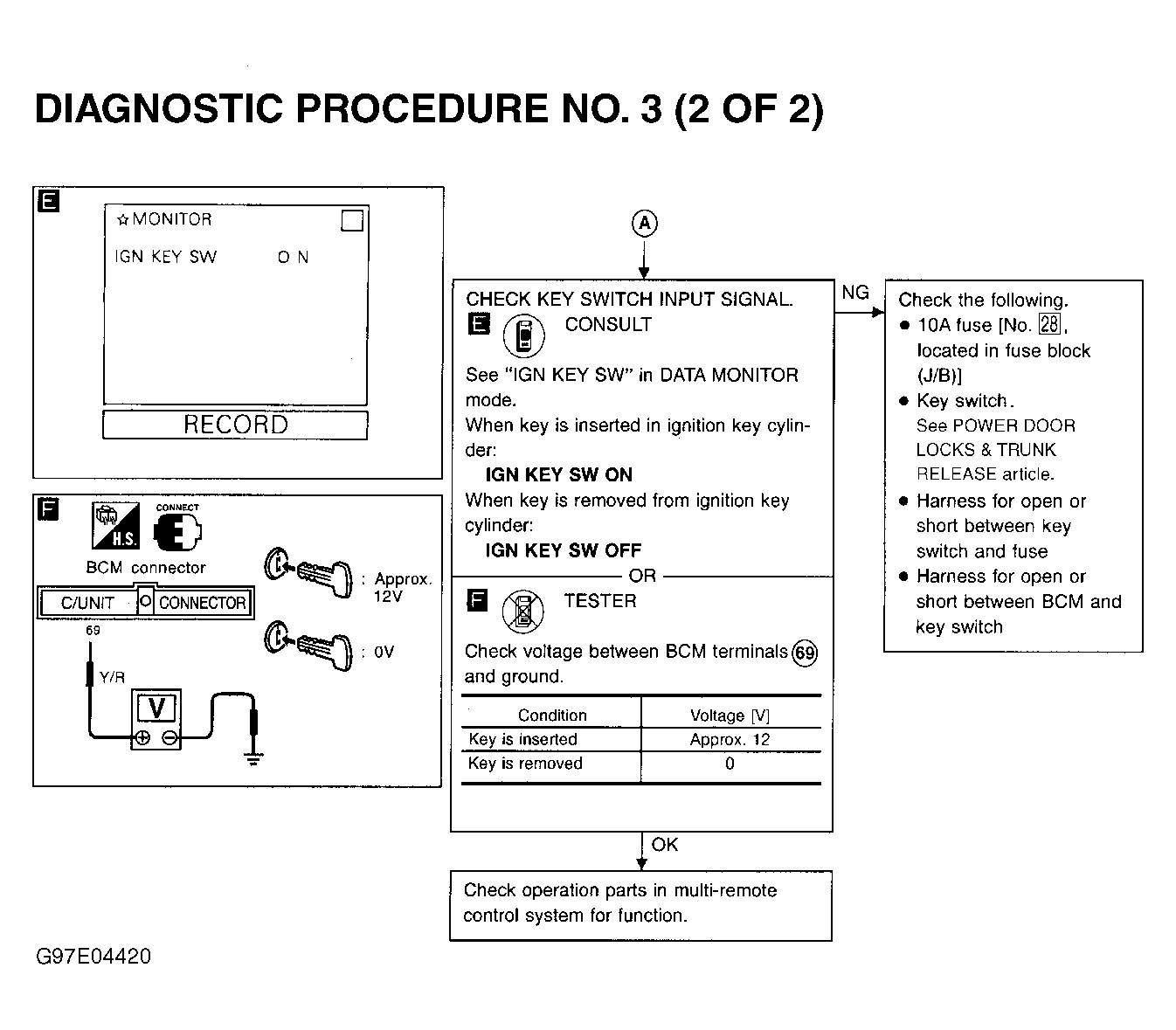

Fig 4: Diagnostic Procedure No. 3 (2 Of 2)

G97E04420

Courtesy of NISSAN MOTOR CO., U.S.A.

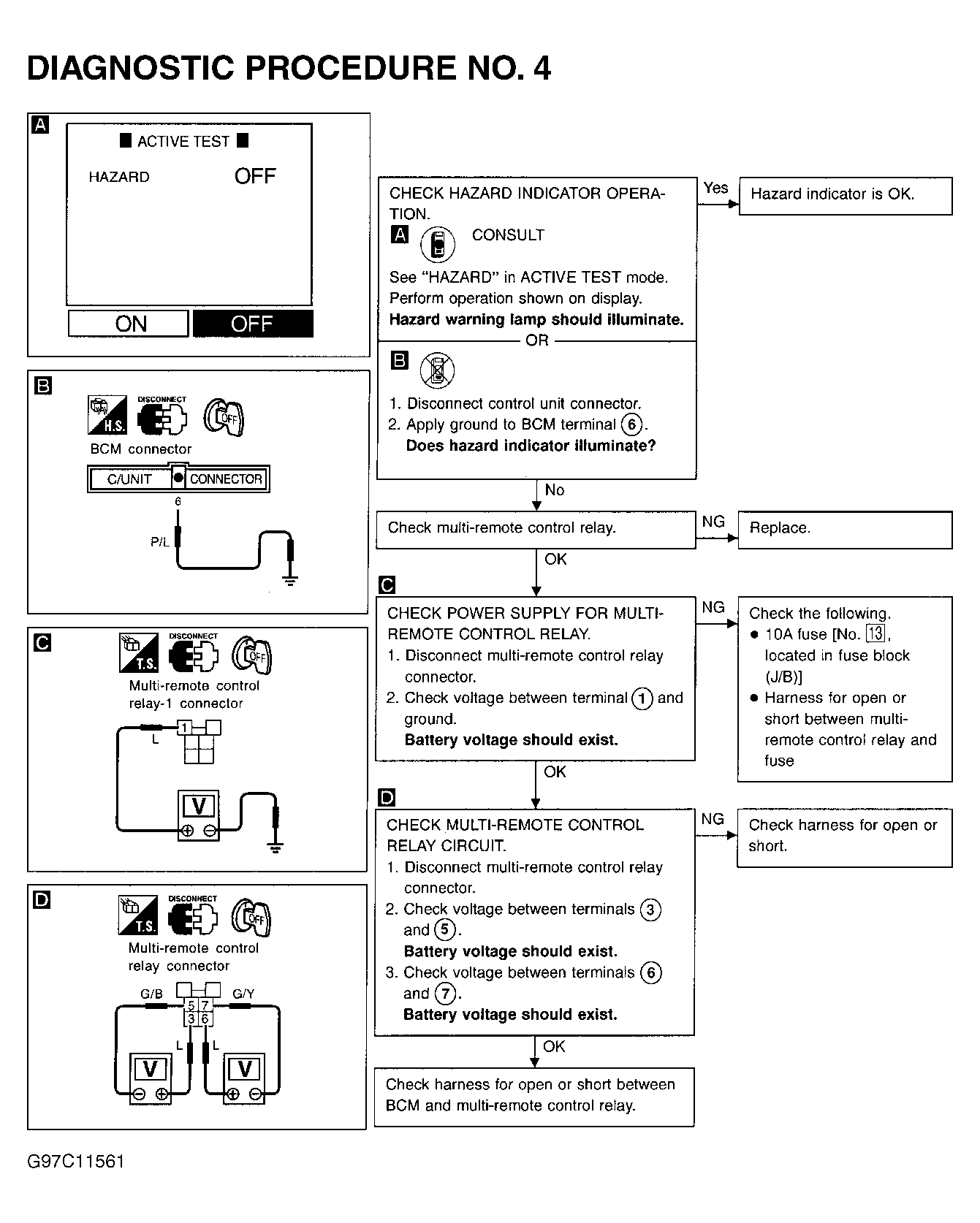

Fig 5: Diagnostic Procedure No. 4

G97C11561

Courtesy of NISSAN MOTOR CO., U.S.A.

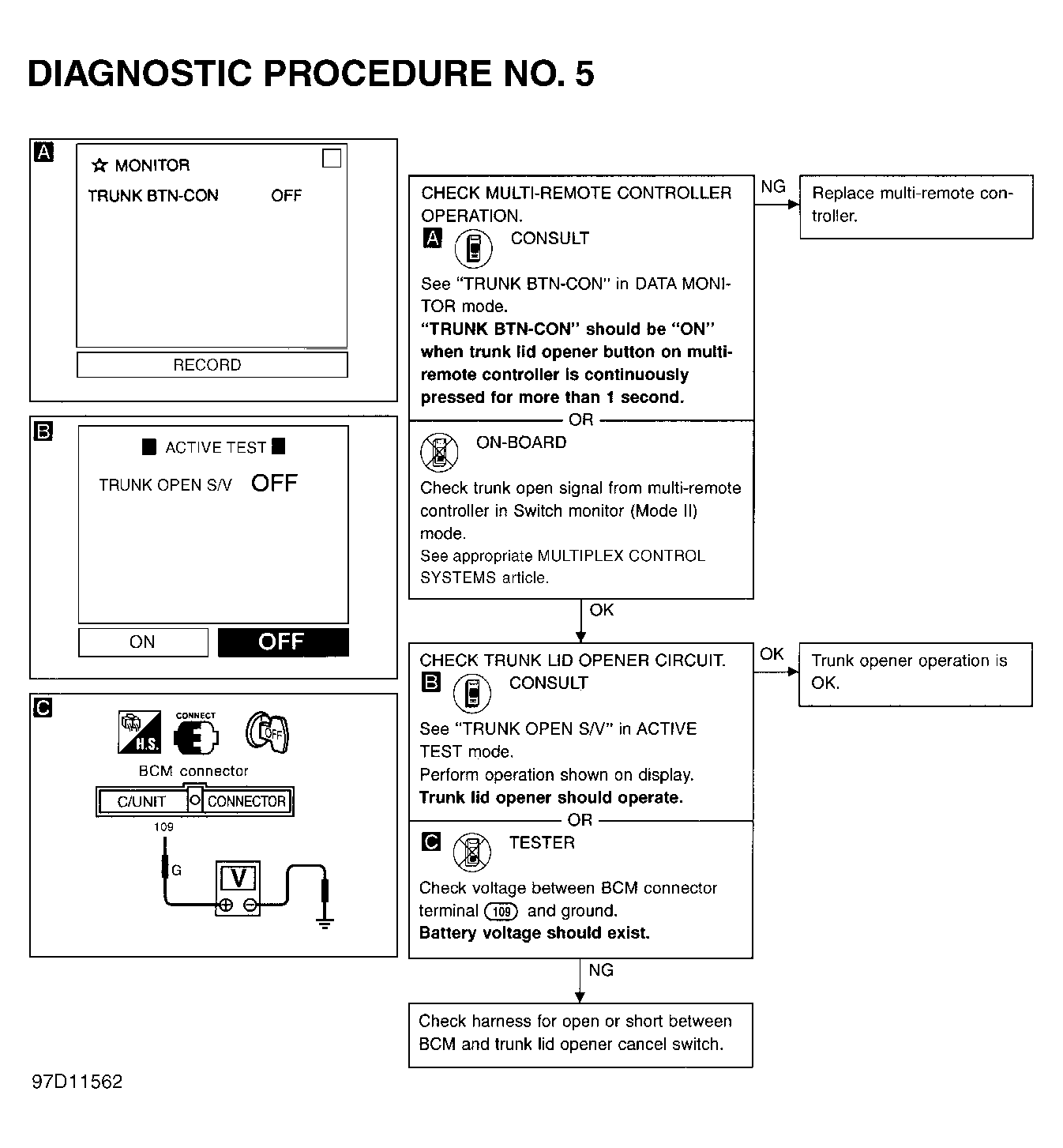

Fig 6: Diagnostic Procedure No. 5

G97D11562

Courtesy of NISSAN MOTOR CO., U.S.A.

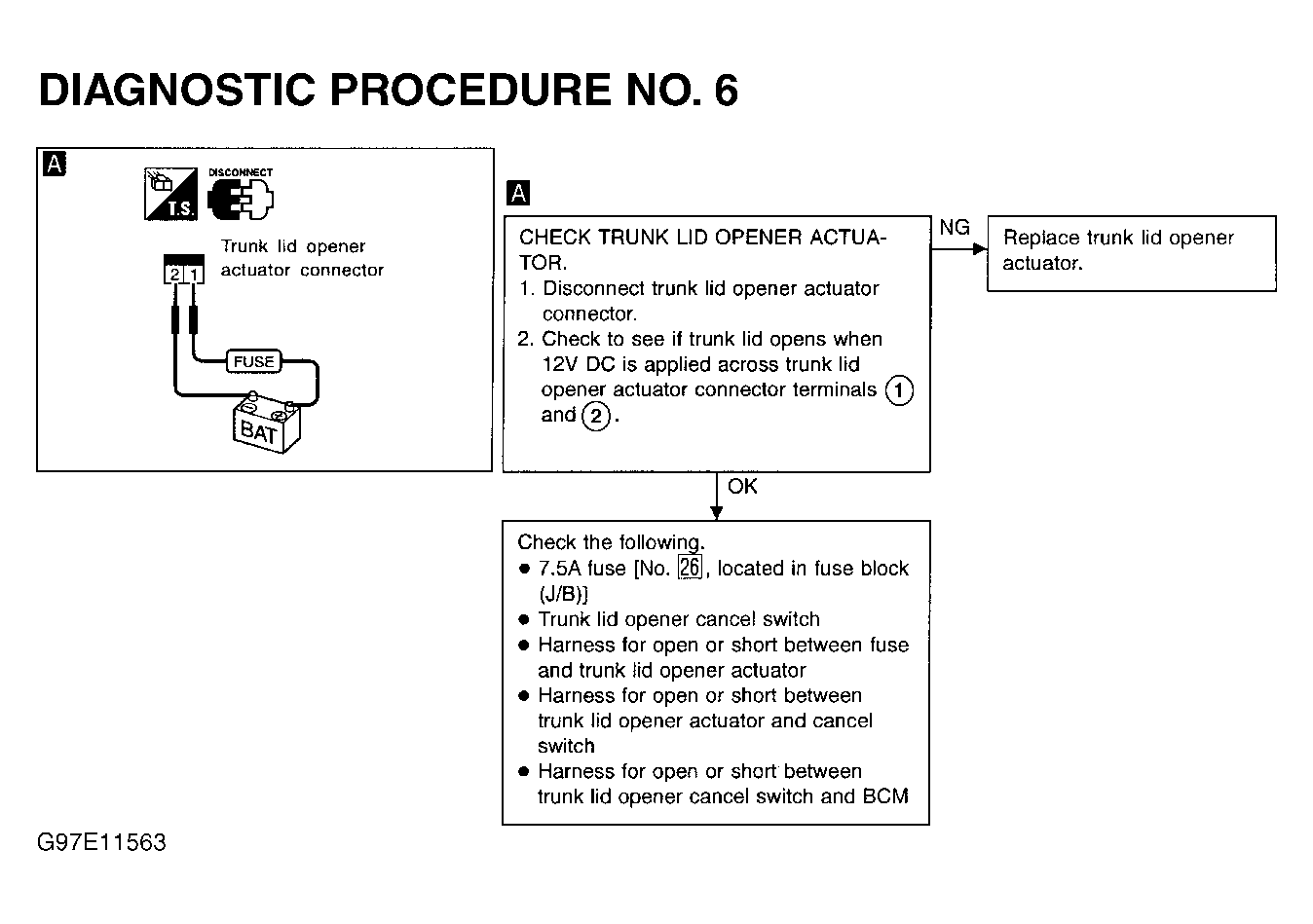

Fig 7: Diagnostic Procedure No. 6

G97E11563

Courtesy of NISSAN MOTOR CO., U.S.A.
