Throttle Position (TP) Sensor: Notes

Ensure engine is warmed to normal operating temperature. Disconnect throttle position sensor harness connector. See Fig 1 or Fig 2 . On I30, check resistance between connector terminals No. 2 and 3. On Q45, check resistance between connector terminals No. 1 and 2.
On all models, if continuity is not correct, slightly loosen TP sensor mounting bolts. Rotate sensor body until resistance is correct. Tighten mounting bolts, and recheck resistance reading. If resistance is not as specified, replace TP sensor.

THROTTLE POSITION (TP) SENSOR RESISTANCE

Throttle Position

⁽¹⁾ Ohms

I30

Fully Closed

500

Partially Opened

500-4000

Fully Opened

4000

Q45

Fully Closed

600

Partially Opened

600-4000

Fully Opened

5000

⁽¹⁾	Approximate values are given.

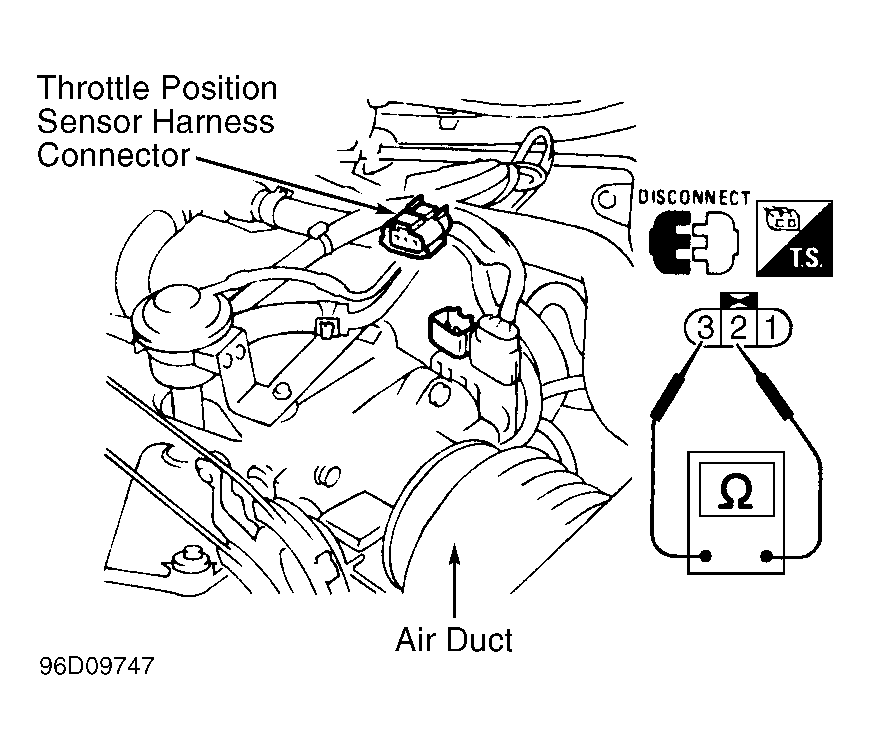

Fig 1: Checking Throttle Position (TP) Sensor Resistance (I30)

Courtesy of NISSAN MOTOR CO., U.S.A.

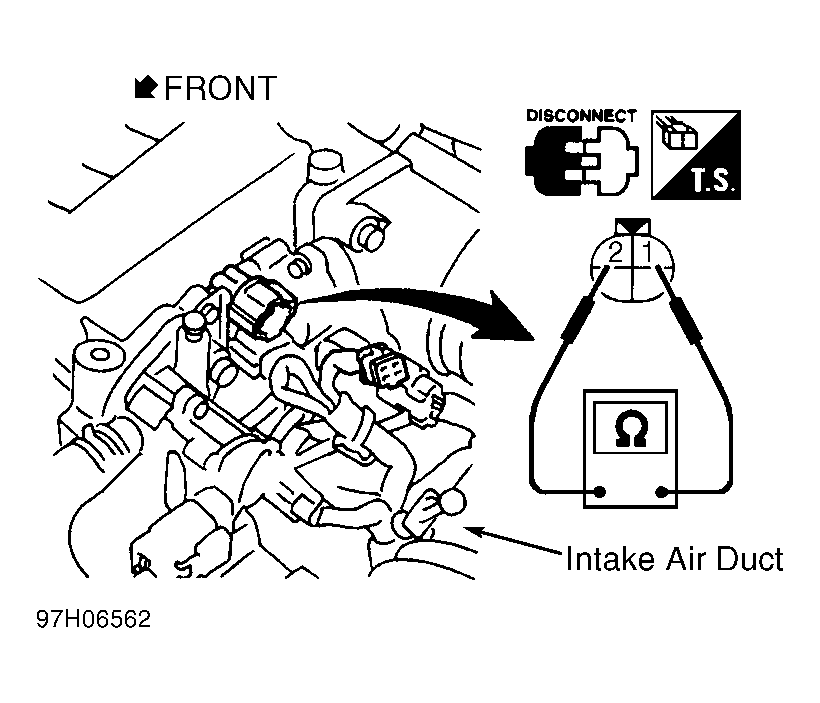

Fig 2: Checking Throttle Position (TP) Sensor Resistance (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
