ECCS Relay (I30 & Q45)

Remove ECCS relay. See Fig 2 or Fig 3 . Connect a 12-volt power source and ground to terminals No. 1 and 2 of relay. See Fig 1 . Using ohmmeter, check continuity between terminals No. 3 and 5. Continuity should exist while relay is energized.
Disconnect power source and repeat continuity check. No continuity should exist. If continuity is not as specified, replace ECCS relay.

Fig 1: Checking ECCS Power Relay Continuity (I30 & Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.

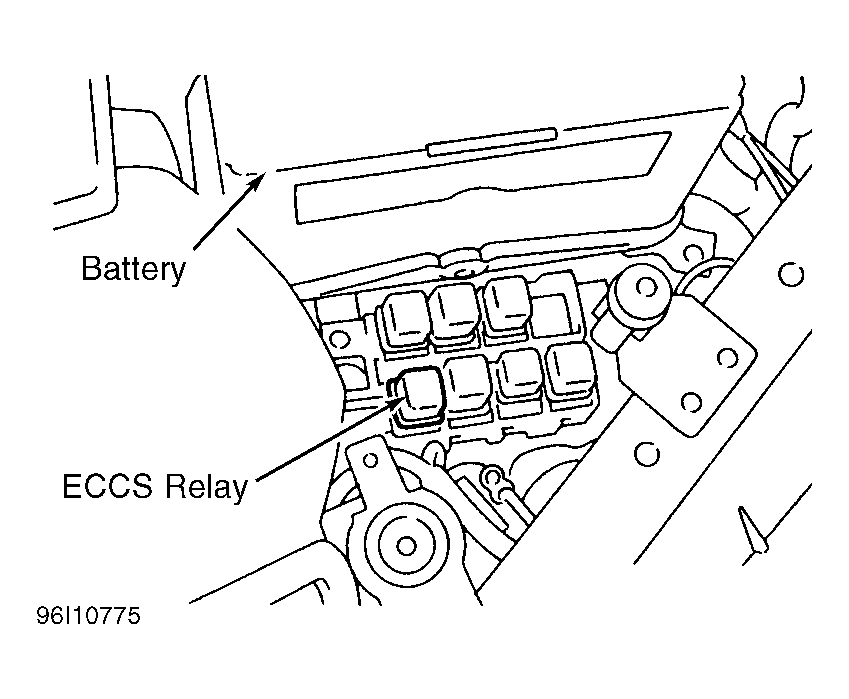

Fig 2: Locating ECCS Power Relay (I30)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating ECCS Relay (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
