Ignition Coil Resistance

  1. On I30, disconnect ignition coil harness connector. Using ohmmeter, check for continuity between coil terminals No. 1 and 2. If continuity is not present, replace ignition coil. See Fig 1 .
  2. On Q45, disconnect ignition coil harness connector. Using ohmmeter, check resistance between coil terminals No. 1 and 2 (cylinders No. 1 and 2) and terminals No. 2 and 3 (cylinders No. 3 and 8). See Fig 2 . Resistance should be approximately .7 ohm. If resistance is not as specified, replace ignition coil.

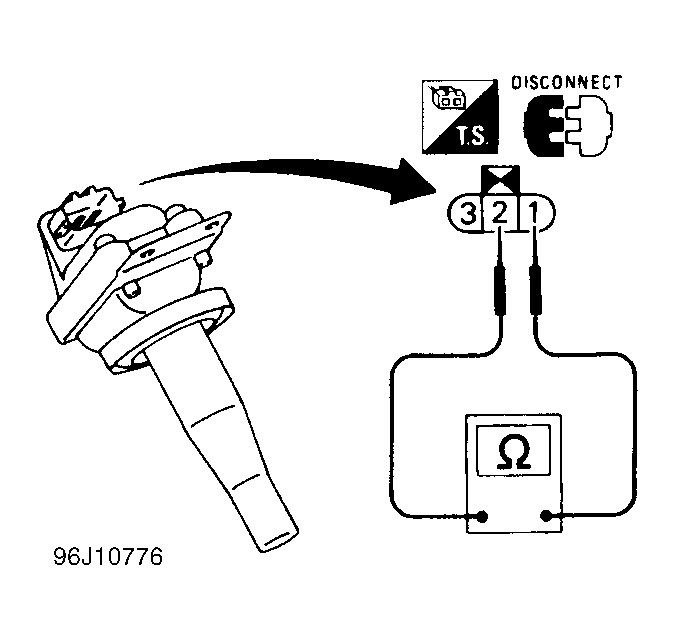

Fig 1: Checking Ignition Coil Resistance (I30)
G96J10776Courtesy of NISSAN MOTOR CO., U.S.A.

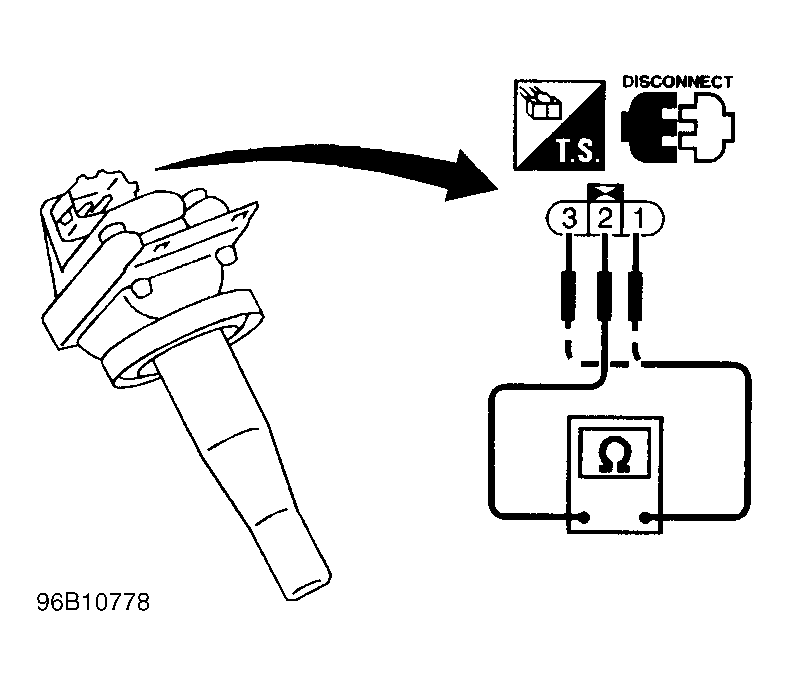

Fig 2: Checking Ignition Coil Resistance (Q45)
G96B10778Courtesy of NISSAN MOTOR CO., U.S.A.
