Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

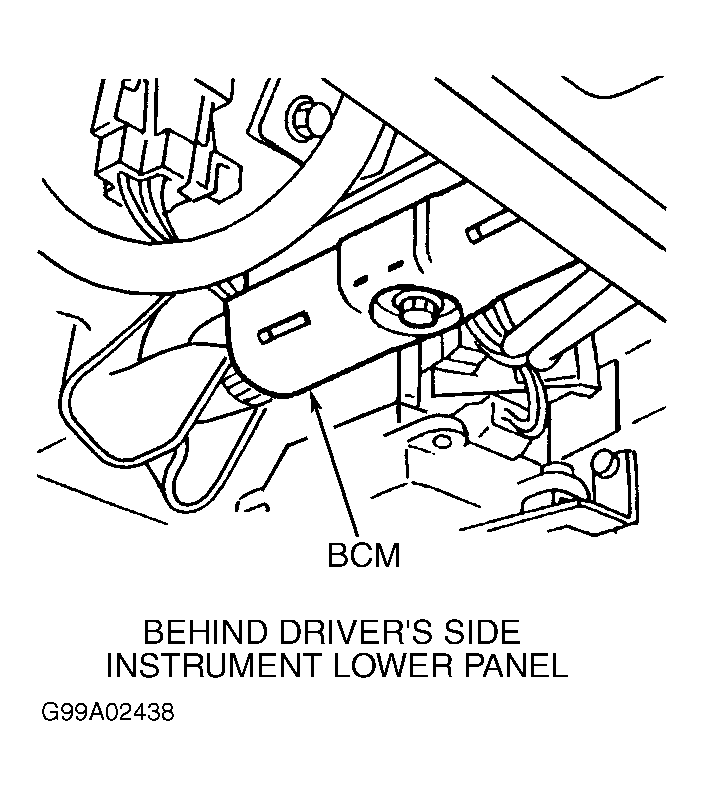

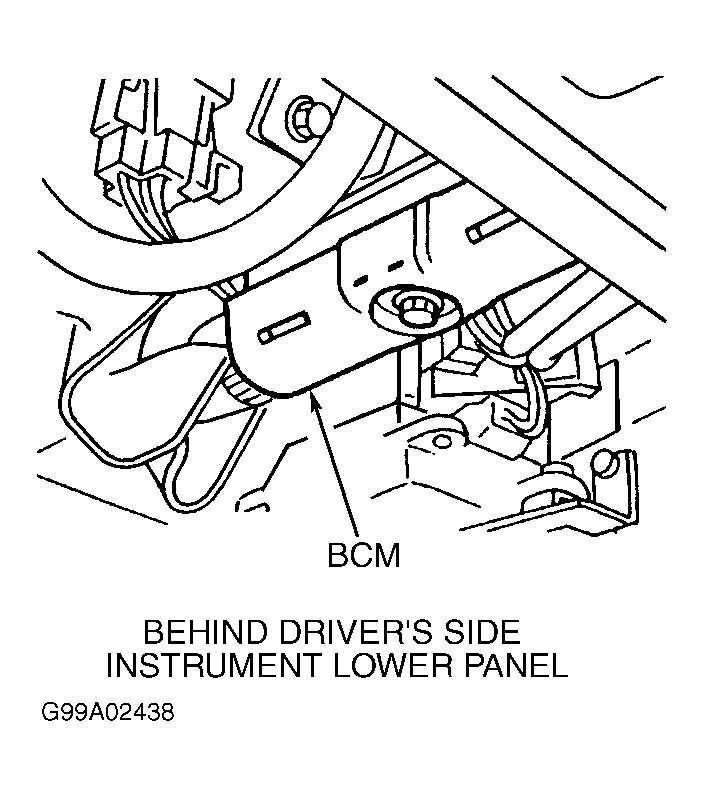

| BCM | Behind Driver's Side Of Instrument Panel. See Fig 1 . |

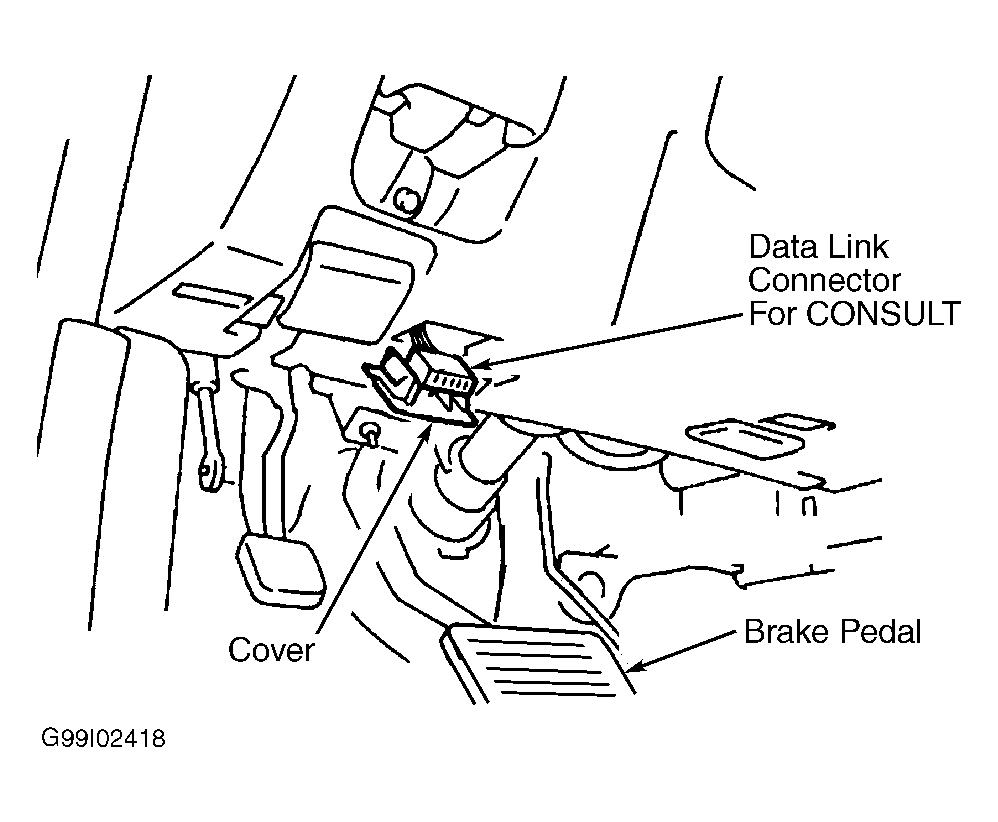

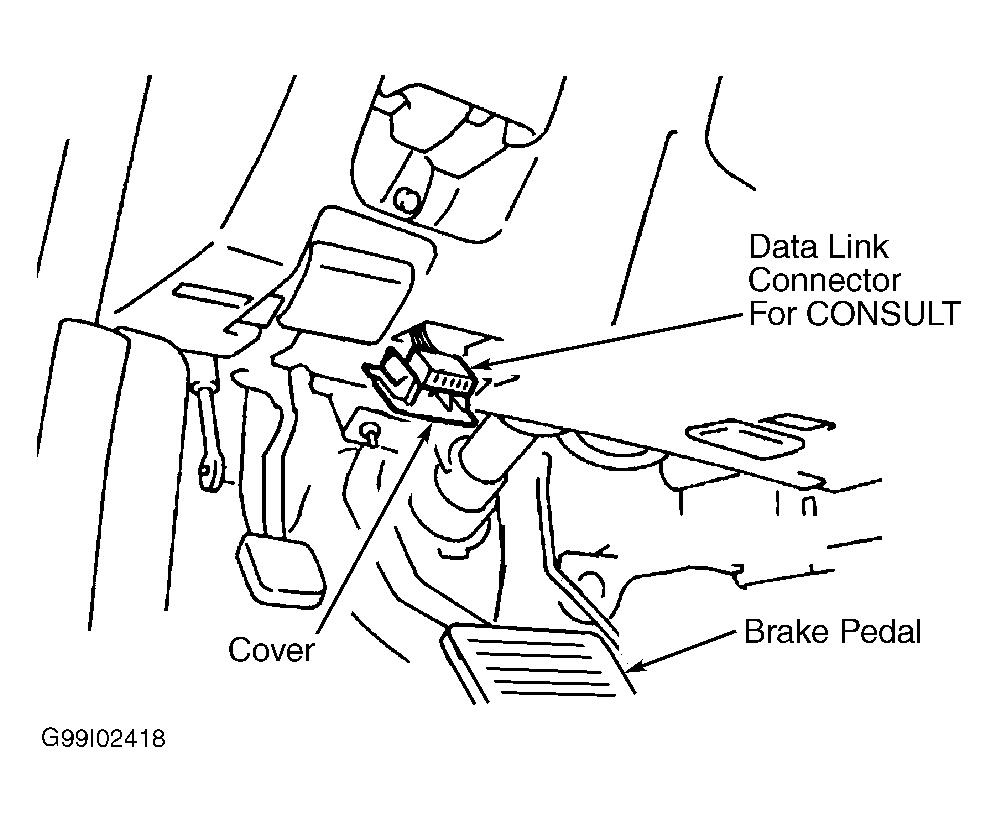

| Data Link Connector (DLC) | Next To Engine Hood Release. See Fig 2 . |
| LCU 01 (Driver's Door Control Module) | In Driver's Door |
| LCU 02 (Passenger's Door Control Module) | In Front Passenger's Door |
| LCU 03 (Right Rear Door Control Module) | In Right Rear Door |
| LCU 04 (Left Rear Door Control Module) | In Left Rear Door |
| LCU 05 (Driver's Seat Control Module) | Under Driver's Seat |

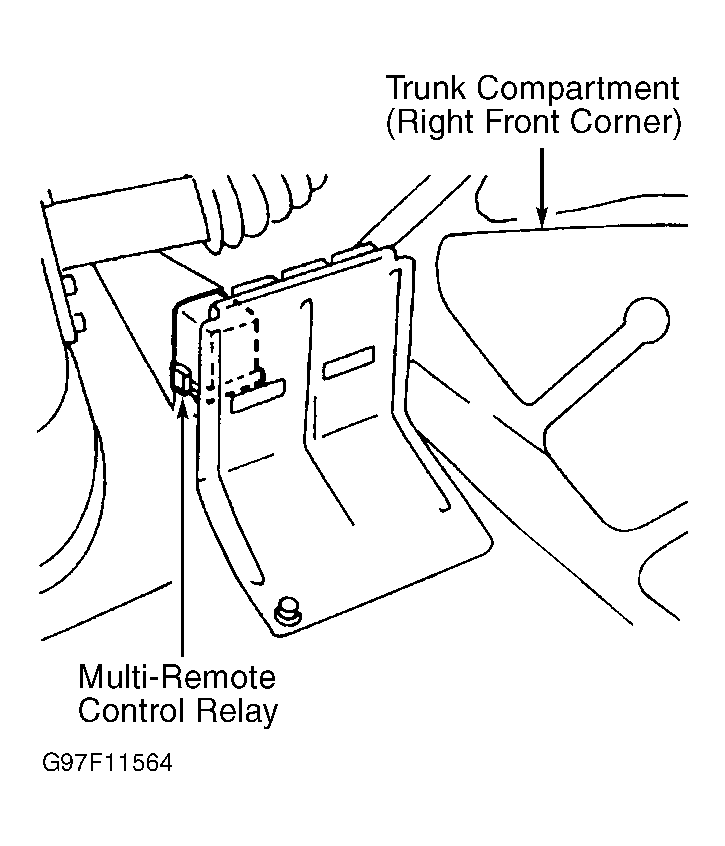

| Multi-Remote Control Relay | In Right Front Corner Of Trunk Compartment. See Fig 3 . |
