Component Locations

COMPONENT LOCATIONS

Component Location
Multi-Remote Control Relay Left Side Of Engine Compartment, In Relay Box. See Fig 1 .
Smart Entrance Control Unit (SECU) To Right Of Instrument Panel Fuse Box

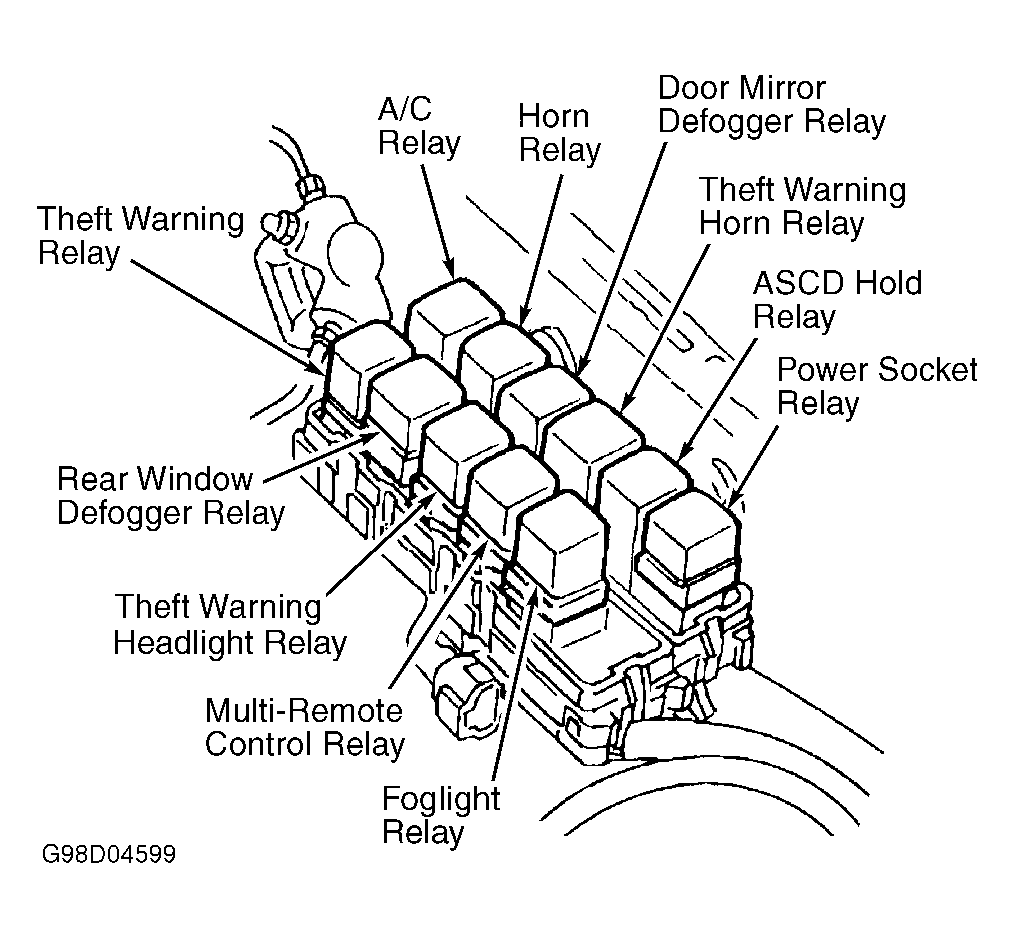

Fig 1: Locating Multi-Remote Control Relay
G98D04599Courtesy of NISSAN MOTOR CO., U.S.A.
