Front Doors

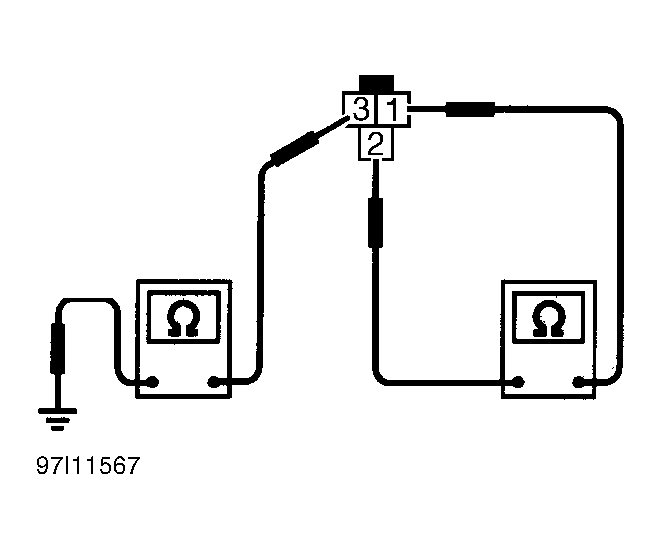

Disconnect harness connector from door switch to be tested. Using a DVOM, check for continuity between door switch terminals No. 1 and 2, then between terminal No. 3 and ground. See Figure . Continuity should be present only when door is open. Replace door switch if it does not test as specified.
