Component Locations

Use illustrations for component locations. See Fig 1-Fig 8 .

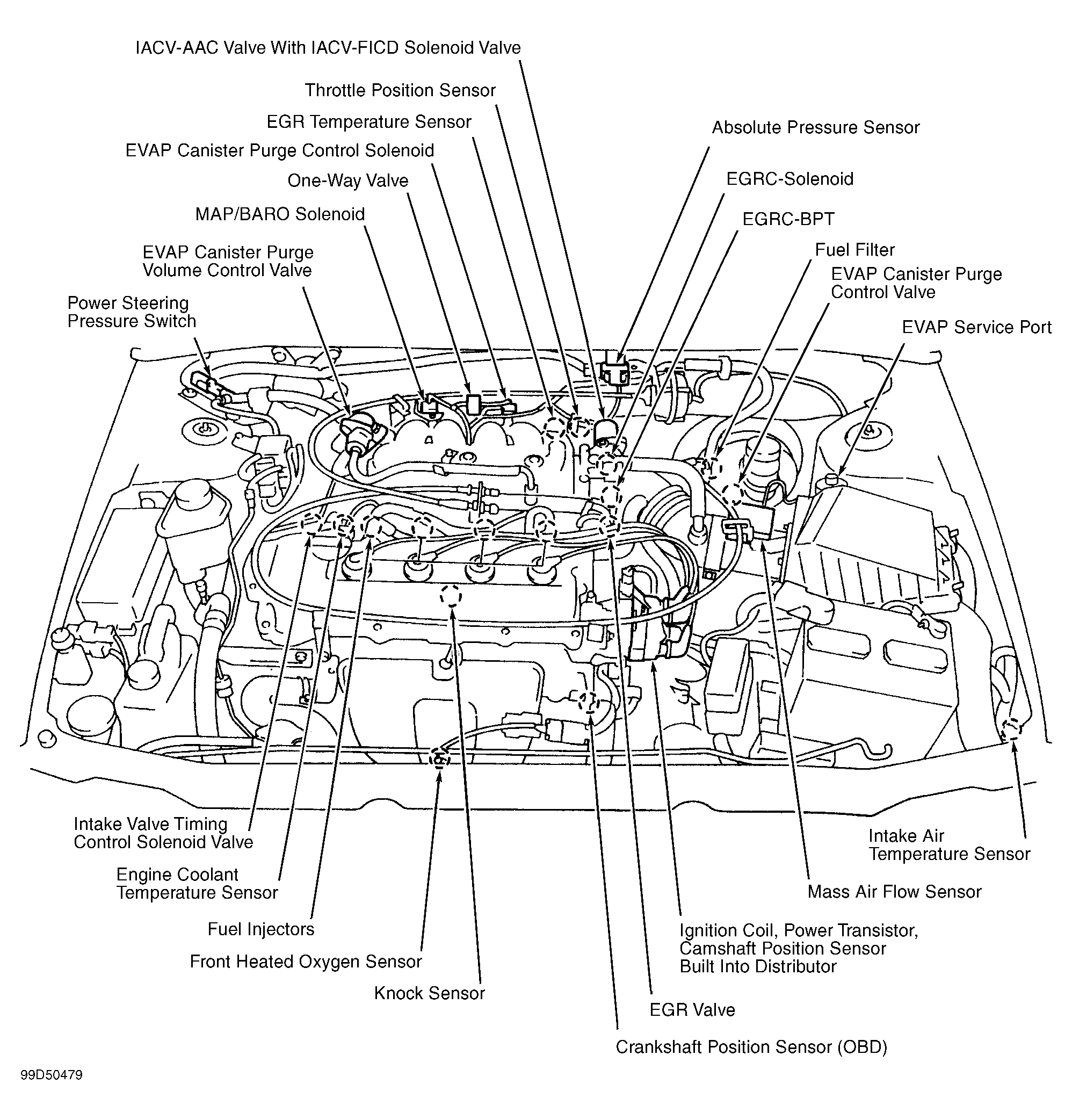

Fig 1: Identifying Underhood Engine Performance Component Locations (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Underhood Engine Performance Component Locations (Frontier 4-Cylinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

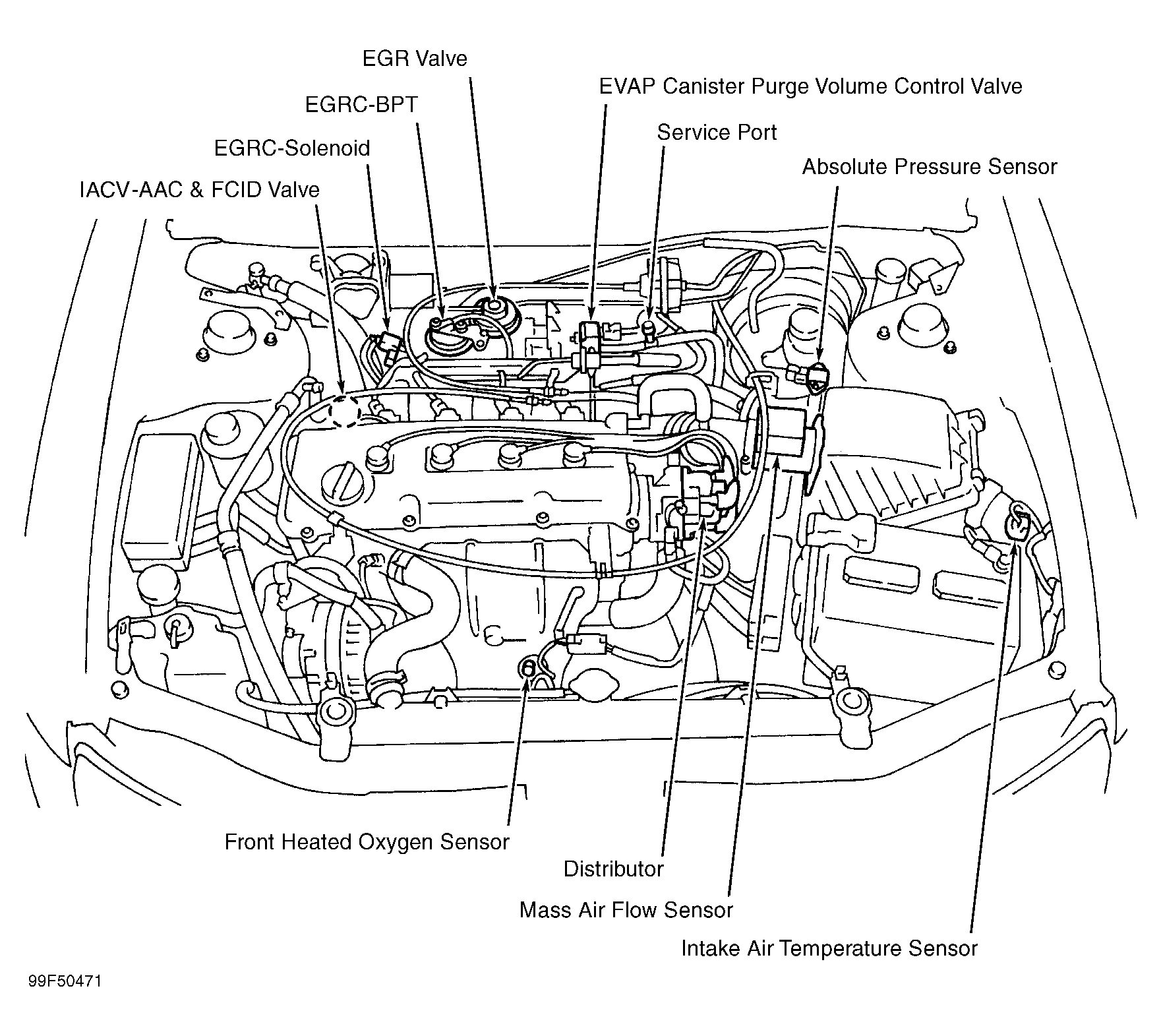

Fig 3: Identifying Underhood Engine Performance Component Locations (Frontier V6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Underhood Engine Performance Component Locations (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Underhood Engine Performance Component Locations (Pathfinder & QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Underhood Engine Performance Component Locations (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Underhood Engine Performance Component Locations (Sentra 1.6L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Underhood Engine Performance Component Locations (Sentra 2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.
