Component Locations

COMPONENT LOCATIONS

Component

Location

Door Lock Actuator

Inside Appropriate Door

Door Lock Switch

On Appropriate Armrest

Multi-Remote Relay

In Fuse Block, Under Left Side Of Instrument Panel. ⁽¹⁾

Smart Entrance Control Unit (SECU)

⁽²⁾

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 and Fig 3 .

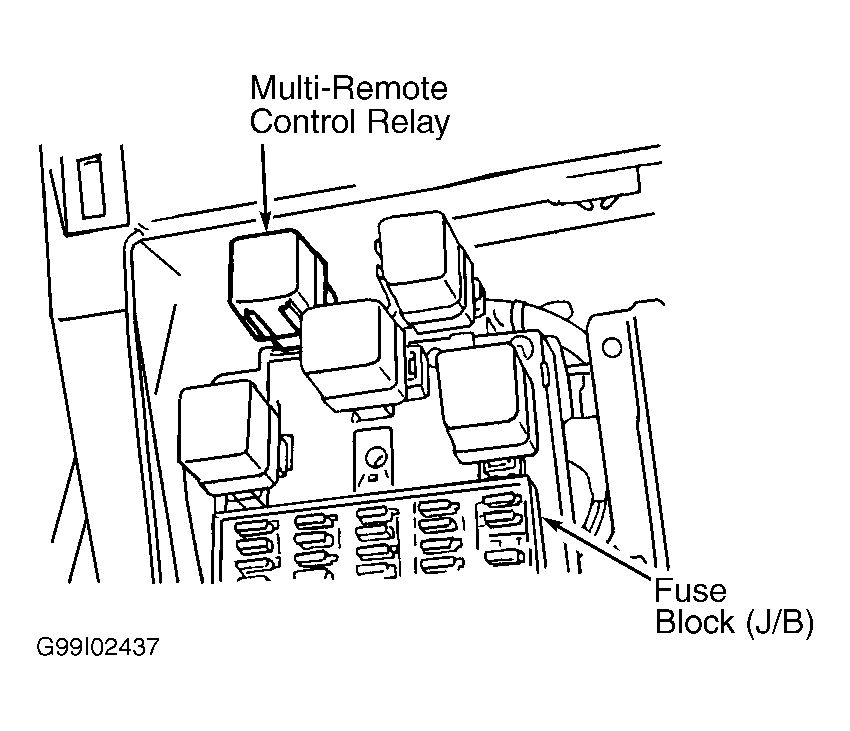

Fig 1: Locating Multi-Remote Relay

Courtesy of NISSAN MOTOR CO., U.S.A

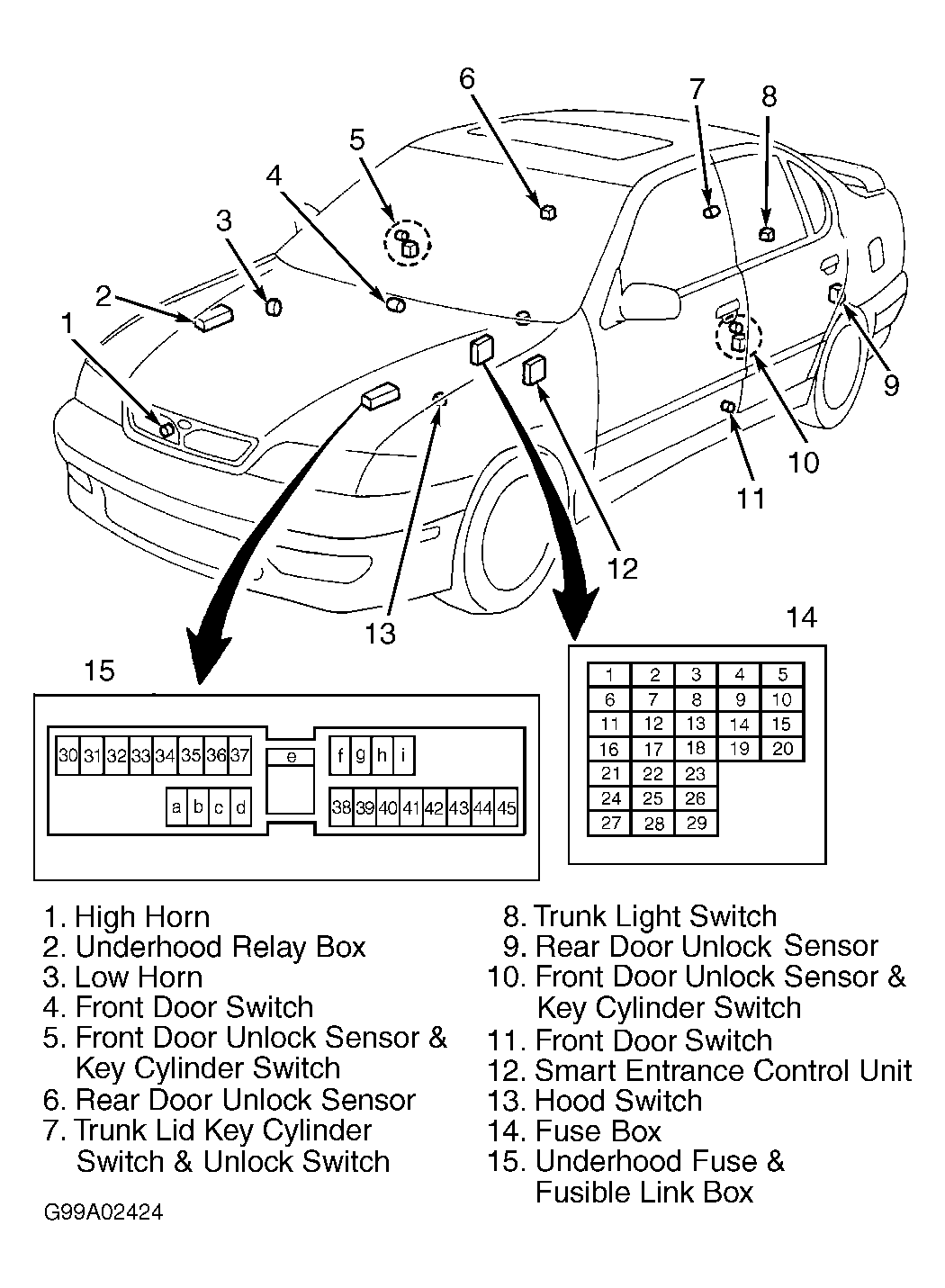

Fig 2: Locating Multi-Remote System Components

Courtesy of NISSAN MOTOR CO., U.S.A.

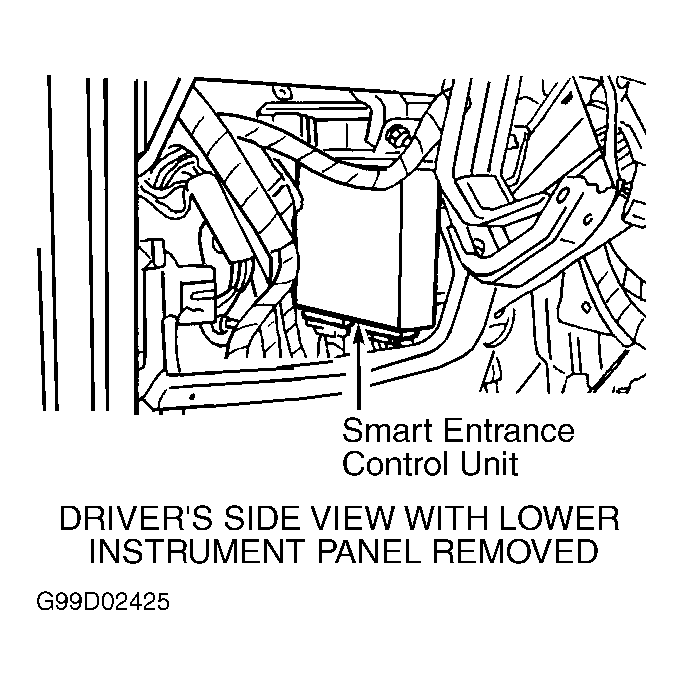

Fig 3: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.
