Door Switch Check

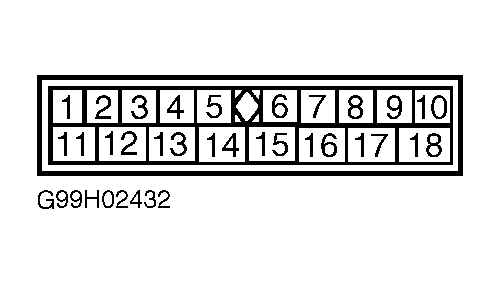

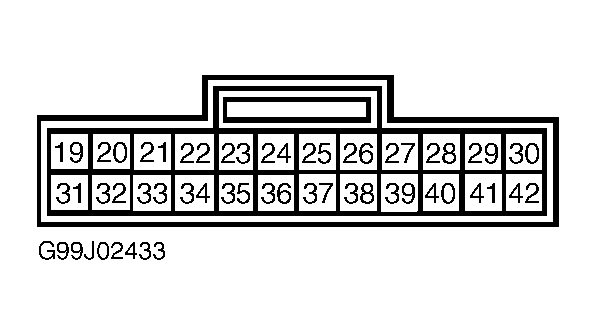

- Measure voltage by backprobing between appropriate SECU terminals and ground. See DOOR SWITCH INPUT SIGNAL TEST
table. If voltages are not as specified, go to next step. If voltages are as specified, door switch is okay.
- Perform appropriate door switch test. See SWITCHES
under COMPONENT TESTS. If switch is okay, inspect door switch ground circuit and/or Red/White or Red/Blue wire between SECU and door switch for open or short.
DOOR SWITCH INPUT SIGNAL CHECK
| Switch (Terminal No.) |
Condition |
Voltage |
| Left Front Door (29) |
| Open |
0 Volts |
| Closed |
About 12 Volts |
| Right Front Door (40) |
| Open |
0 Volts |
| Closed |
About 12 Volts |
| Left Front & Both Rear Doors (28) |
| Open |
0 Volts |
| Closed |
About 12 Volts |
