Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

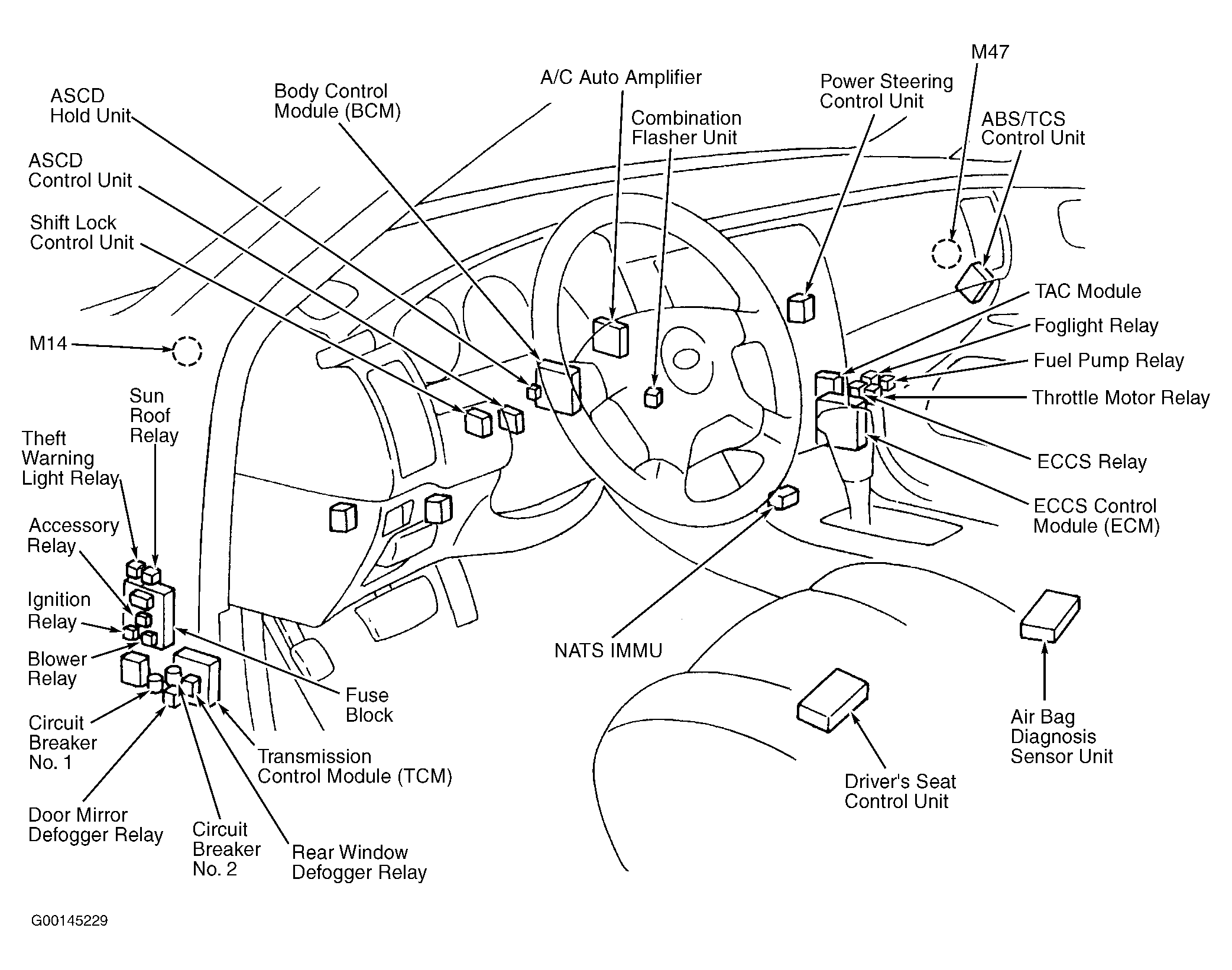

Circuit Breaker No. 1 Behind left kick panel. See Figure .
Circuit Breaker No. 2 Behind left kick panel. See Figure .
Fuse Block Behind left side of dash. See Figure .

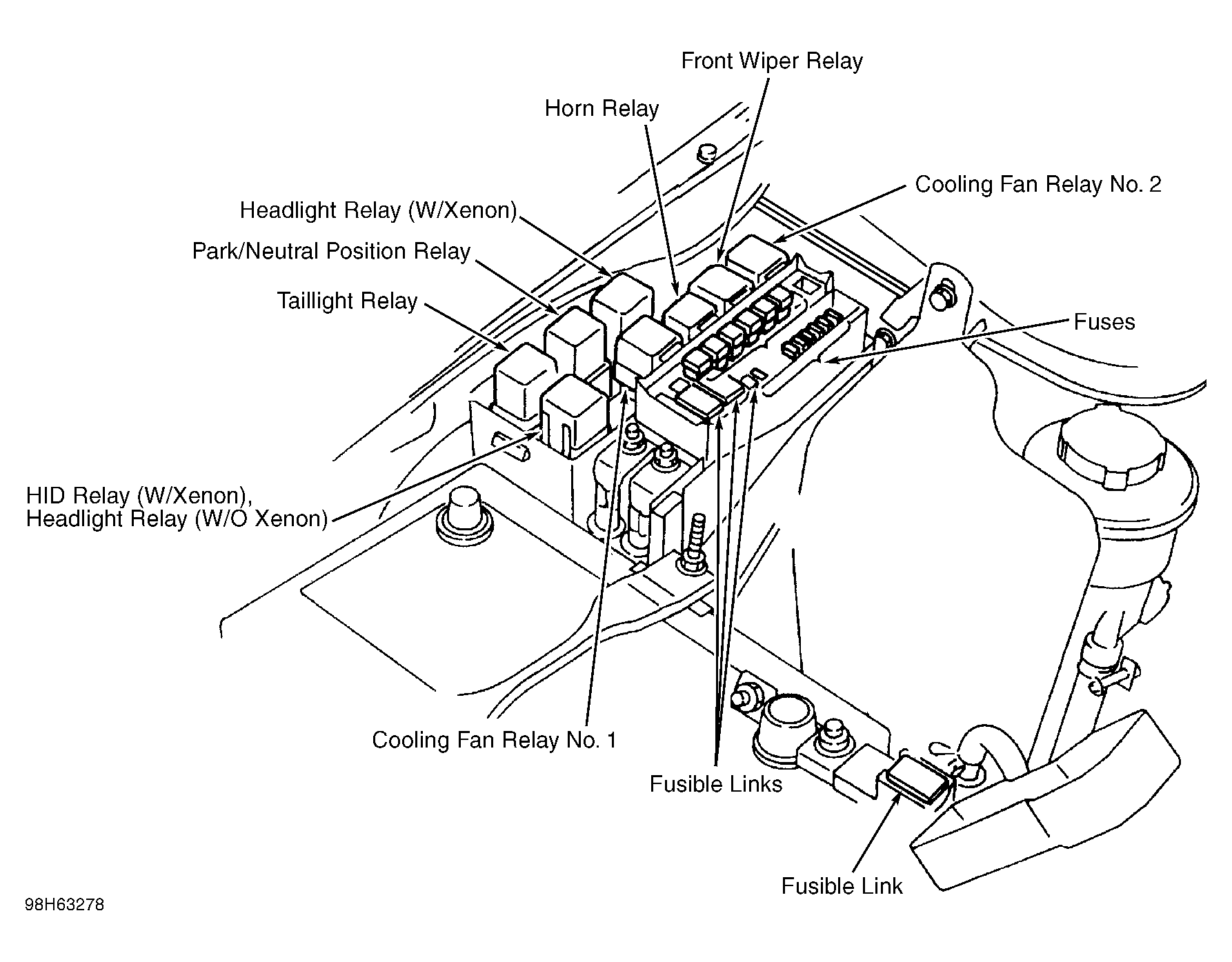

Fuse, Fusible Link & Relay Box In right front side of engine compartment, near battery. See Figure .
Fuses In fuse, fusible link & relay box. See Figure .
Fusible Link At battery, on battery cable. See Figure .
Fusible Links In fuse, fusible link & relay box. See Figure .
