Repair and Diagnosis: Electrical: Starters: Overhaul

NOTE: Use exploded views for overhaul reference. See Fig 1 -Fig 3 .

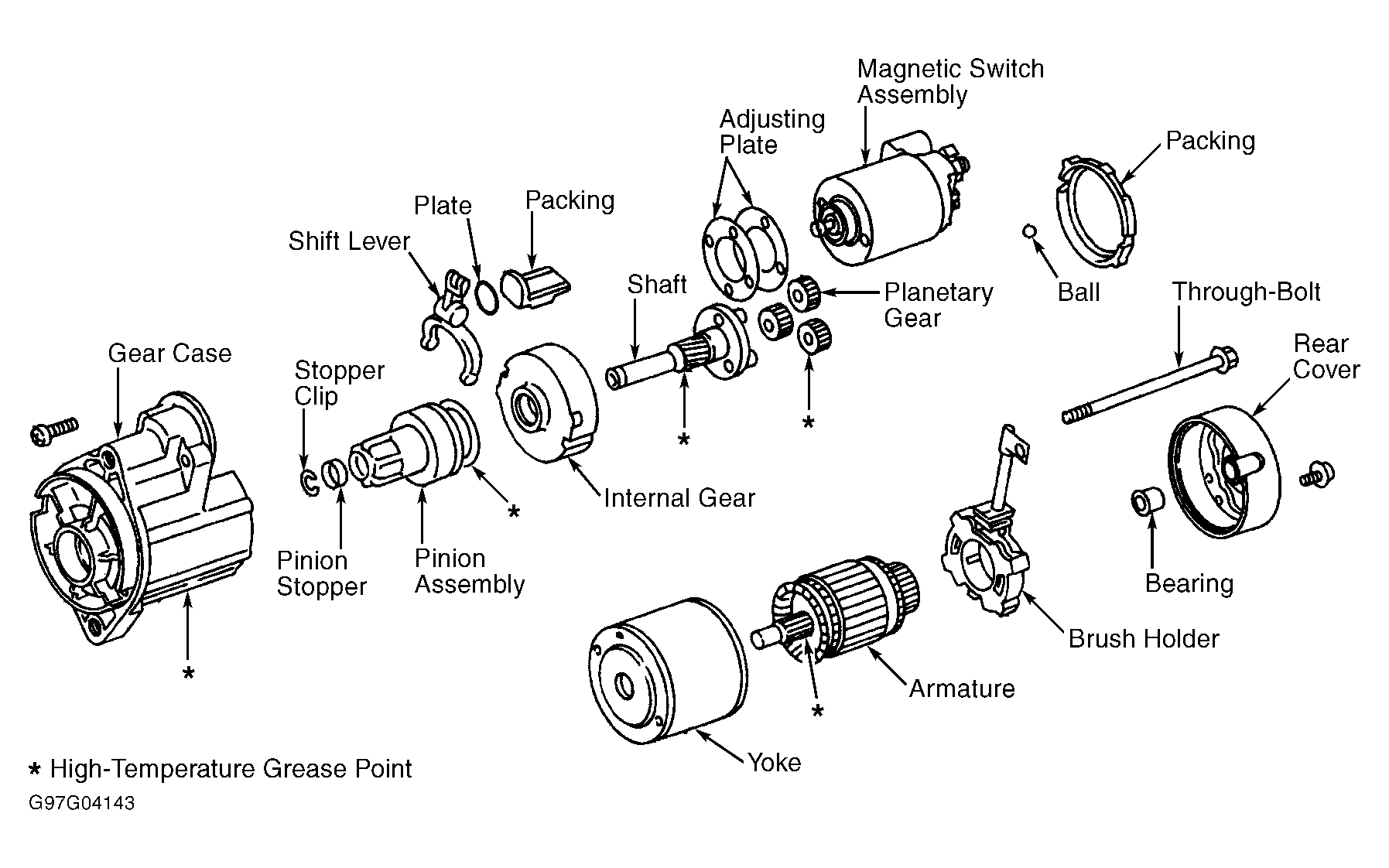

Fig 1: Exploded View Of Hitachi Starter (I30 Shown, G20 Is Similar)

Courtesy of NISSAN MOTOR CO., U.S.A.

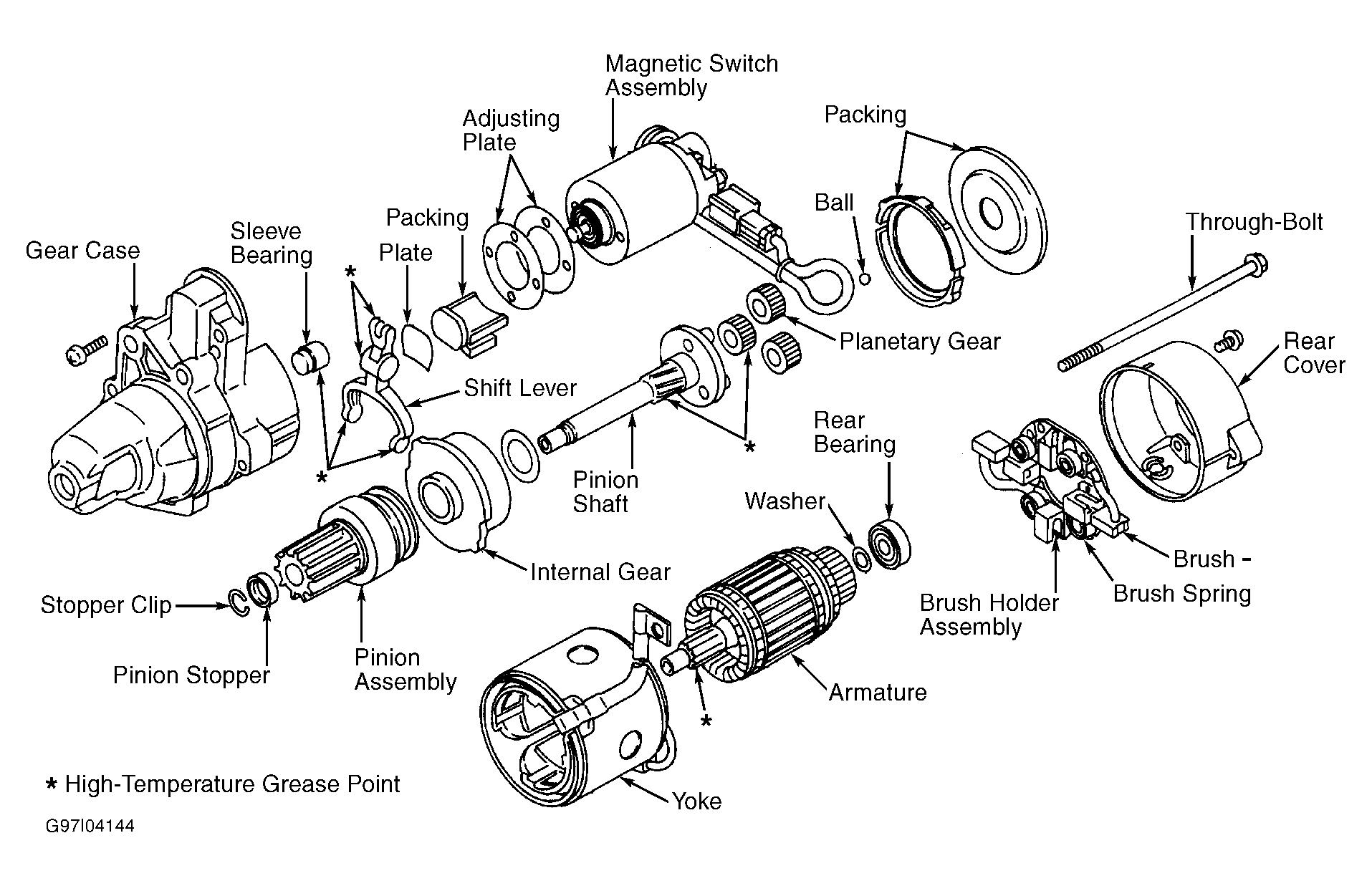

Fig 2: Exploded View Of Mitsubishi Starter (QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

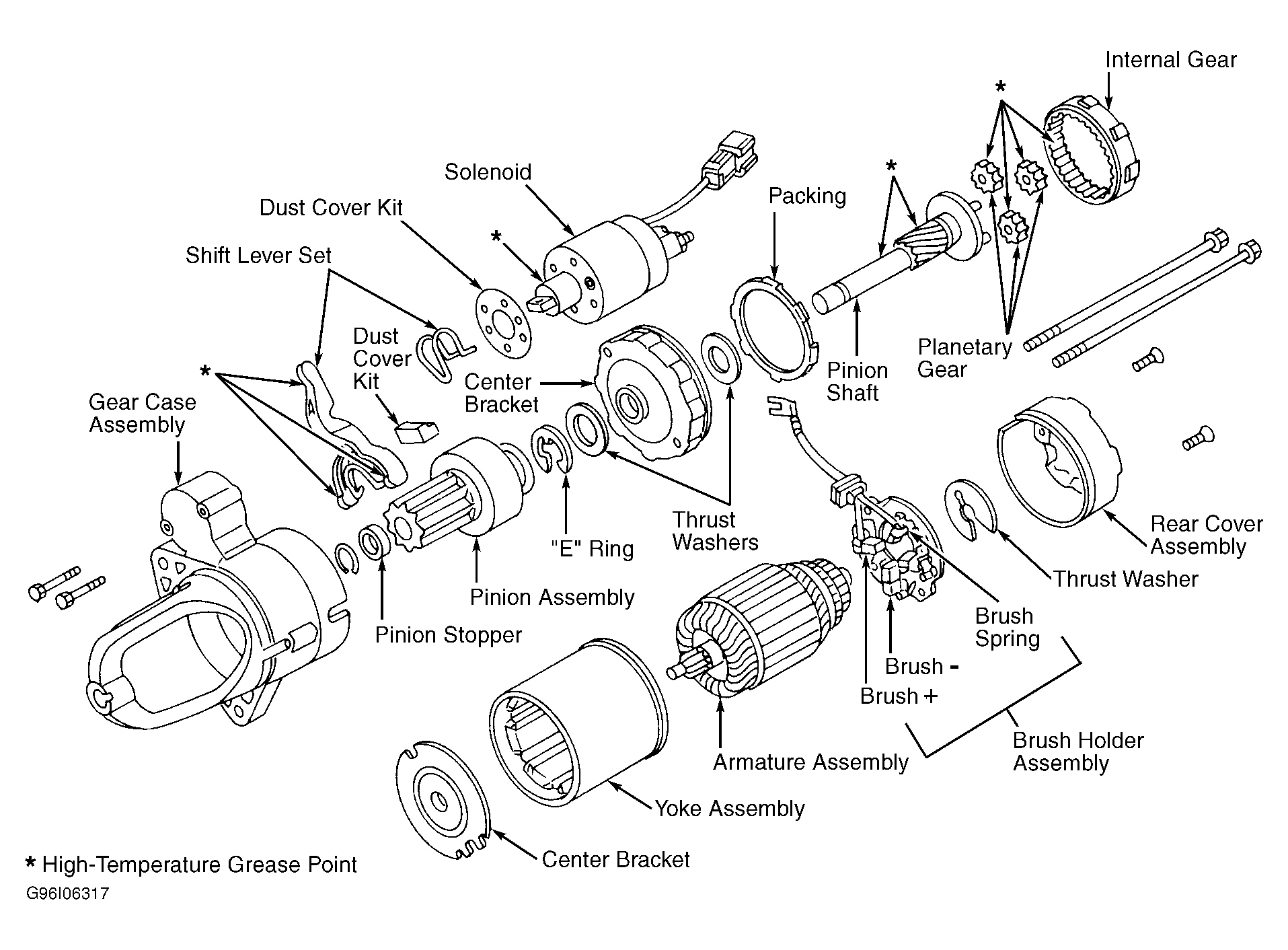

Fig 3: Exploded View Of Mitsubishi Starter (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
