Retrieving Diagnostic Trouble Codes Using Scan Tool: Notes

Turn ignition off. Connect scan tool to DLC located under left side dash panel. See Fig 1. Turn ignition on. Enter program desired on scan tool screen.

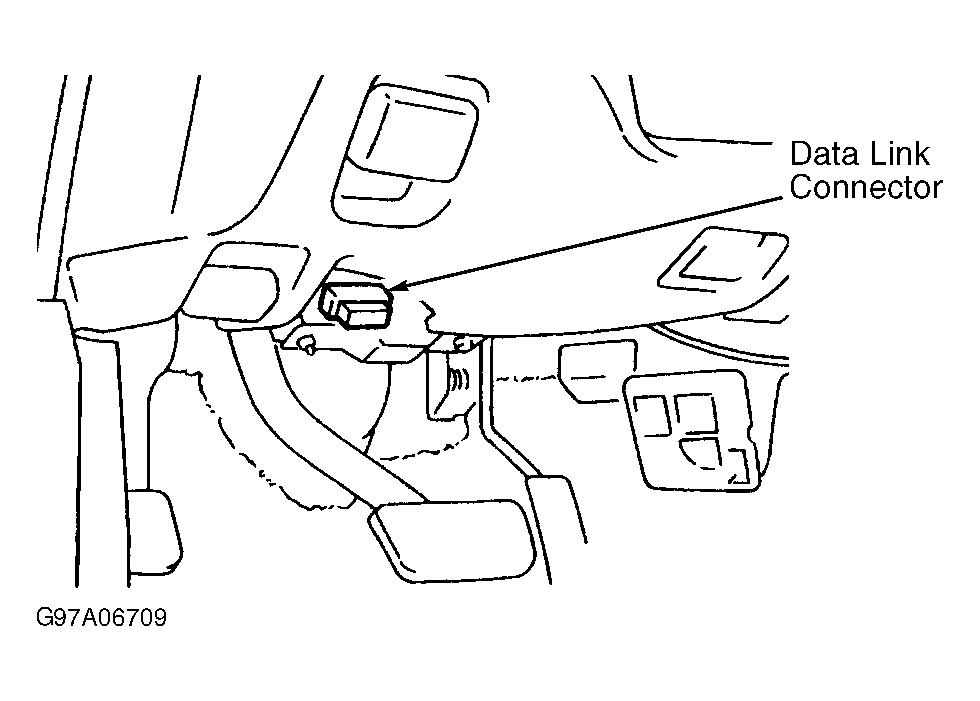

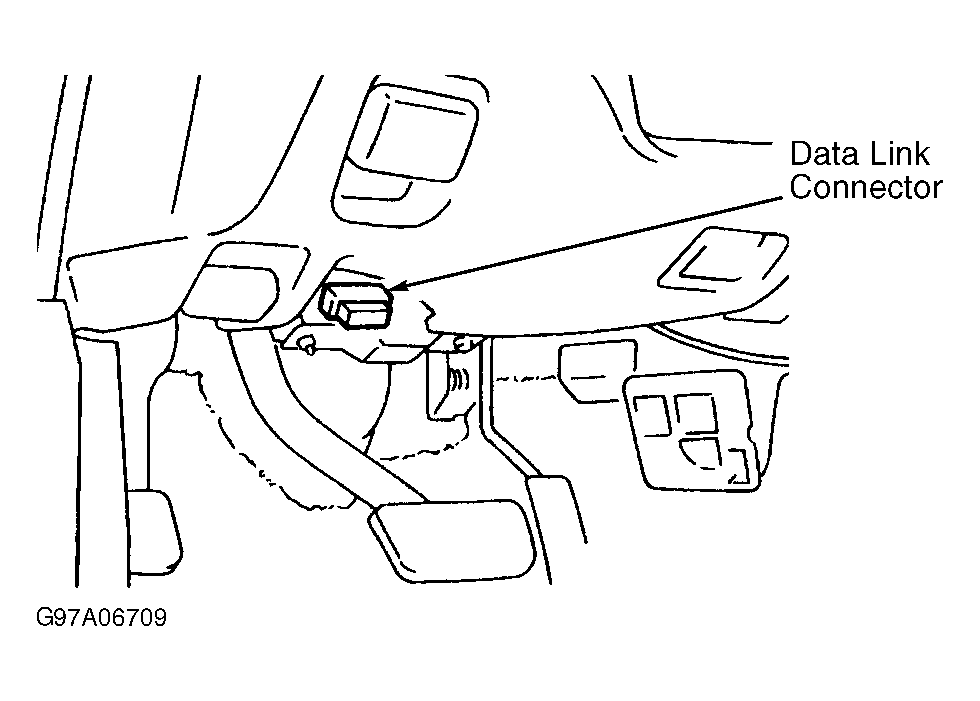

Fig 1: Locating Data Link Connector (DLC)

Courtesy of NISSAN MOTOR CO., U.S.A.

An OBD-II scan tool complying with SAE J1978 has the following functions. For further information, see the appropriate operation manual supplied by scan tool manufacturer.
