Component Locations
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|

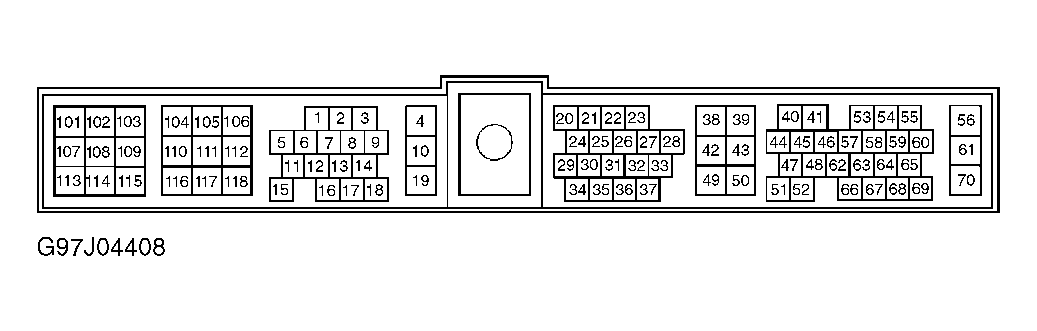

| Body Control Module (BCM) | (1) Behind Driver Side Instrument Panel | ||
| Data Link Connector (DLC) | In Interior Fuse Panel | ||
| Driver's Door Switch | At Bottom Of Driver's Door Jam | ||
| LCU 05 (Driver's Seat Control Unit) | Under Driver's Seat | ||
| Memory Switch | Next To Driver's Interior Door Handle | ||
| Steering Column Switch | Left Of Steering Column | ||
| Steering Column Tilt Sensor | On Steering Column Tilt Motor | ||
| Vehicle Speed Sensor (VSS) | On Transmission Extension Housing | ||
|
|||
