Shift Lock Control Unit

Using DVOM, backprobe Shift Lock Control Unit (SLCU) connector. Measure voltage between SLCU terminals. See Fig 1 .

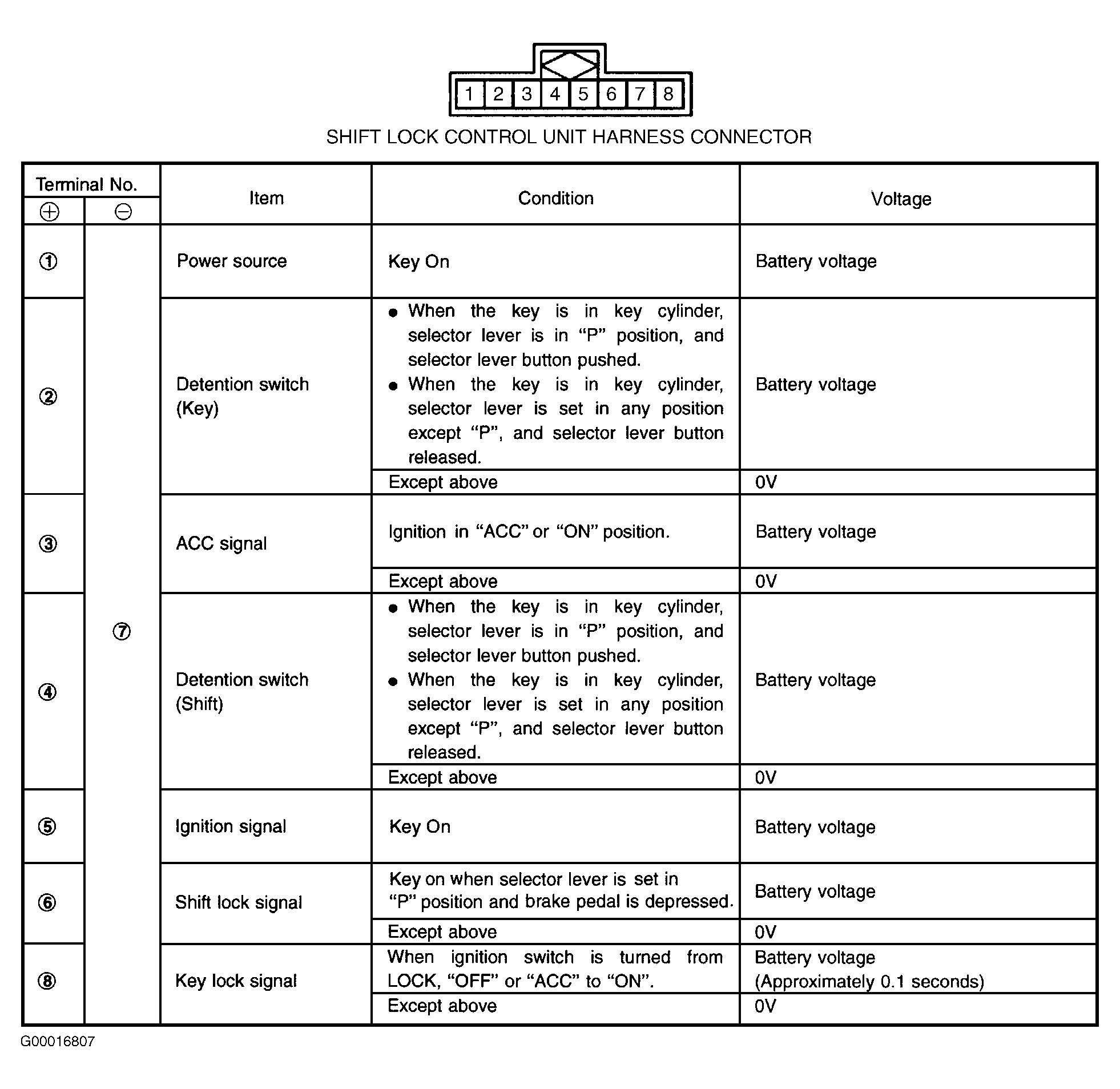

Fig 1: Shift Lock Control Unit Pin Voltage Table (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
