Anti-Lock Brake System: Description

NOTE: This article also applies to 2000 Infiniti QX4.

Anti-Lock Brake System (ABS) prevents wheel lock-up, allowing driver to maintain steering control during heavy braking. The system consists of an ABS control unit with self-diagnosis capability, "G" sensor (4WD models only), warning light, wheel speed sensors, wiring and hydraulic lines. See Fig 1 .

ABS control unit (electro-hydraulic unit) consists of a pump motor, accumulator, solenoid valves for each channel, solenoid valve relay, actuator motor relay, check valves and reservoirs.

NOTE: For more brake system information, see DISC & DRUM article.

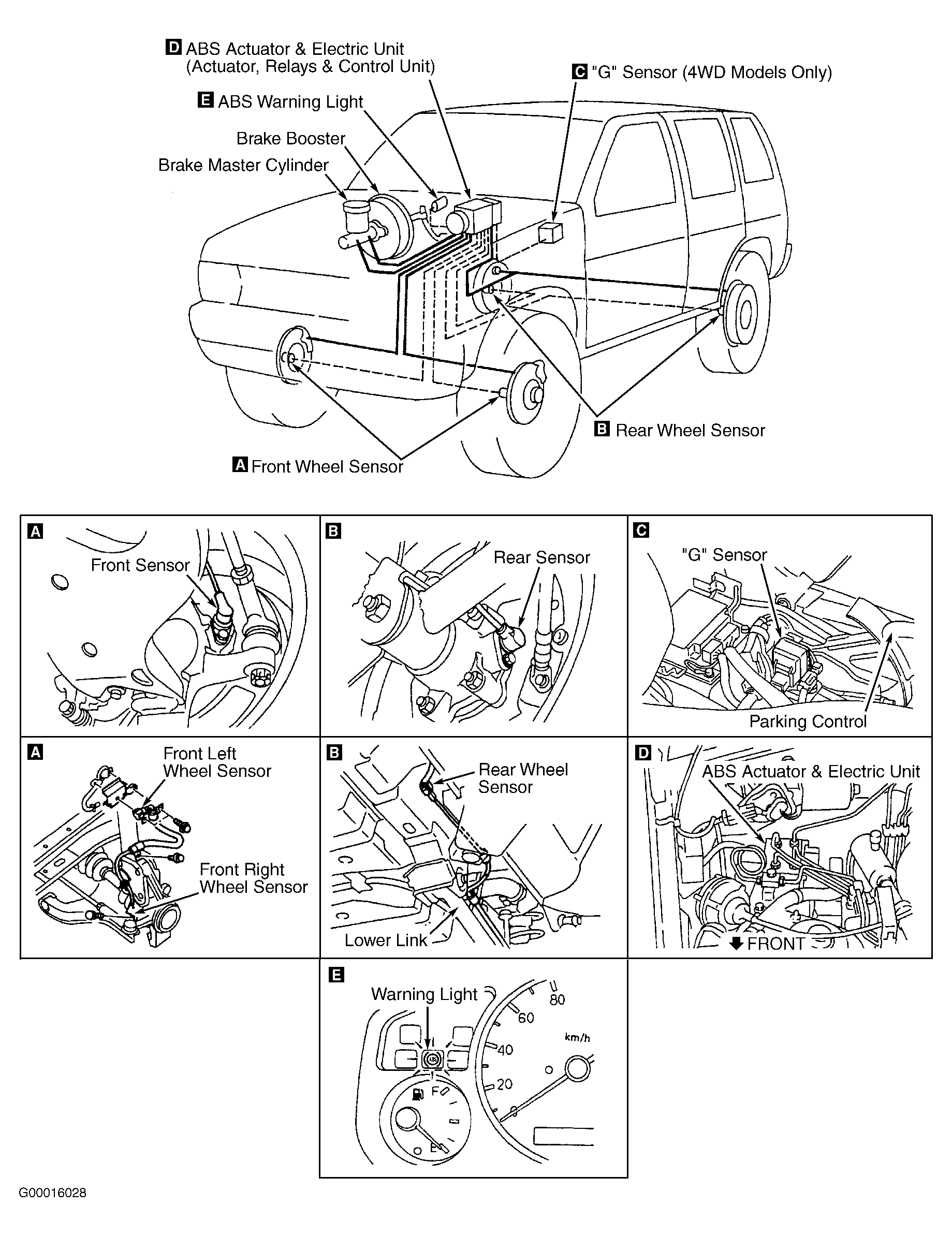

Fig 1: Locating ABS Components

Courtesy of NISSAN MOTOR CO., U.S.A.
