Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

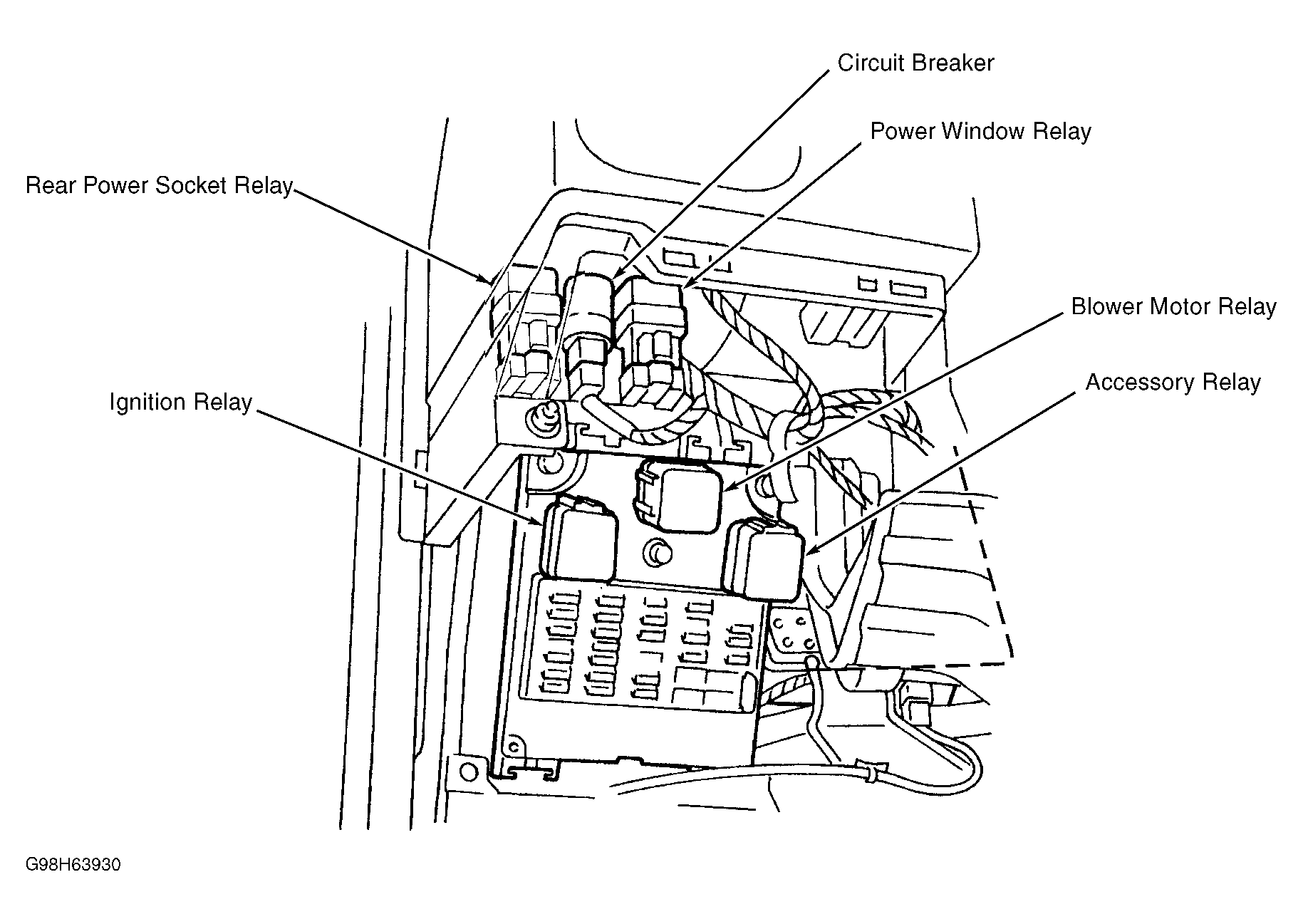

| Circuit Breaker | On top of fuse block. See Figure . |

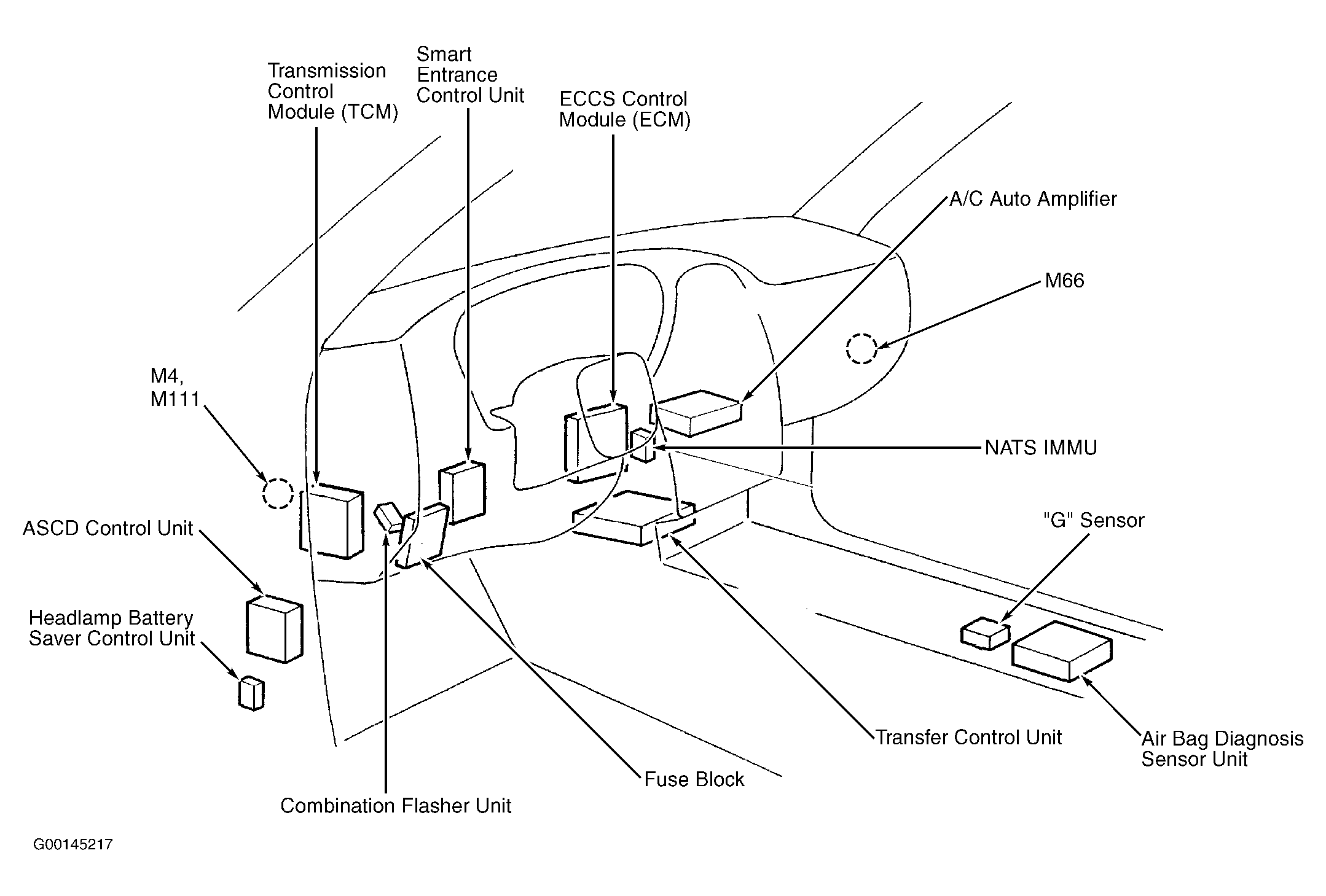

| Fuse Block | Behind dash, left of steering column. See Figure . |

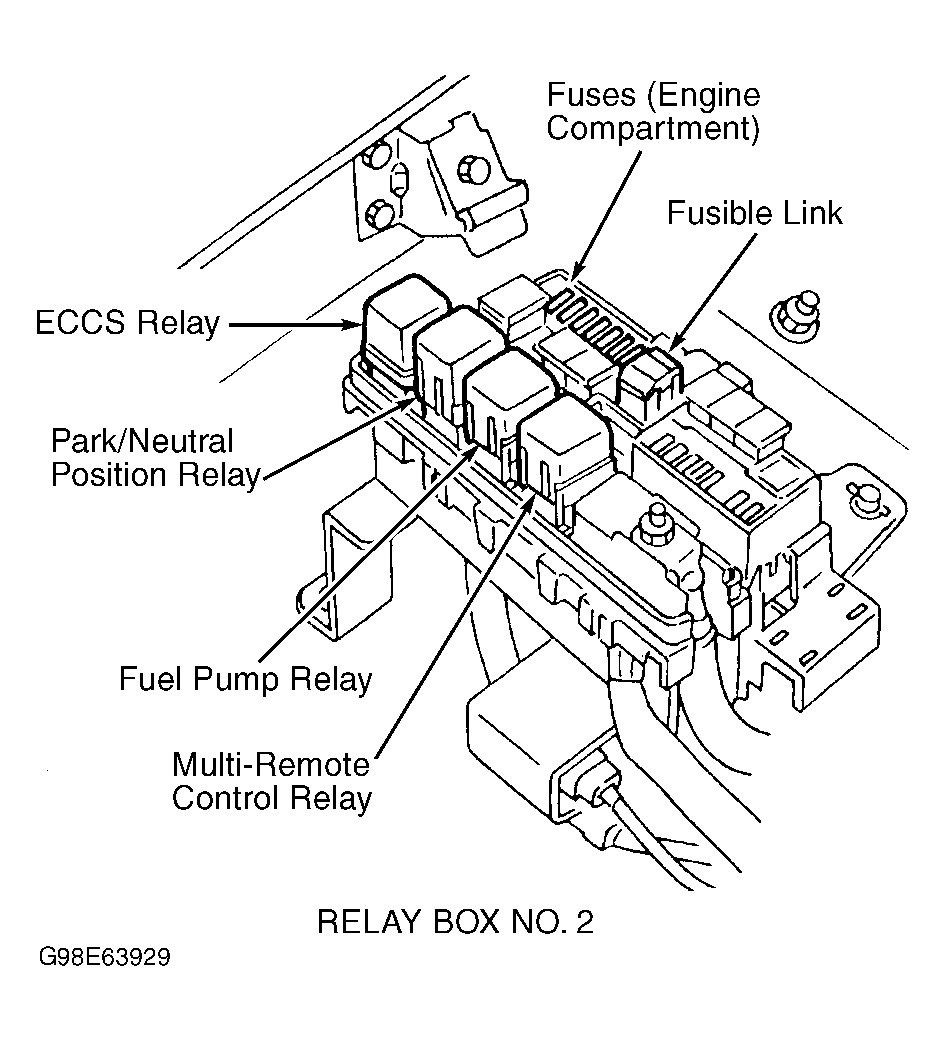

| Fuses (Engine Compartment) | In relay box No. 2. See Figure . |
| Fuses (Passenger Compartment) | In fuse block. |
| Fusible Link | In relay box No. 2. See Figure . |

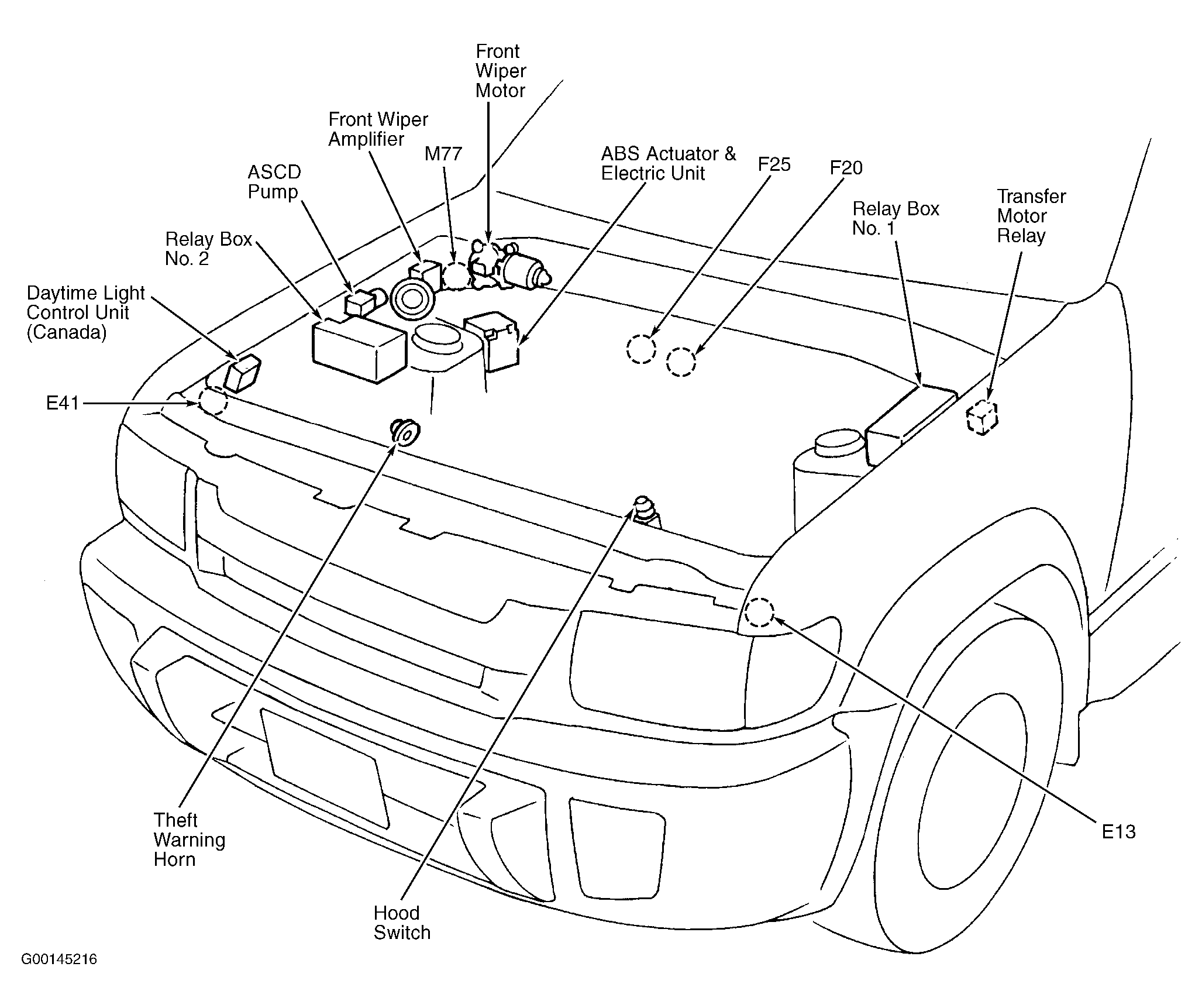

| Relay Box No. 1 | On left front fender well. See Figure . |

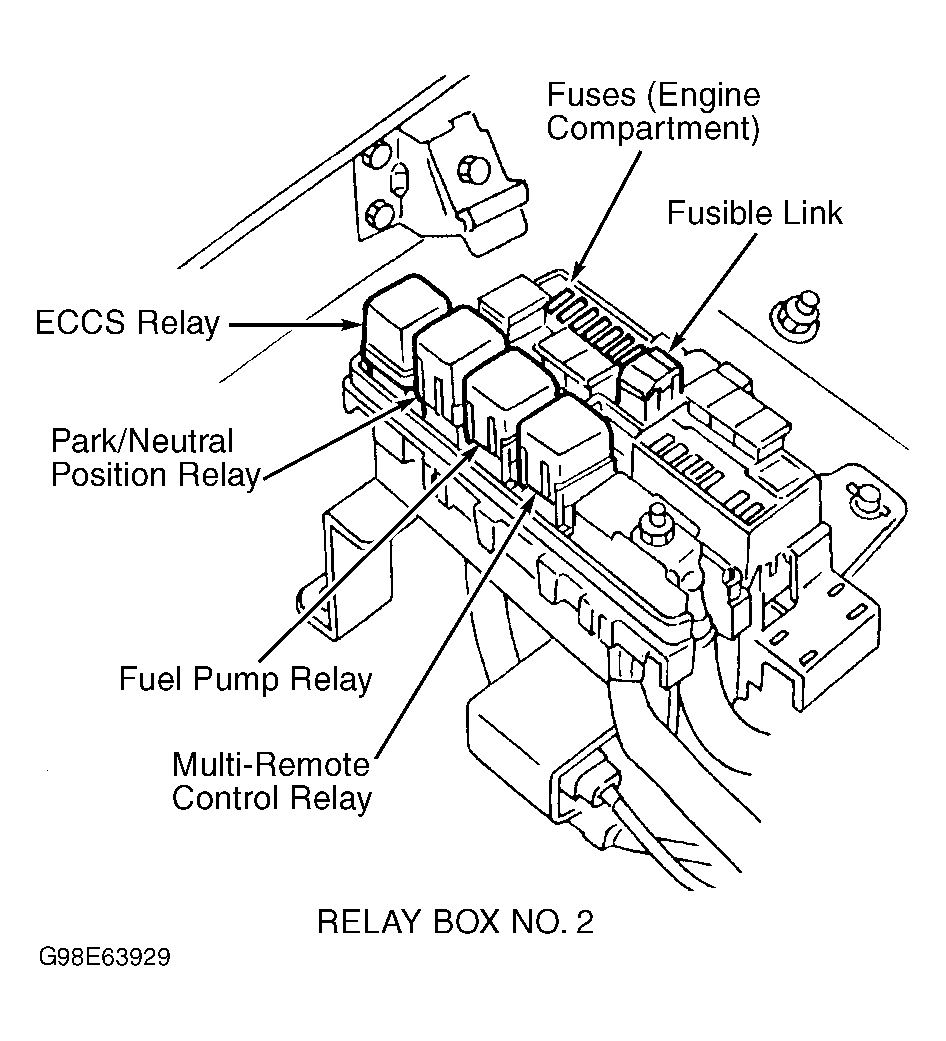

| Relay Box No. 2 | On right front fender well. See Figure . |
