Component Locations

Use illustrations for component locations. See Fig 1 through Fig 8 .

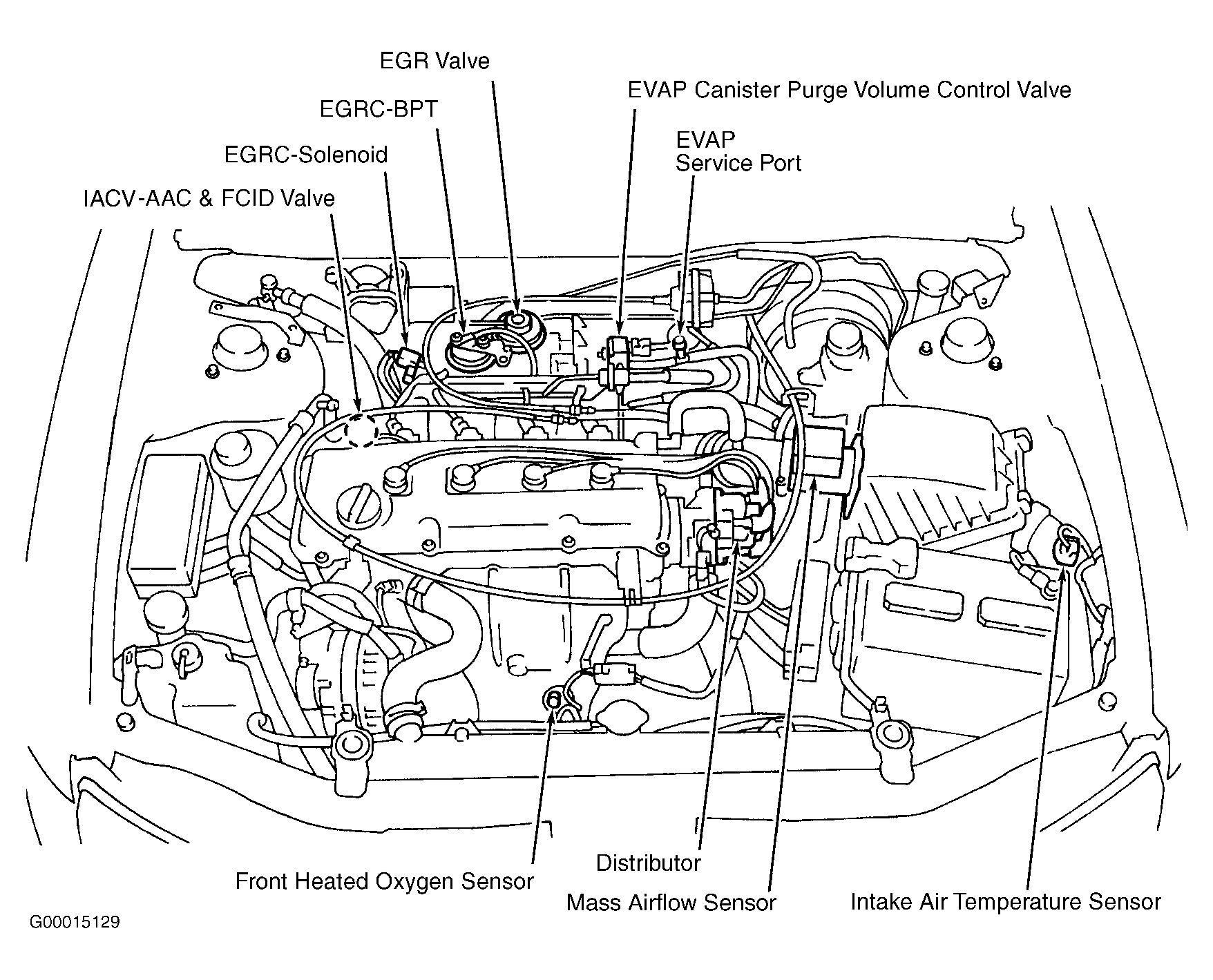

Fig 1: Identifying Underhood Engine Performance Component Locations (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

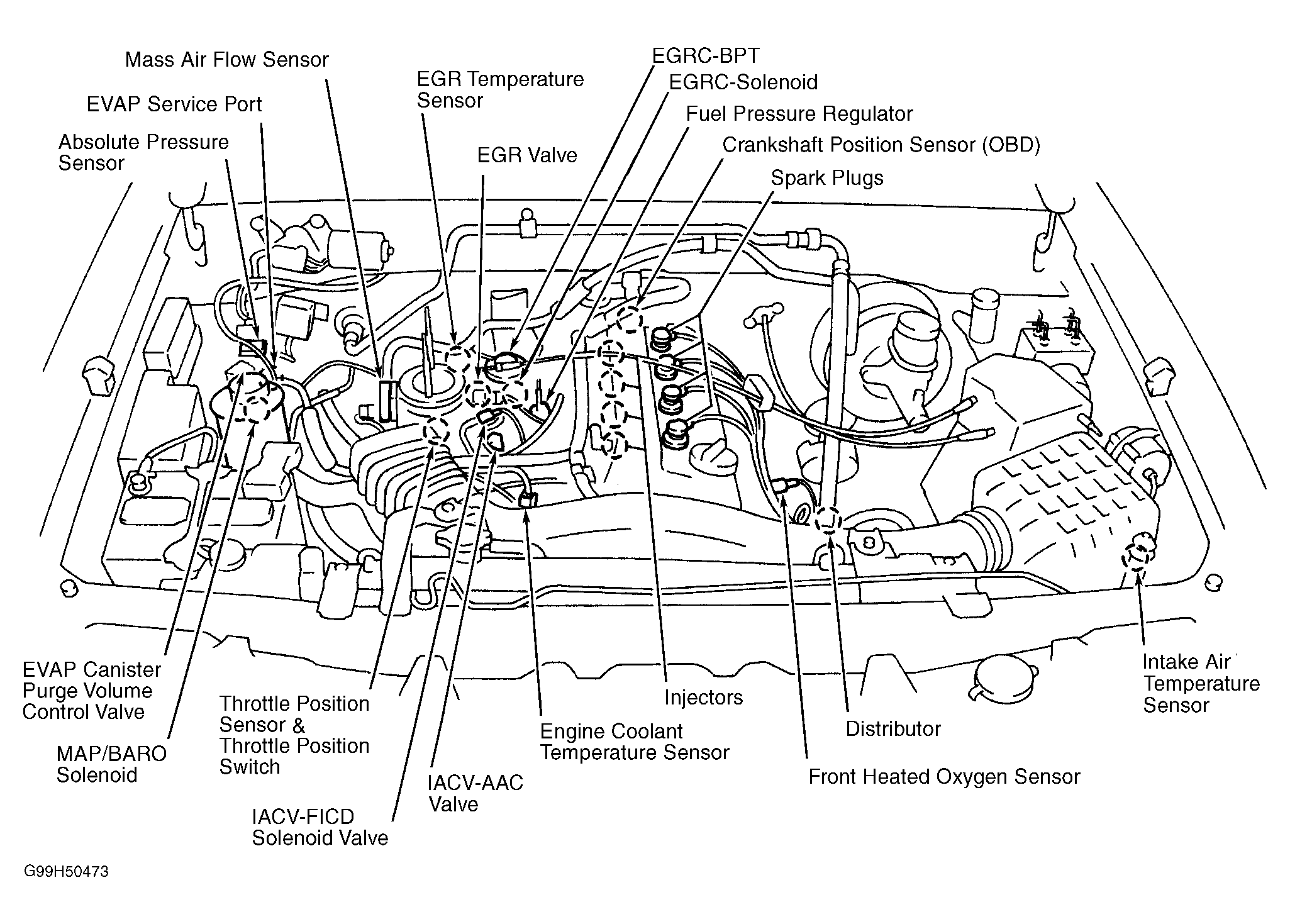

Fig 2: Identifying Underhood Engine Performance Component Locations (Frontier 2.4L & Xterra 2.4L)

Courtesy of NISSAN MOTOR CO., U.S.A.

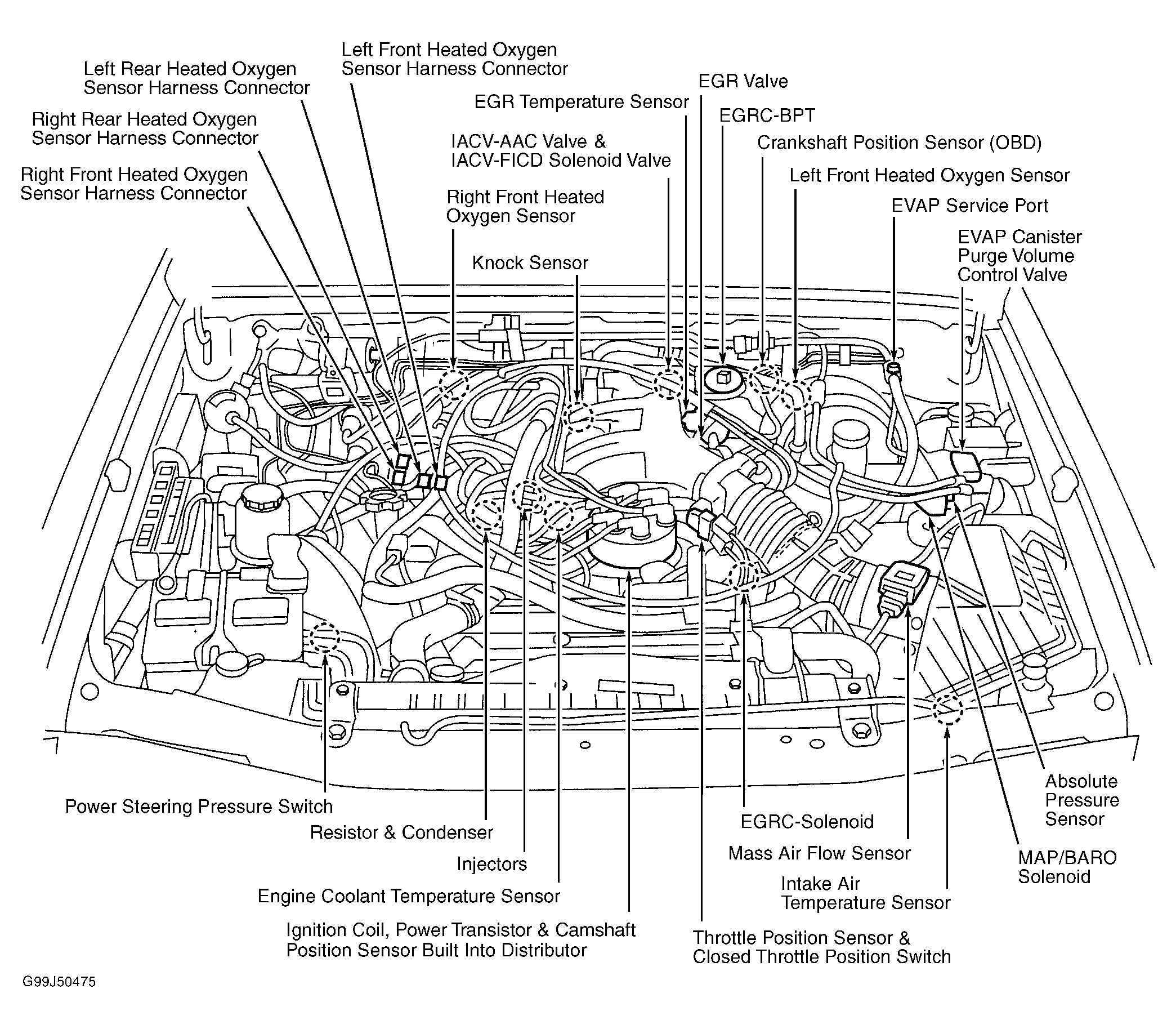

Fig 3: Identifying Underhood Engine Performance Component Locations (Frontier 3.3L & Xterra 3.3L)

Courtesy of NISSAN MOTOR CO., U.S.A.

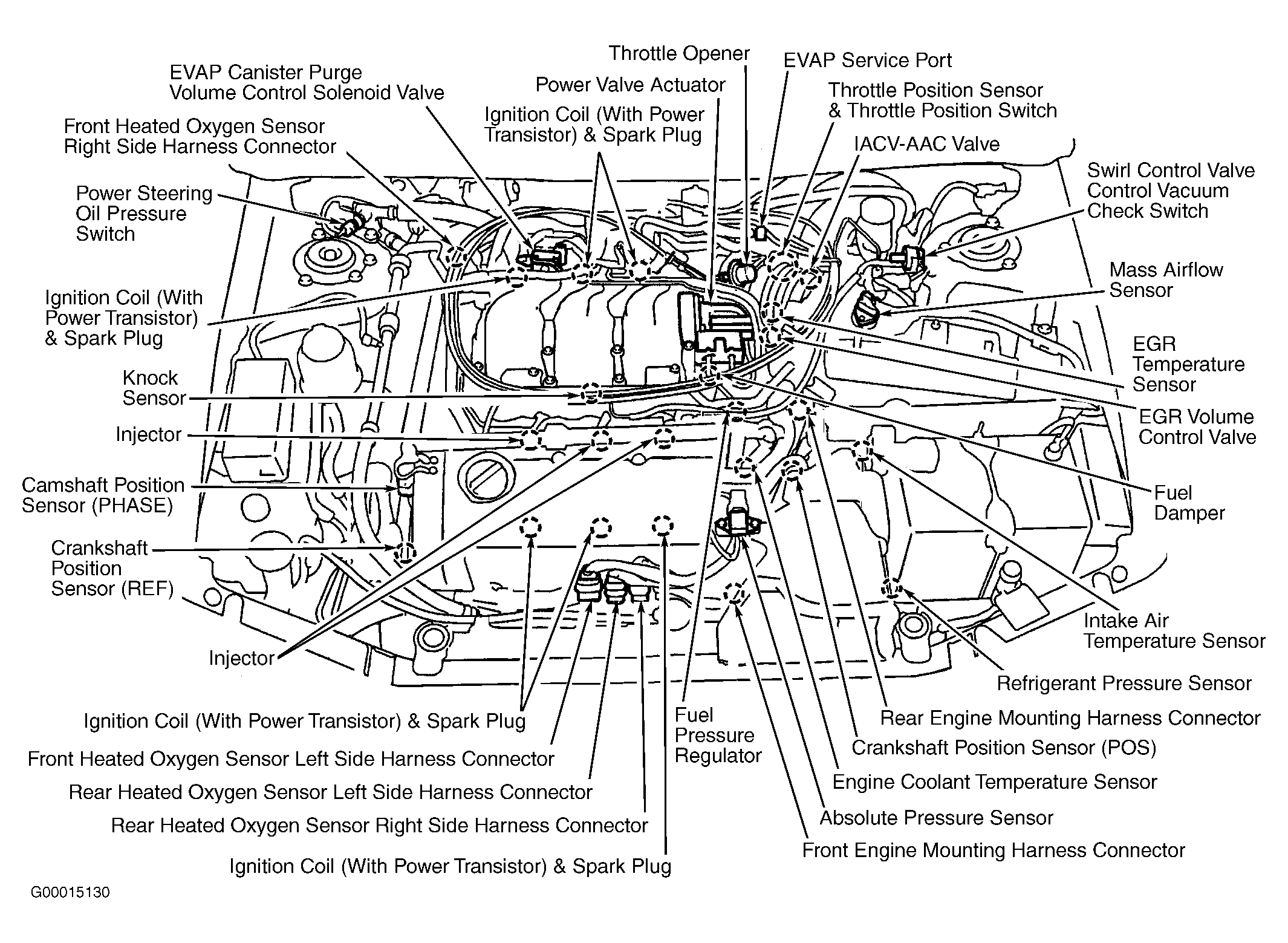

Fig 4: Identifying Underhood Engine Performance Component Locations (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

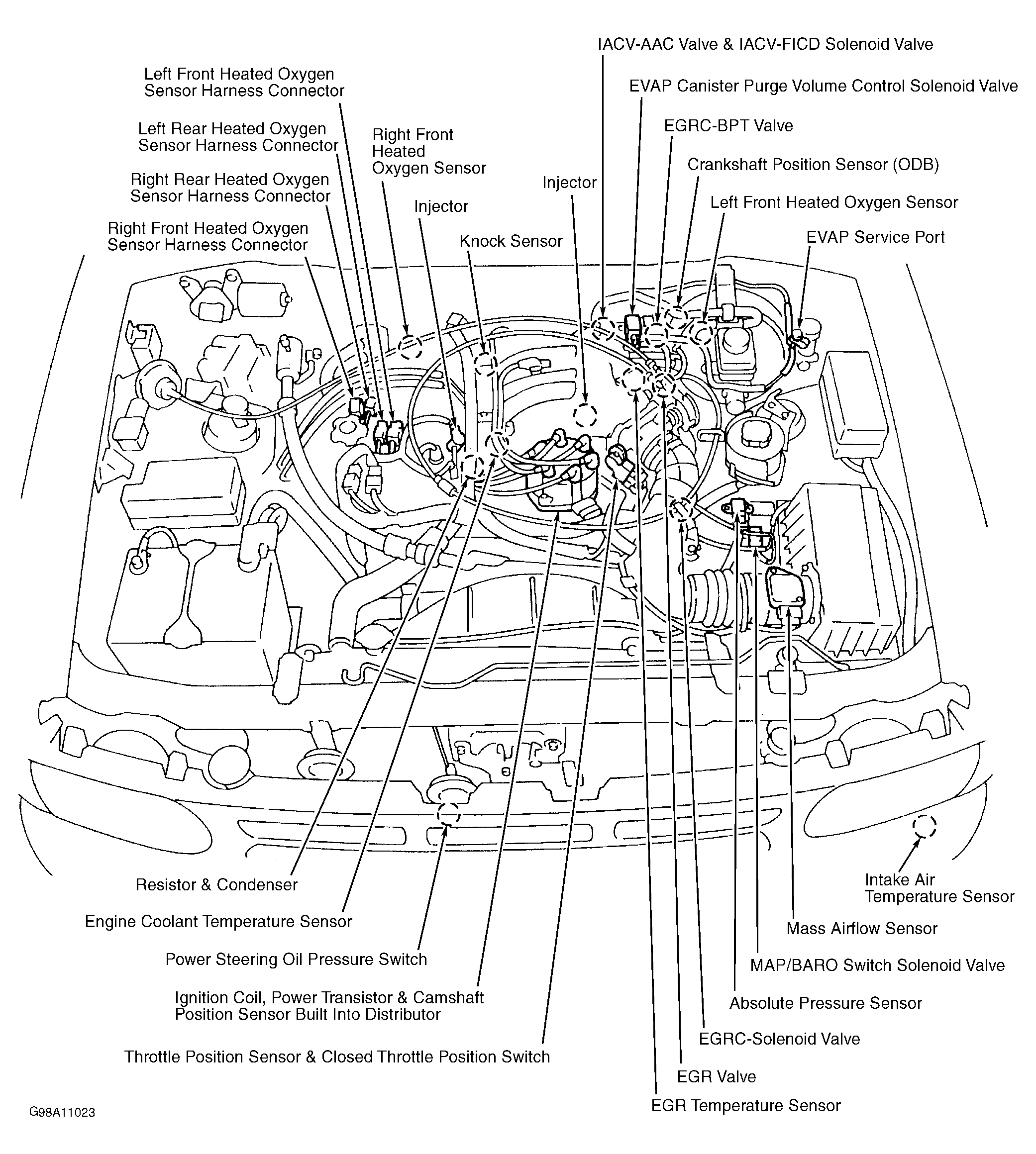

Fig 5: Identifying Underhood Engine Performance Component Locations (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

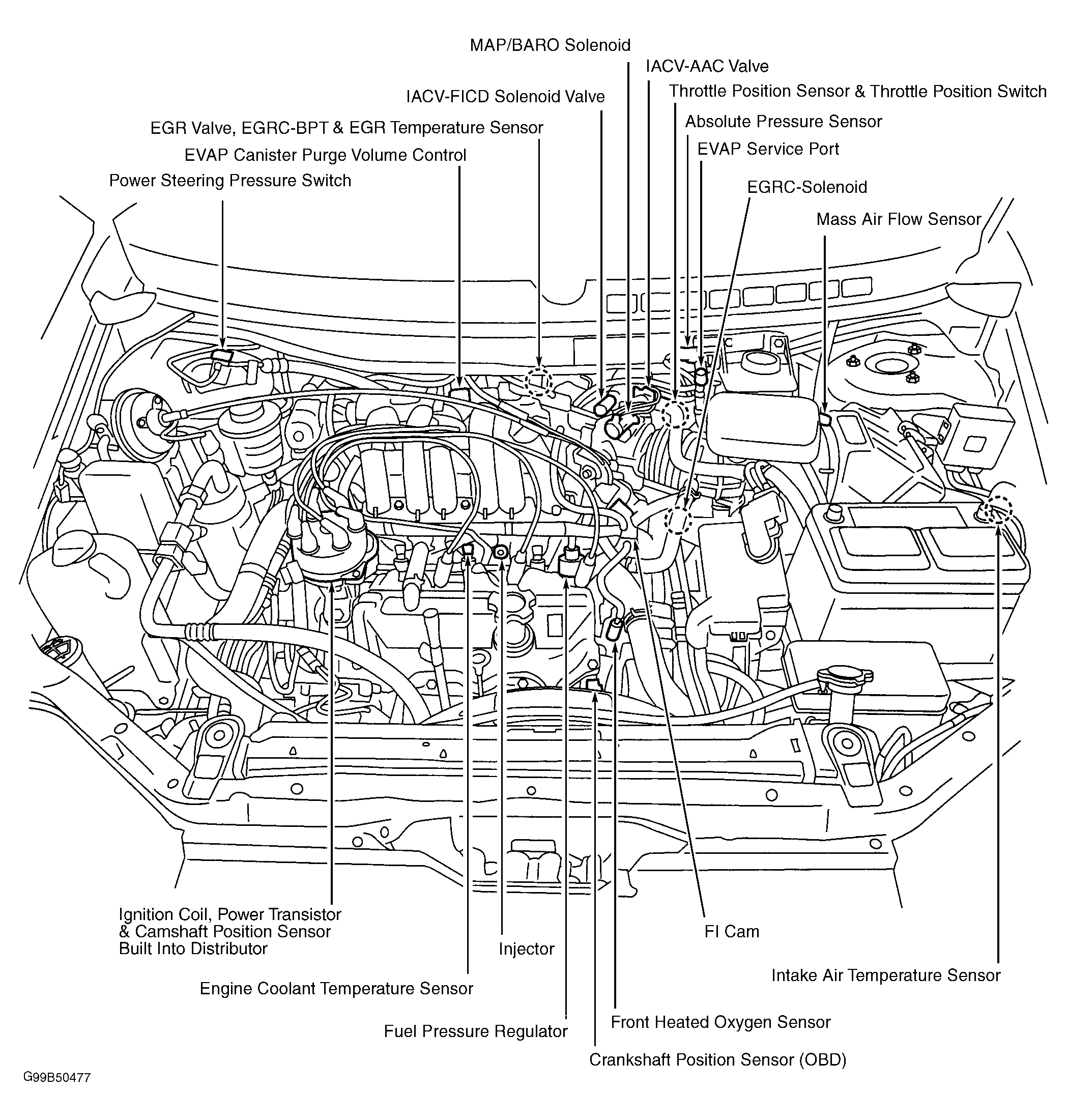

Fig 6: Identifying Underhood Engine Performance Component Locations (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Underhood Engine Performance Component Locations (Sentra 1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

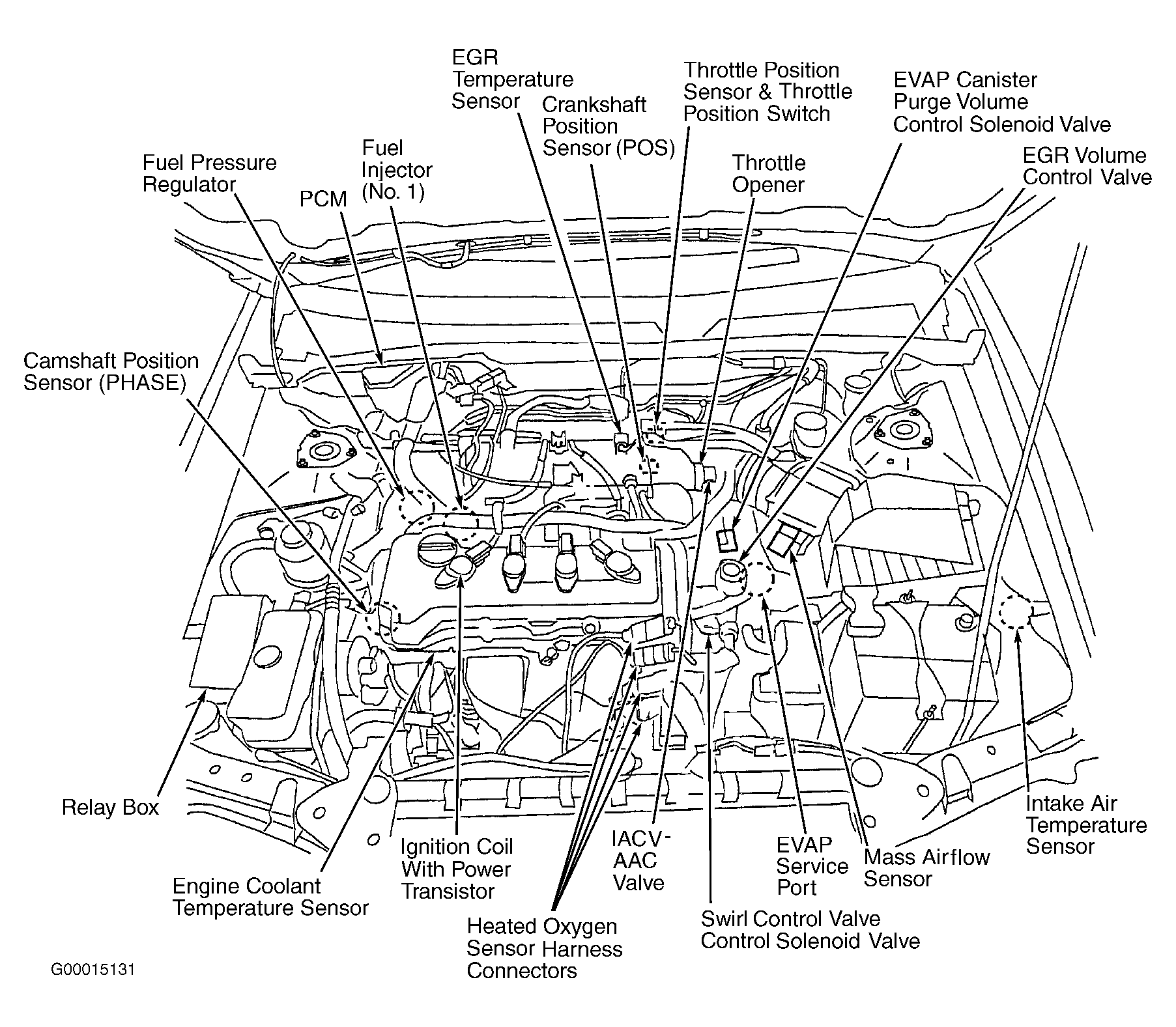

Fig 8: Identifying Underhood Engine Performance Component Locations (Sentra 2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.
