Resetting Limit Switch

NOTE: Only manually operate power window. Do not use AUTO feature.

Fully close window. Press and hold reset switch on window regulator. See Fig 1 . Fully lower window. Release reset switch. Fully close window.

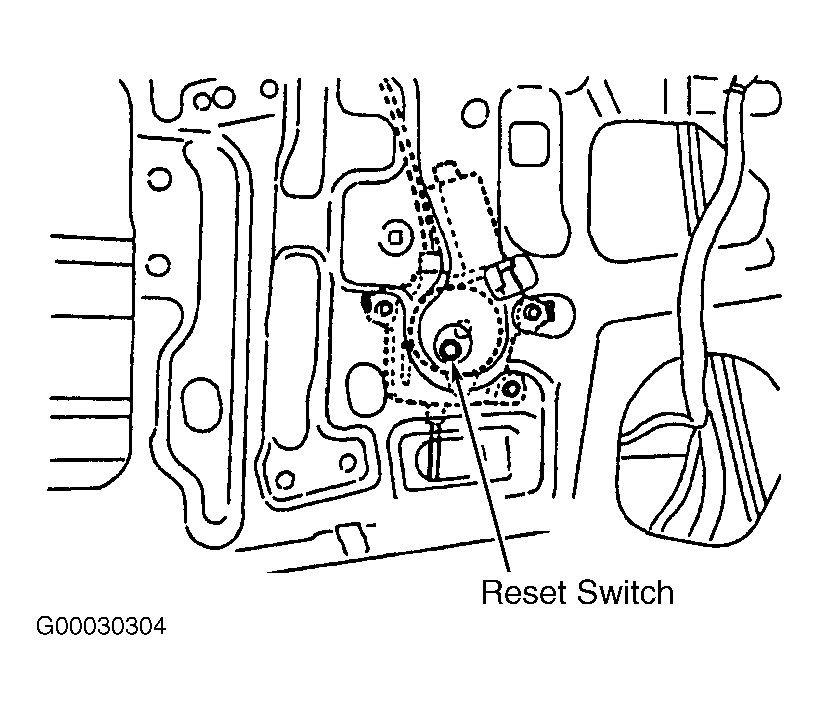

Fig 1: Locating Power Window Regulator Reset Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying BCM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
