Interior Lamp Operation Check

Check if the interior lamp switch is in the "ON" position and the lamp illuminates.

Does interior lamp illuminate?

1. Yes : GO TO 2.
2. No : Check the following.
   • Harness for open or short between smart entrance control unit and interior lamp
   • Interior lamp

With CONSULT-II

1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "INT/IGN ILLUM" and touch "ON".

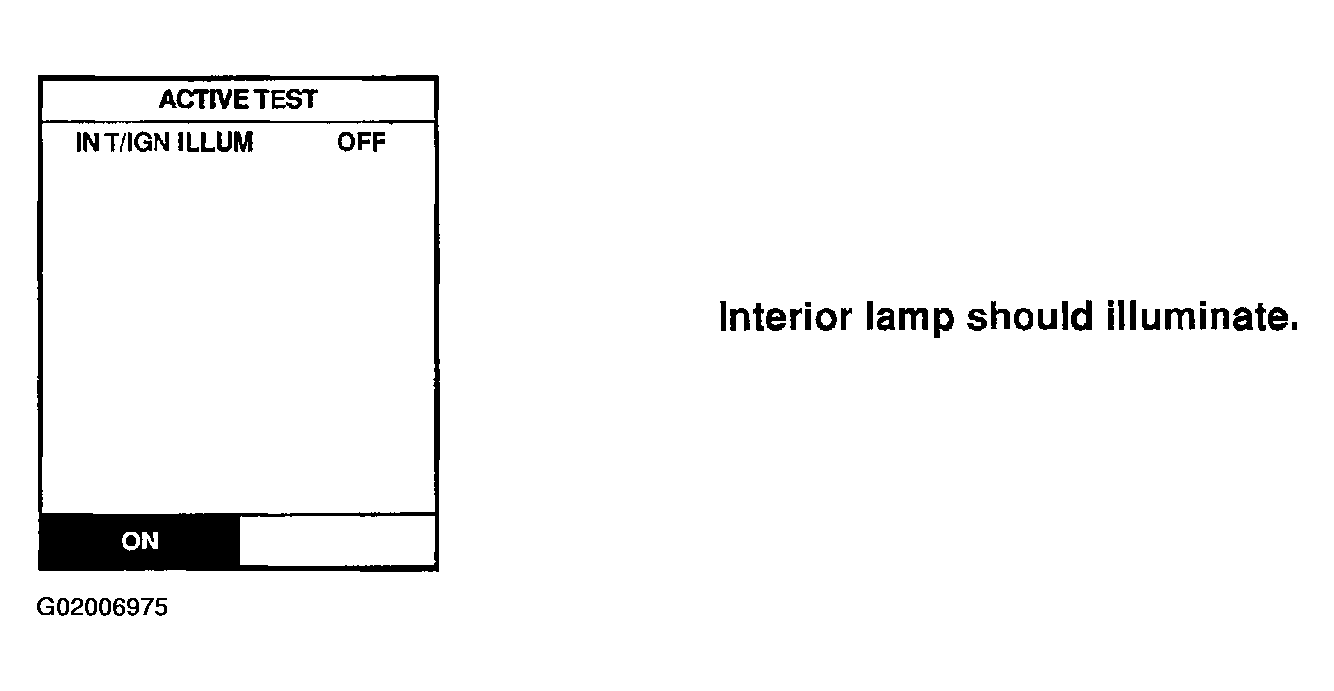

Fig 1: Checking Interior Lamp Operation With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Push unlock button of keyfob with all doors closed and driver's door locked, and check voltage between smart entrance control unit harness connector M144 terminal 31 (R) and ground.

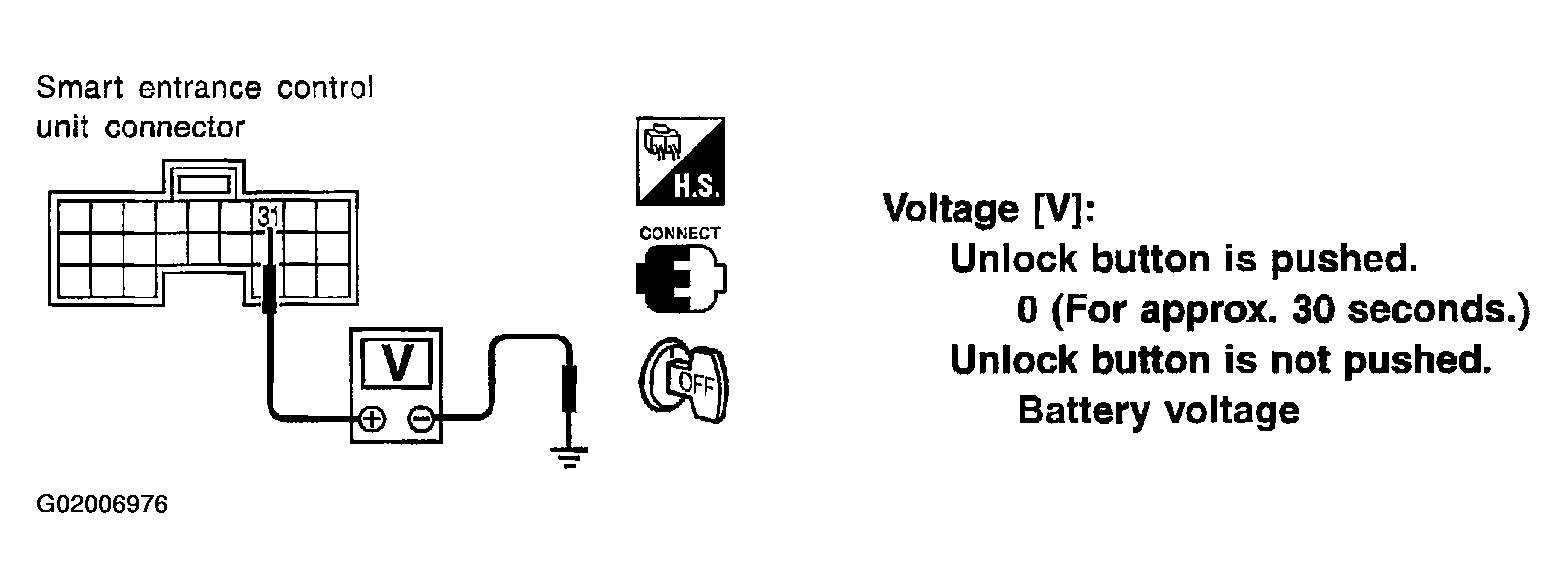

Fig 2: Checking Interior Lamp Operation Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in "WIRING DIAGRAM - KEYLES -  ".

OK or NG

1. OK : System is OK.
2. NG : Check harness open or short between smart entrance control unit and interior lamp.
