Symptom Chart

NOTE:
  • Always check keyfob battery before replacing keyfob.
  • The panic alarm operation and trunk lid opener operation of keyfob system do not activate with the ignition key inserted in the ignition key cylinder.

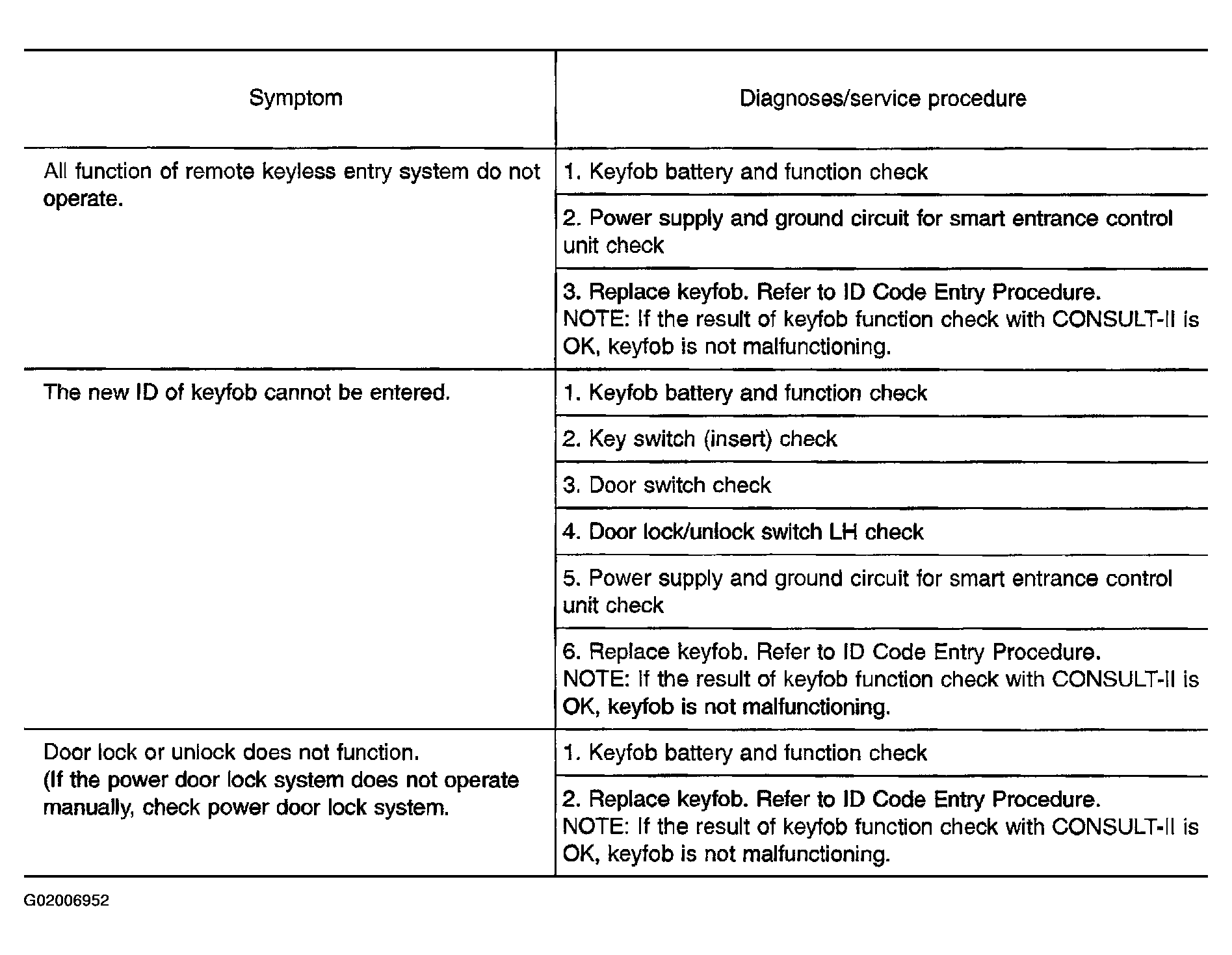

Fig 1: Trouble Symptom Diagnosis (1 Of 2)
G02006952Courtesy of NISSAN MOTOR CO., U.S.A.

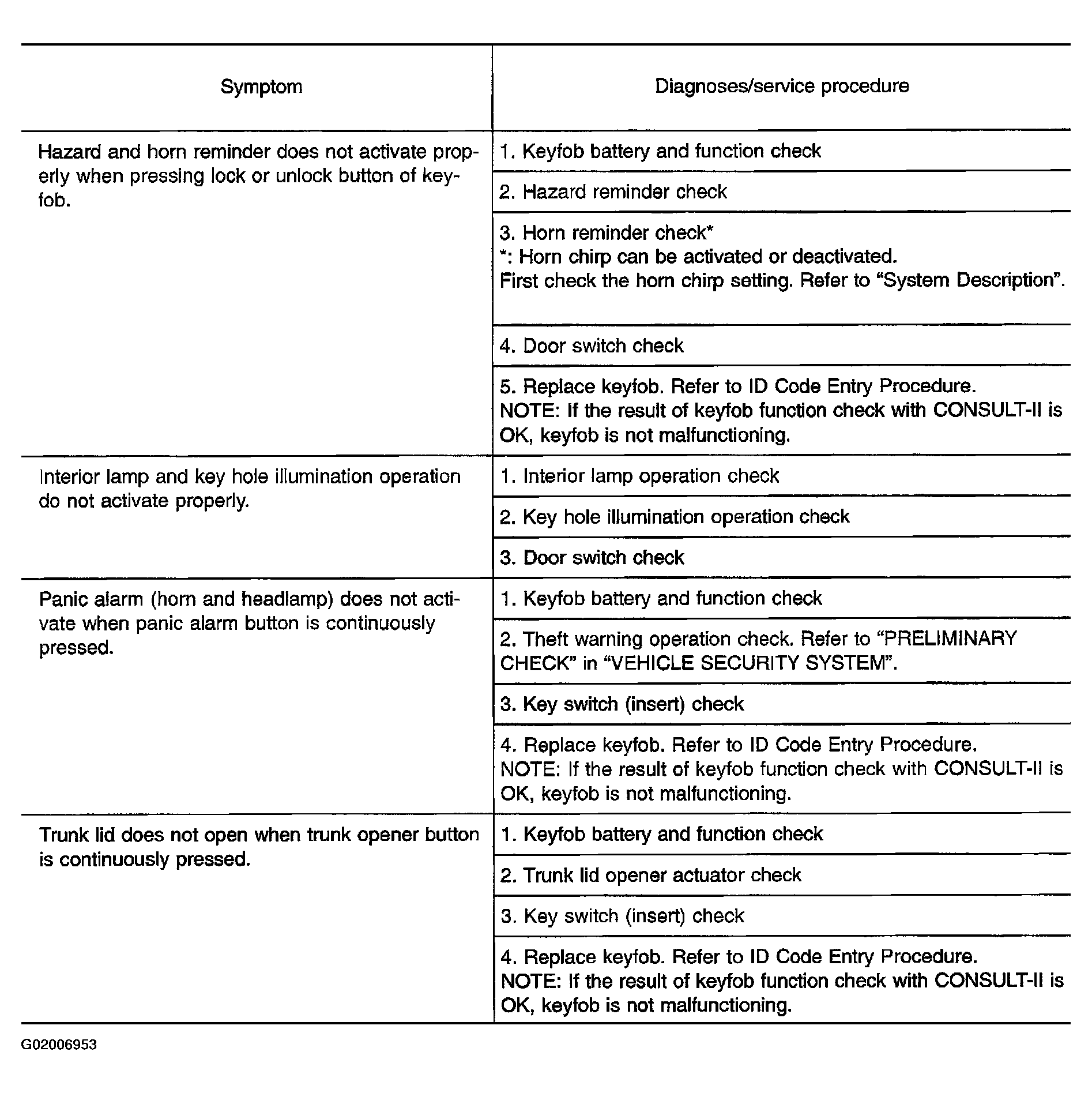

Fig 2: Trouble Symptom Diagnosis (2 Of 2)
G02006953Courtesy of NISSAN MOTOR CO., U.S.A.
