Component Locations

COMPONENT LOCATIONS

Component Location
Circuit Breaker (1) Below Driver's Side Of Instrument Panel
Fusible Link "I" Underhood Power Distribution Box, Next To Battery
Power Window Main Switch Driver's Door Control Panel
Power Window Relay Beside Instrument Panel Fuse Box
Power Window Sub-Switches In Each Passenger Door
(1) For circuit braeker location, see Fig 1 .

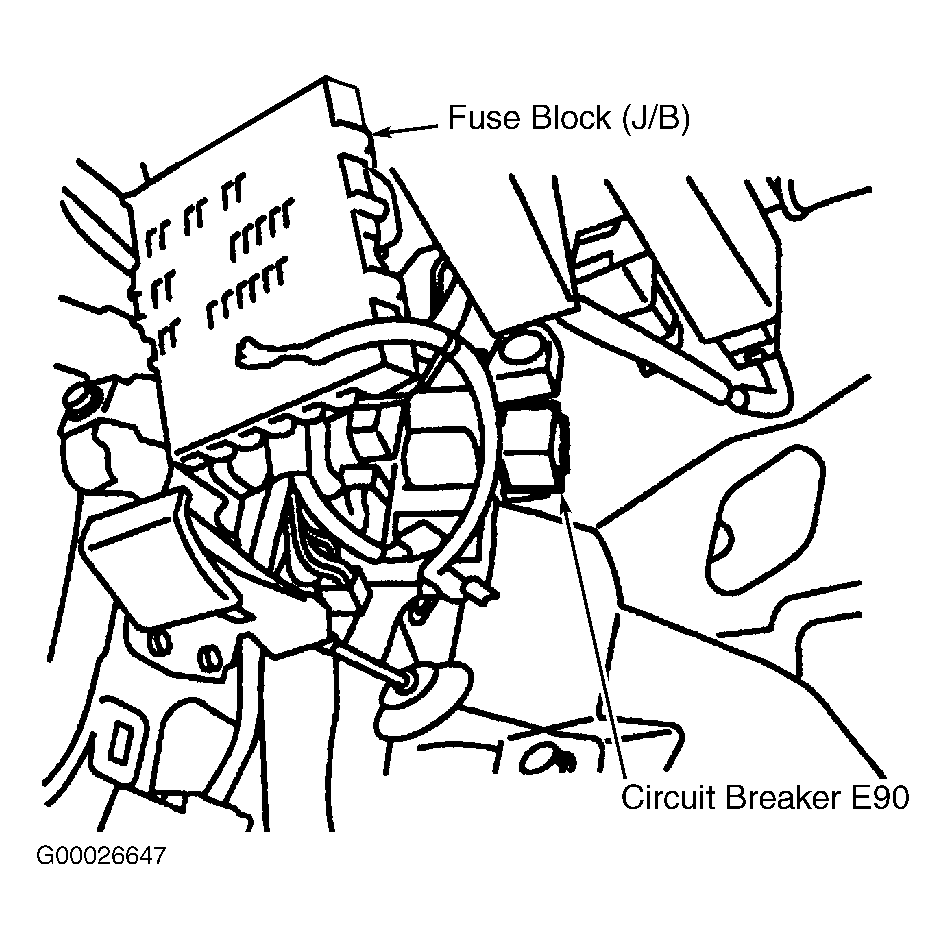

Fig 1: Identifying Power Window Circuit Breaker Location
G00026647Courtesy of NISSAN MOTOR CO., U.S.A.
