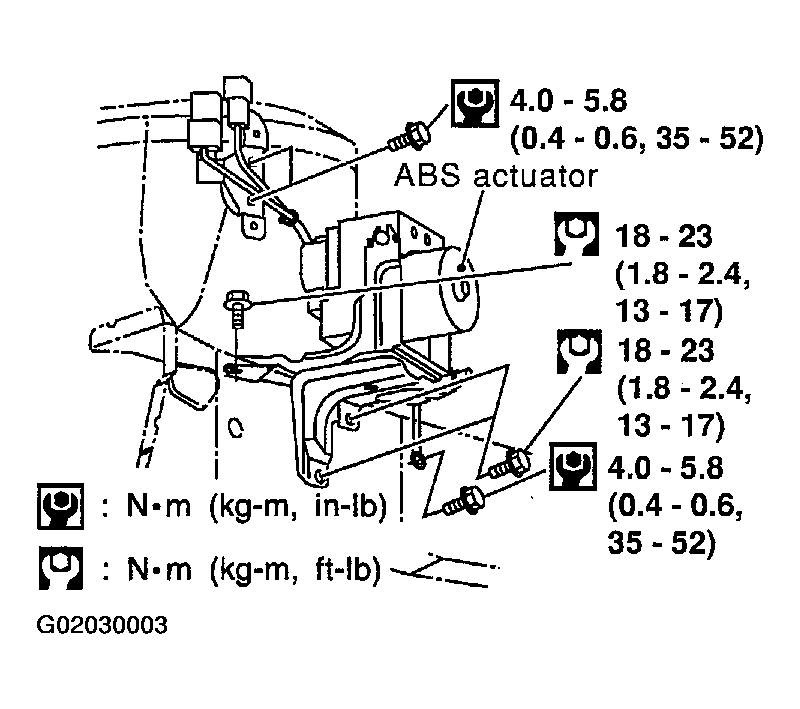

Abs Actuator And Electric Unit: Removal
- Disconnect battery cable.
- Drain brake fluid. Refer to BLEEDING BRAKE SYSTEM in DISC article .
- Remove air cleaner and duct.
- Apply different colored paint to each pipe connector and actuator to prevent incorrect connection.
- Disconnect harness connectors, brake pipes and remove fixing nuts and actuator ground cable.
