System Description
>>
For TCS Models
>>
Input/Output Signal Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input/Output Signal Chart

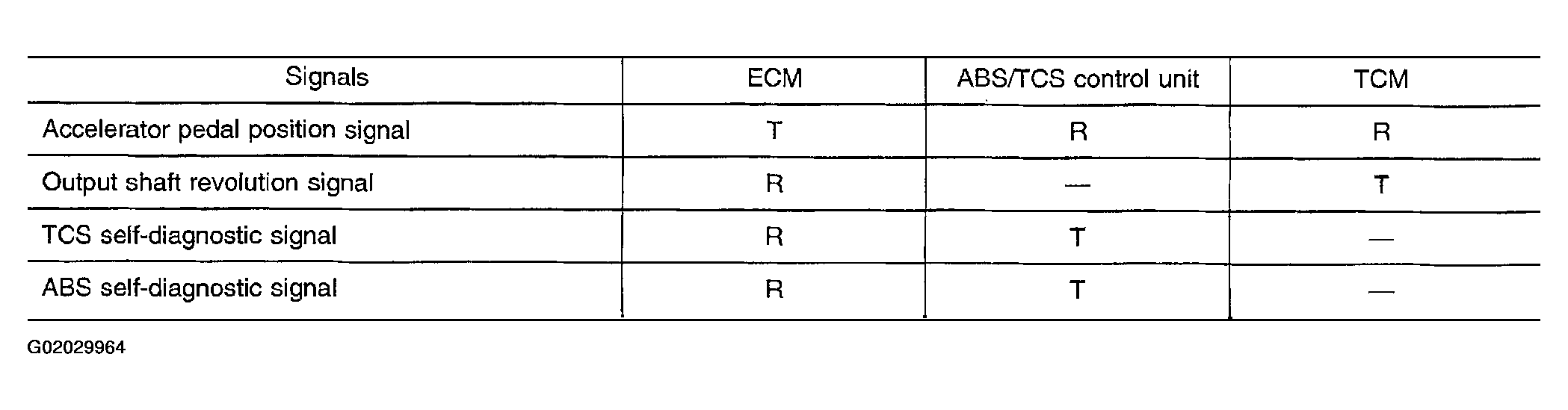

Fig 1: Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
