ABS Hydraulic Circuit

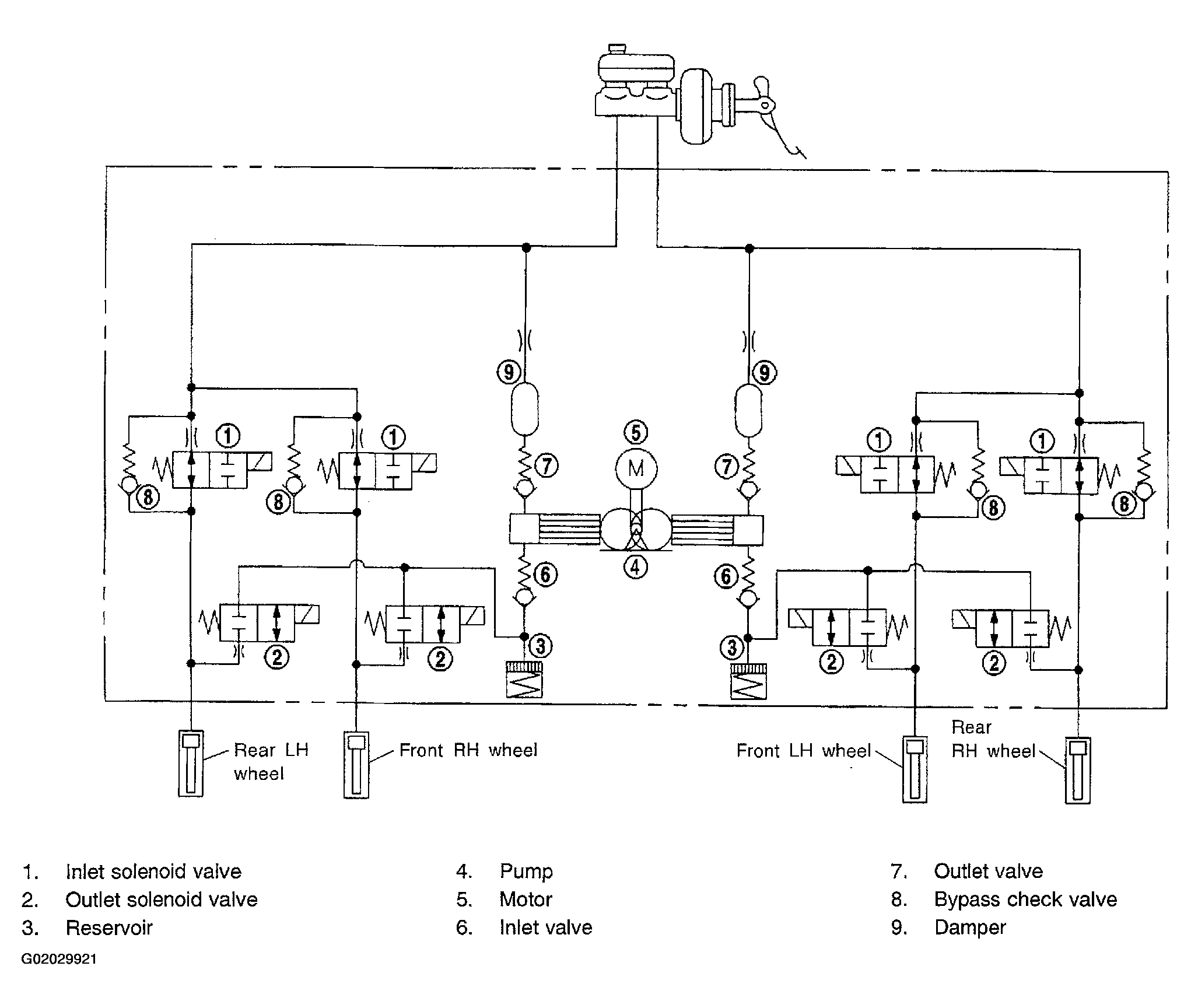

Fig 1: ABS Hydraulic Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
