Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

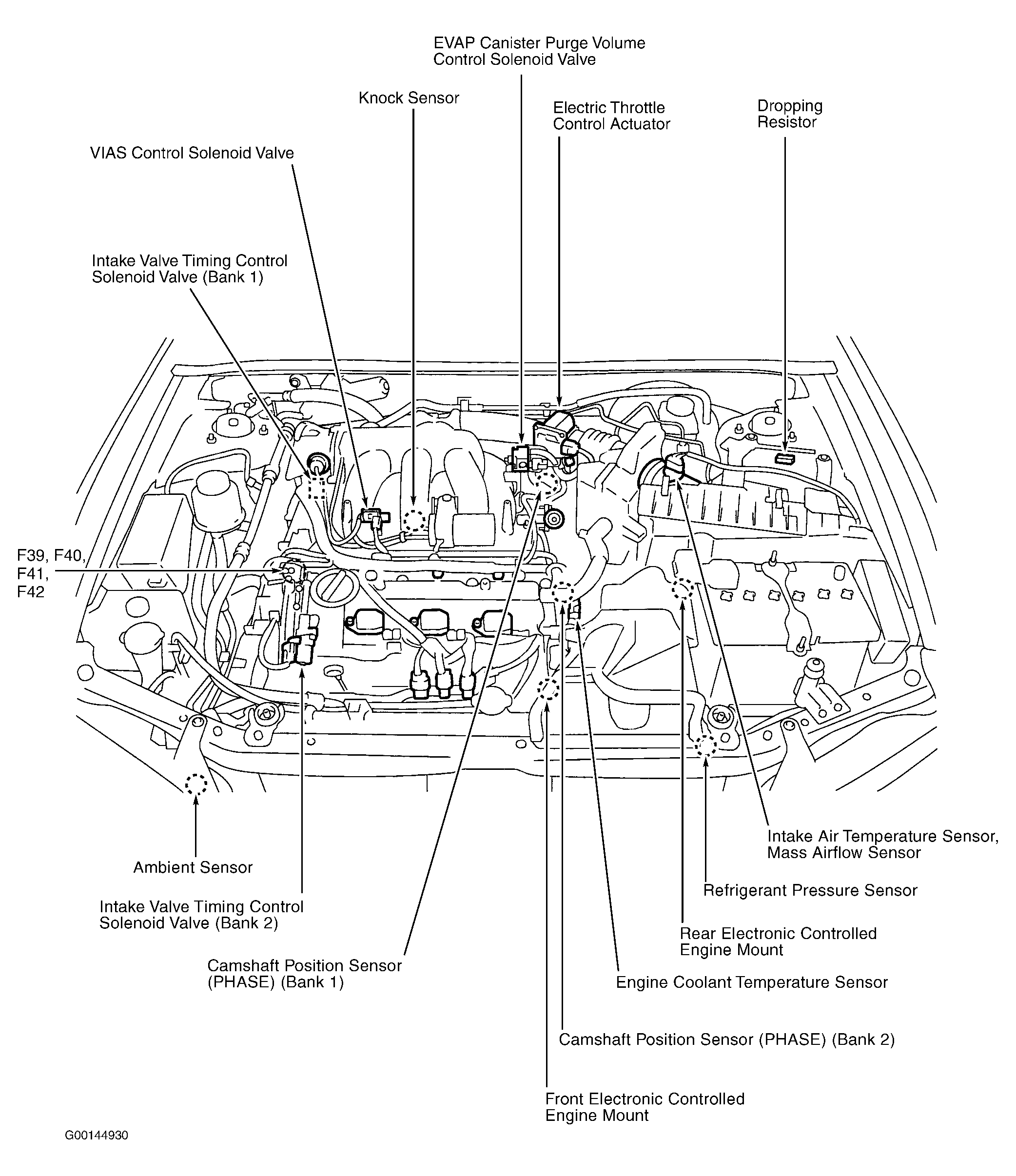

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

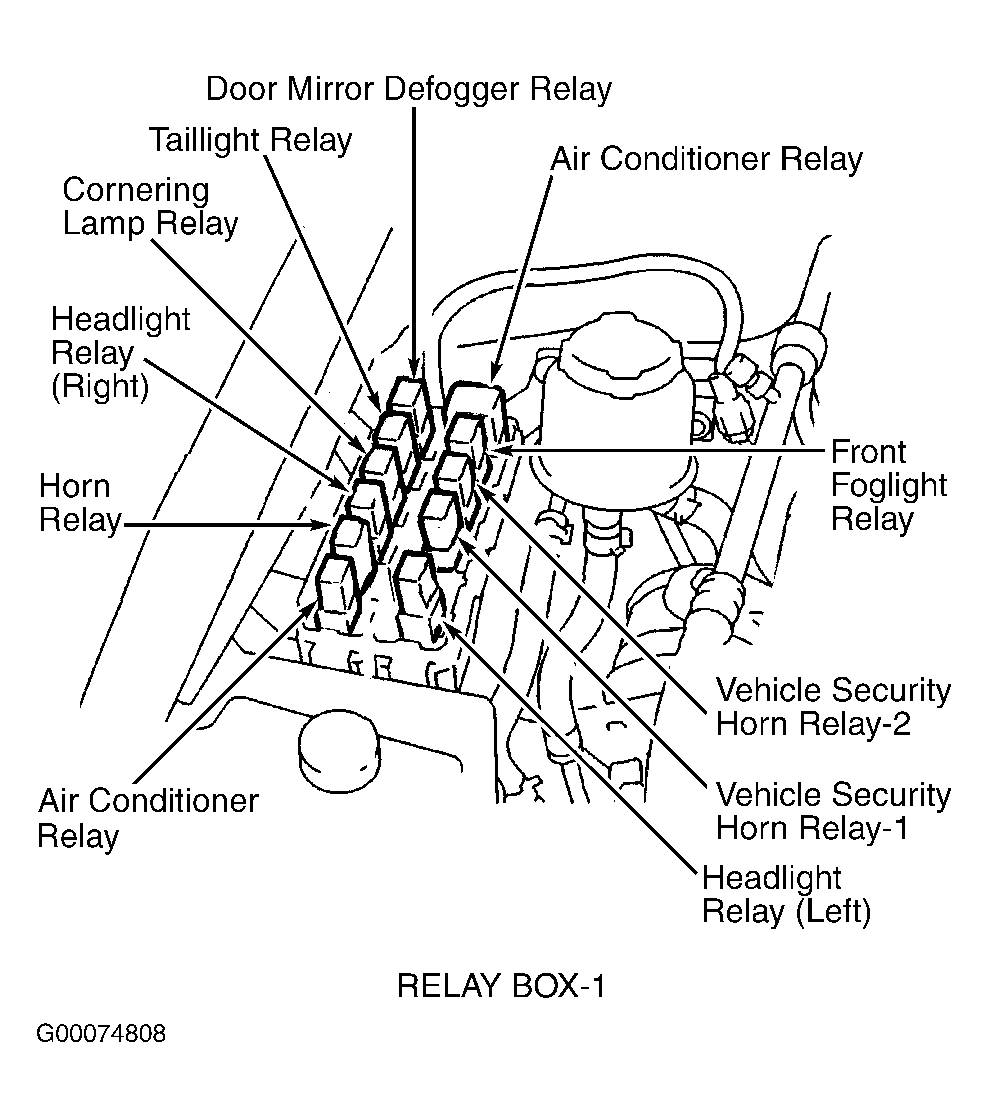

Fig 3: Relay Box-1

Courtesy of NISSAN MOTOR CO., U.S.A.

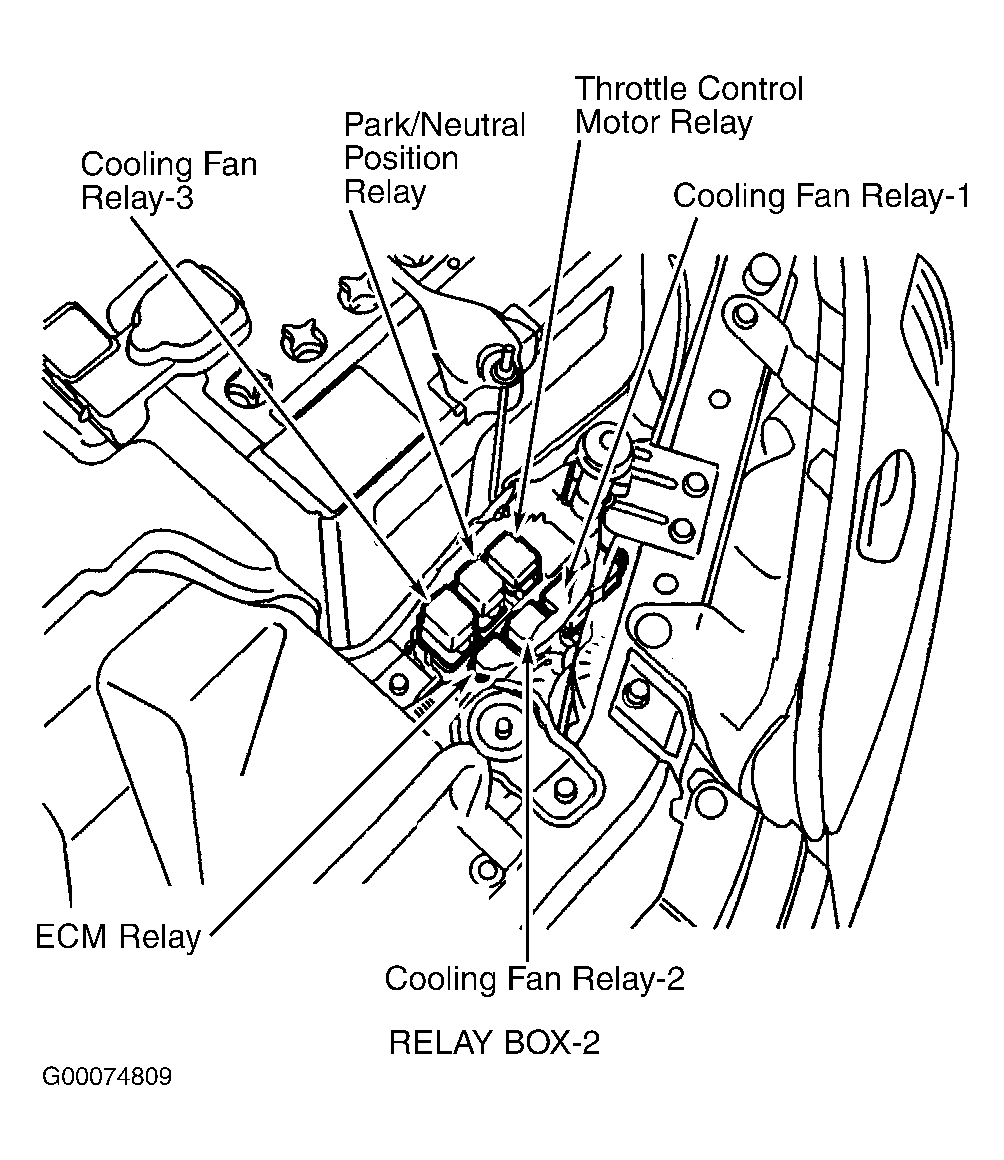

Fig 4: Relay Box-2

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Passenger's Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

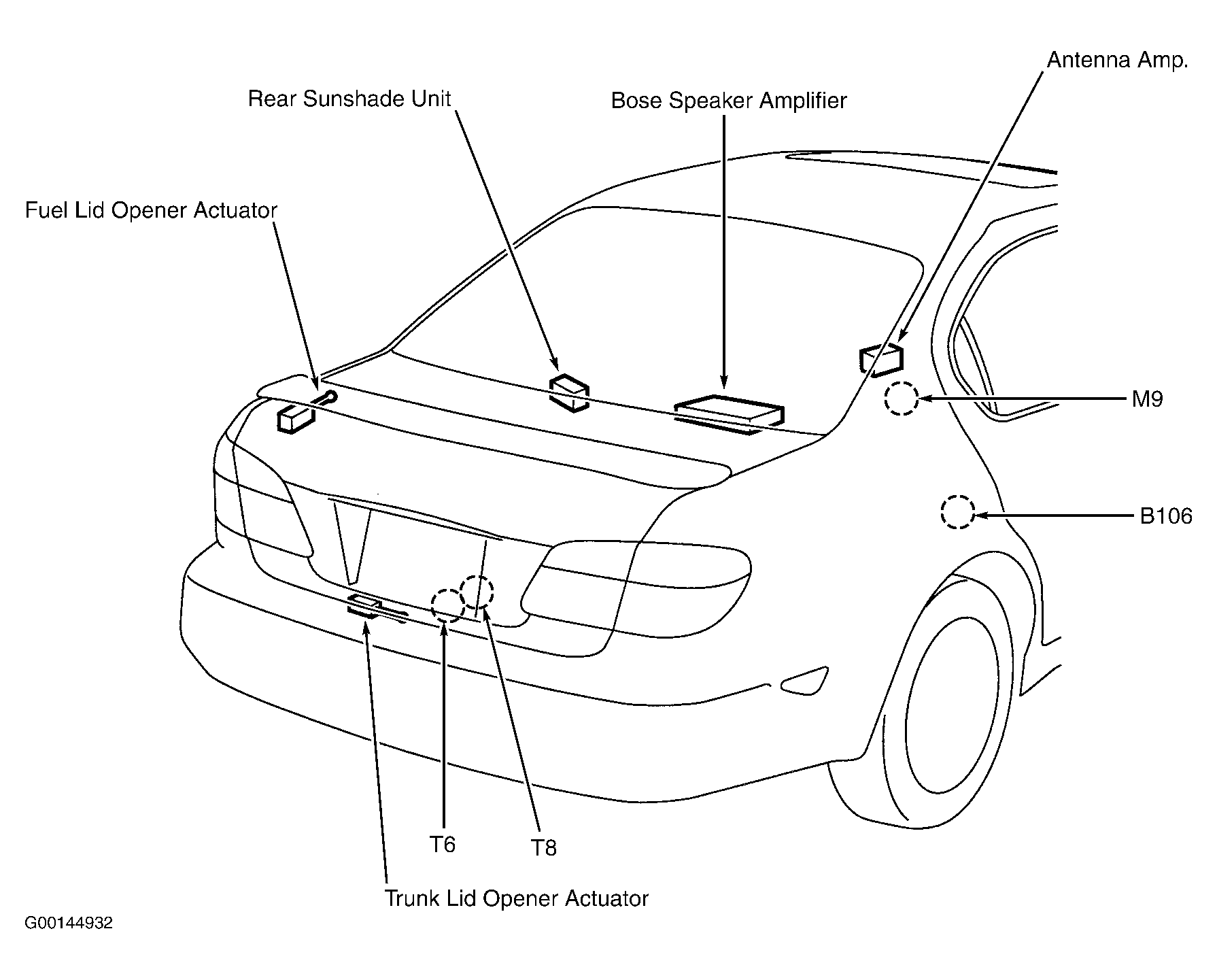

Fig 6: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

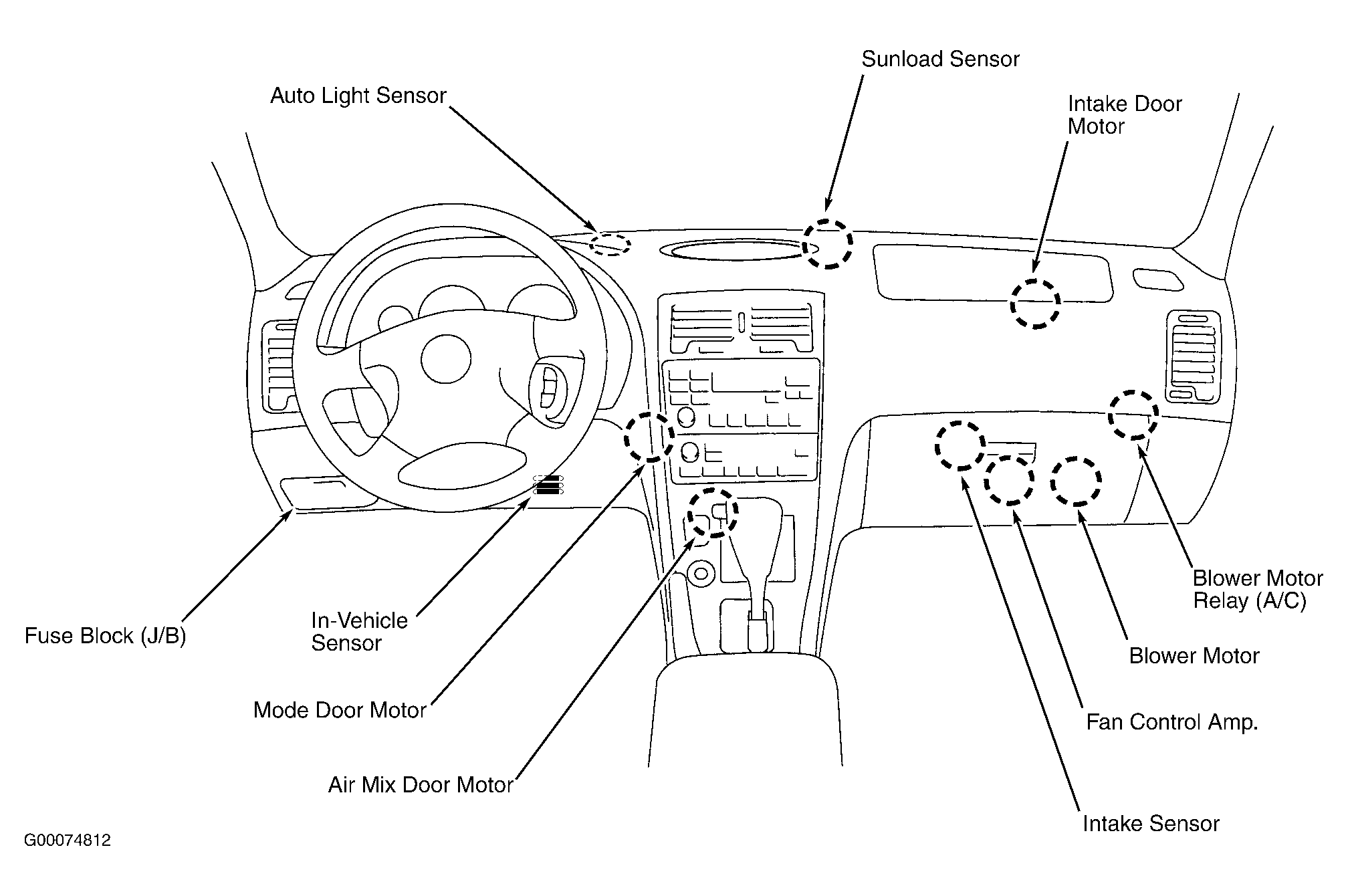

Fig 7: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.
