Engine Compartment Harness

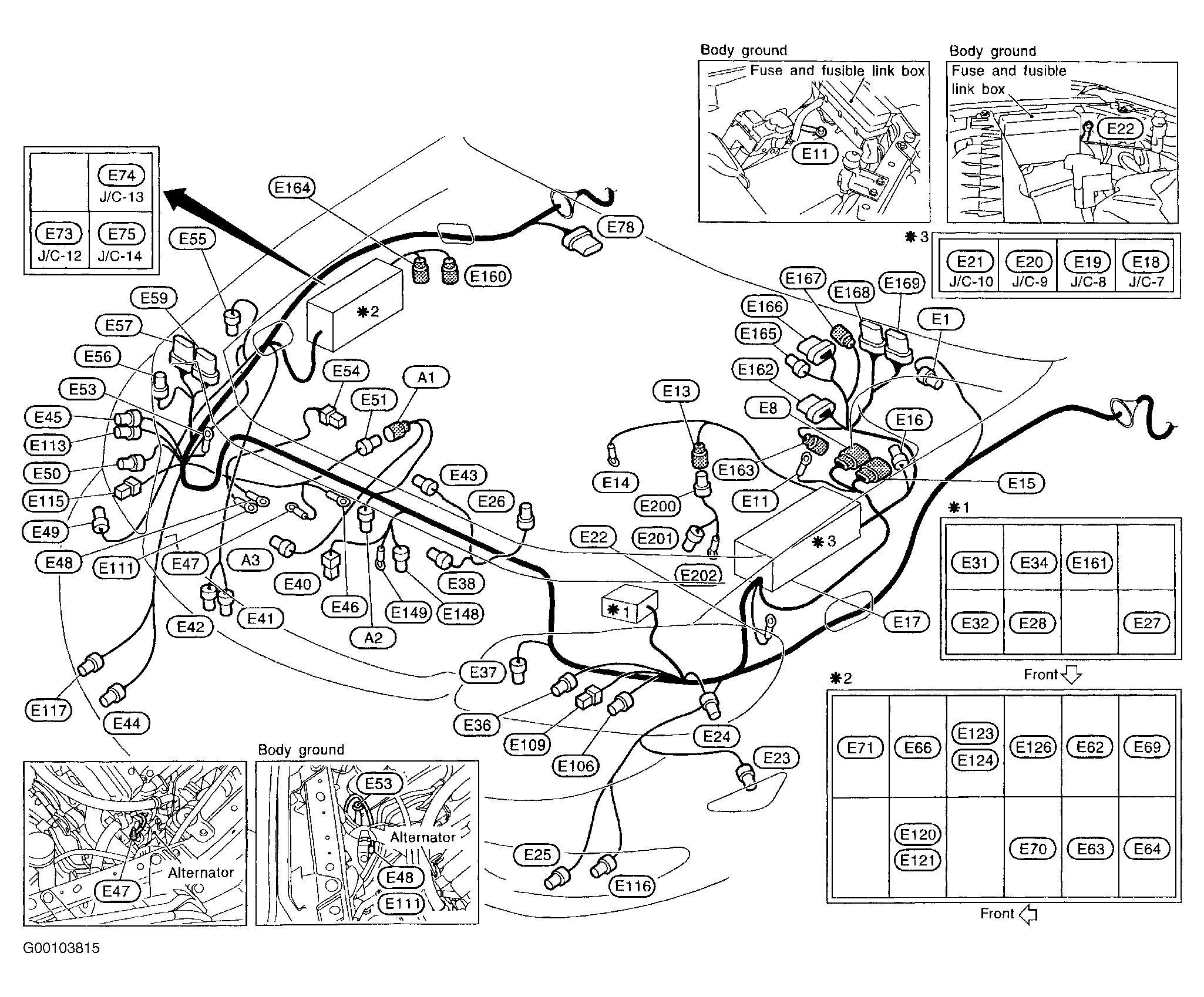

Fig 1: Identifying Engine Compartment Harness Routing (I35)
G00103815Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE COMPARTMENT HARNESS CONNECTOR IDENTIFICATION (I35)

Connector Name (1) Color Number Of Pins Description
Engine Compartment Harness
E1 Gray 2 Brake Fluid Level Switch
E8 Gray 8 To F17
E11 ..... ..... Body Ground
E13 Gray 1 To E200
E14 ..... ..... Battery - Fusible Link (120-Amp)
E15 Black 8 To F18
E16 Gray 2 Dropping Resistor
E17 ..... ..... Fuse & Fusible Link Box
E18 Gray 6 Joint Connector No. 7
E19 Gray 6 Joint Connector No. 8
E20 White 6 Joint Connector No. 9
E21 White 6 Joint Connector No. 10
E22 ..... ..... Body Ground
E23 Brown 2 Left Front Side Marker Light
E24 Brown 2 Left Front Turn Signal
E25 Black 2 Left Front Fog Light
E26 Gray 2 Hood Switch
E27 Brown 6 Cooling Fan Relay No. 1
E28 Brown 6 Cooling Fan Relay No. 2
E31 Brown 6 Cooling Fan Relay No. 3
E32 Brown 6 ECM Relay
E34 Gray 6 Park/Neutral Position Relay
E36 Black 2 Left High Beam Headlight
E37 Black 3 Refrigerant Pressure Sensor
E38 Gray 4 Cooling Fan Motor No. 1
E40 Black 1 Horn (High)
E41 Gray 2 Front Washer Motor
E42 Brown 2 Washer Level Switch
E43 Gray 4 Cooling Fan Motor No. 2
E44 Black 2 Right Front Fog Lamp
E45 Brown 2 Right Front Turn Signal
E46 ..... ..... Generator
E47 ..... ..... Generator
E48 ..... ..... Body Ground
E49 Brown 2 Right Front Side Marker
E50 Black 2 Right Headlight (High Beam)
E51 Gray 3 To A1
E53 ..... ..... Body Ground
E54 Black 1 Vehicle Security Horn
E55 Black 2 Ambient Sensor
E56 Gray 4 Daytime Light Control Unit (Canada)
E57 Gray 6 Daytime Light Control Unit (Canada)
E59 Gray 8 Daytime Light Control Unit (Canada)
E62 Blue 4 Tail Lamp Relay
E63 Blue 4 Vehicle Security Horn Relay No. 2
E64 Blue 4 Front Fog Lamp Relay
E66 White 3 Horn Relay
E69 Blue 4 Door Mirror Defogger Relay (If Equipped)
E70 Blue 4 Vehicle Security Horn Relay No. 1
E71 Blue 4 A/C Relay
E73 White 6 Joint Connector No. 12
E74 White 6 Joint Connector No. 13
E75 White 6 Joint Connector No. 14
E78 Gray 6 Front Wiper Motor
E106 Gray 2 Left Headlight (Low Beam)
E109 Black 2 Left Parking Lamp
E111 ..... ..... Body Ground
E113 Gray 2 Right Headlight (Low Beam)
E115 Black 2 Right Parking Lamp
E116 Brown 2 Left Cornering Lamp
E117 Brown 2 Right Cornering Lamp
E120 Brown 6 Left Headlight Relay (Canada)
E121 Brown 6 Left Headlight Relay (USA)
E123 Brown 6 Right Headlight Relay (Canada)
E124 Brown 6 Right Headlight Relay (USA)
E126 Blue 4 Cornering Lamp Relay
E148 Yellow 2 Crash Zone Sensor
E149 ..... ..... Body Ground
E160 Gray 2 Right Front Wheel Sensor (With VDC)
E161 Blue 4 Throttle Control Motor Relay
E162 Black 31 ABS/TCS Control Unit (With TCS)
E163 Blue 2 Left Front Wheel Sensor (With TCS)
E164 Gray 2 Right Front Wheel Sensor (With TCS)
E165 Black 2 VDC Relay Box (With VDC)
E166 Black 8 VDC Relay Box (With VDC)
E167 Brown 2 Left Front Wheel Sensor (With VDC)
E168 Black 8 ABS Actuator (With VDC)
E169 Gray 8 ABS Actuator (With VDC)
Engine Compartment Sub-Harness
E200 Gray 1 To E13
E201 Gray 1 Starter Motor
E202 ..... ..... Starter Motor
Generator Harness
A1 Gray 3 To E51
A2 Gray 4 Generator
A3 Black 1 Compressor
(1) For locations, see Fig 1 .

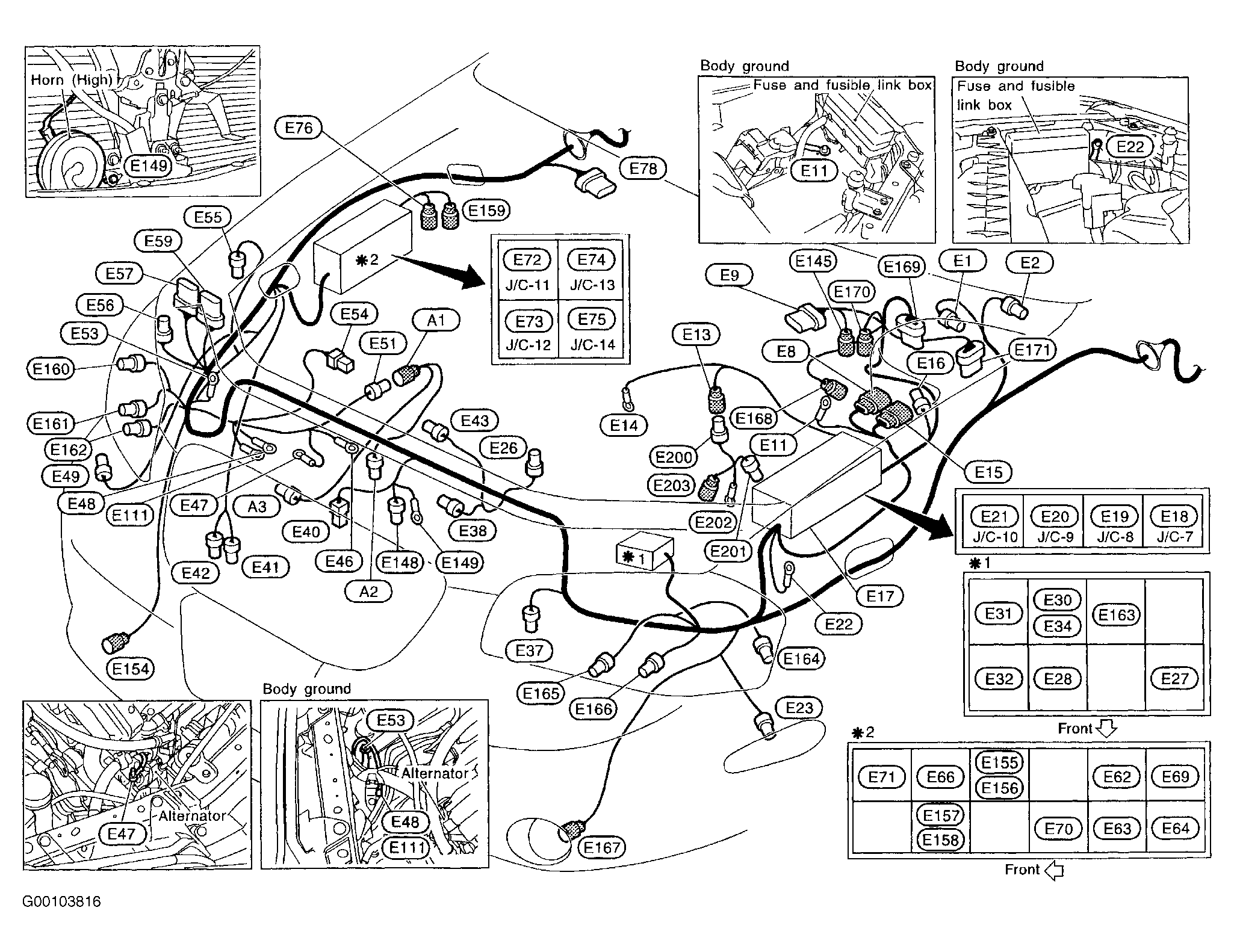

Fig 2: Identifying Engine Compartment Harness Routing (Maxima)
G00103816Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE COMPARTMENT HARNESS CONNECTOR IDENTIFICATION (MAXIMA)

Connector Name (1) Color Number Of Pins Description
Engine Compartment Harness
E1 Gray 2 Brake Fluid Level Switch
E8 Gray 8 To F17
E9 Gray 30 ABS Actuator & Electric Unit (With M/T)
E11 ..... ..... Body Ground
E13 Gray 1 To E200
E14 ..... ..... Battery - Fusible Link (120-Amp)
E15 Black 8 To F18
E16 Gray 2 Dropping Resistor (With A/T)
E17 ..... ..... Fuse & Fusible Link Box
E18 Gray 6 Joint Connector No. 7
E19 Gray 6 Joint Connector No. 8
E20 White 6 Joint Connector No. 9
E21 White 6 Joint Connector No. 10
E22 ..... ..... Body Ground
E23 Gray 2 Left Front Side Marker Light
E26 White 2 Hood Switch
E27 Brown 6 Cooling Fan Relay No. 1
E28 Brown 6 Cooling Fan Relay No. 2
E30 Blue 4 Clutch Interlock Relay (With M/T)
E31 Brown 6 Cooling Fan Relay No. 3
E32 Brown 6 ECM Relay
E34 Gray 6 Park/Neutral Position Relay (With A/T)
E37 Black 3 Refrigerant Pressure Sensor
E38 Gray 4 Cooling Fan Motor No. 1
E40 Black 1 Horn (High)
E41 Gray 2 Front Washer Motor
E42 Brown 2 Washer Level Switch (If Equipped)
E43 Gray 4 Cooling Fan Motor No. 2
E44 Black 2 Right Front Fog Lamp
E46 ..... ..... Generator
E47 ..... ..... Generator
E48 ..... ..... Body Ground
E49 Gray 2 Right Front Side Marker
E51 Gray 3 To A1
E53 ..... ..... Body Ground
E54 Black 1 Vehicle Security Horn
E55 Black 2 Ambient Sensor
E56 Gray 4 Daytime Light Control Unit (Canada)
E57 Gray 6 Daytime Light Control Unit (Canada)
E59 Gray 8 Daytime Light Control Unit (Canada)
E62 Blue 4 Tail Lamp Relay
E63 Blue 4 Vehicle Security Horn Relay No. 2
E64 Blue 4 Front Fog Lamp Relay
E66 White 3 Horn Relay
E69 Blue 4 Door Mirror Defogger Relay (If Equipped)
E70 Blue 4 Vehicle Security Horn Relay No. 1
E71 Blue 4 A/C Relay
E73 White 6 Joint Connector No. 12
E74 White 6 Joint Connector No. 13
E75 White 6 Joint Connector No. 14
E76 Gray 2 Right Front Wheel Sensor (With M/T)
E78 Gray 6 Front Wiper Motor
E111 ..... ..... Body Ground
E145 Brown 2 Left Front Wheel Sensor (With M/T)
E148 Yellow 2 Crash Zone Sensor
E149 ..... ..... Body Ground
E154 Gray 2 Right Fog Lamp
E155 Brown 6 Right Headlight Relay (USA)
E156 Brown 6 Right Headlight Relay (Canada)
E157 Brown 6 Left Headlight Relay (USA)
E158 Brown 6 Left Headlight Relay (Canada)
E159 Gray 2 Right Front Wheel Sensor (With A/T)
E160 Brown 2 Right Front Turn Signal
E161 Gray 3 Right Headlight (Low Beam & Parking Light)
E162 Black 2 Right Headlight (High Beam)
E163 Blue 4 Throttle Control Motor Relay
E164 Brown 2 Left Front Turn Signal
E165 Gray 3 Left Headlight (Low Beam & Parking Light)
E166 Black 2 Left Headlight (High Beam)
E167 Gray 2 Left Fog Lamp
E168 Blue 2 Left Front Wheel Sensor (With TCS)
E169 Gray 30 ABS Actuator & Electric Unit (A/T Without TCS)
E170 Blue 2 Left Front Wheel Sensor (With A/T & ABS)
E171 Black 31 ABS/TCS Control Unit (With TCS)
Engine Compartment Sub-Harness
E200 Gray 1 To E13
E201 Gray 1 Starter Motor (With A/T)
E202 ..... ..... Starter Motor
E203 Gray 1 Starter Motor (With M/T)
Generator Harness
A1 Gray 3 To E51
A2 Gray 4 Generator
A3 Black 1 Compressor
(1) For locations, see Fig 2 .
